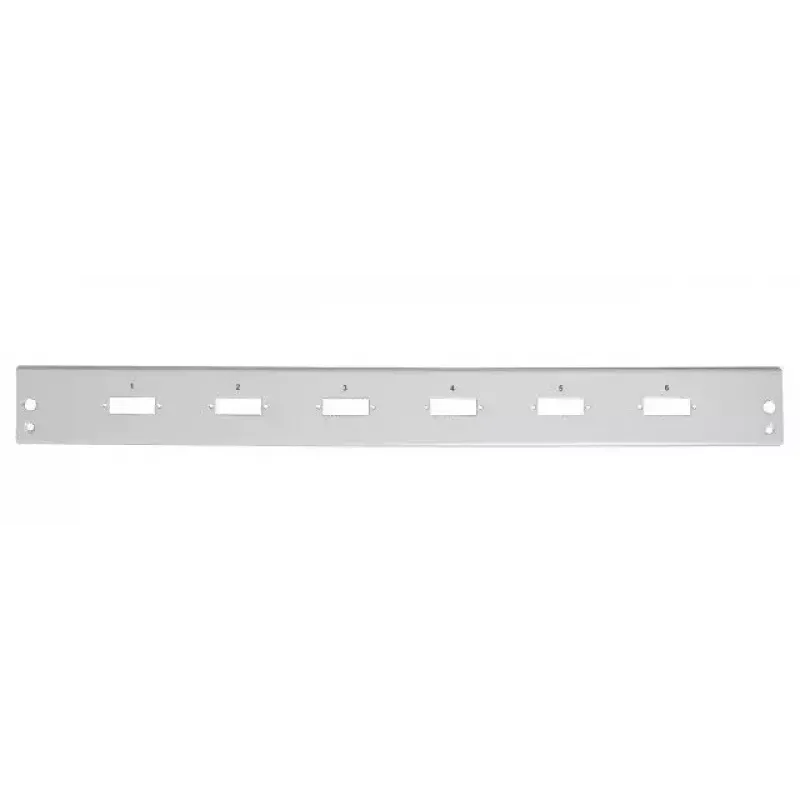

Patchpaneel-accessoire EFB Elektronik VSB-FP-6SC-D-V — 1U rackmontage voor SC-glasvezel (6 poorten)

EFB Elektronik VSB-FP-6SC-D-V is a 1U front panel accessory for fiber splice and breakout boxes, offering SC Duplex and LC Quad breakout options. The panel is designed for rack mounting and supports horizontal shift of breakouts to simplify cable routing and access in standard 19-inch racks.

Advantages

The front panel supports both SC Duplex and LC Quad connectors, fits a 1U rack space and provides horizontally shifted breakouts to reduce cable congestion. Its design is compatible with common splice and breakout box installations and helps keep fiber connections organized.

Suitable for

• Fiber splice boxes in rack cabinets
• Fiber breakout installations requiring SC Duplex or LC Quad
• Data center patching and fiber distribution panels

Key specifications

• Brand: EFB Elektronik
• Model / MPN: VSB-FP-6SC-D-V
• EAN: 4049759228484
• Mounting: Rack mounting (1U)
• Cable type: Fiber (SC Duplex / LC Quad breakouts)
• Compatibility: Standard 1U splice and breakout boxes

How to use

Install the VSB-FP-6SC-D-V into a standard 19-inch rack occupying 1U of space. Secure the panel to the rack rails, route fiber cables to the horizontally shifted breakout ports, and terminate or connect SC Duplex or LC Quad connectors as required. Use appropriate fiber management practices to maintain bend radii and protect the terminations during installation.

Recommendations

For reliable performance, use with compatible splice/breakout boxes and follow fiber handling best practices: avoid sharp bends, secure cables to prevent strain, and label ports for easy identification.
