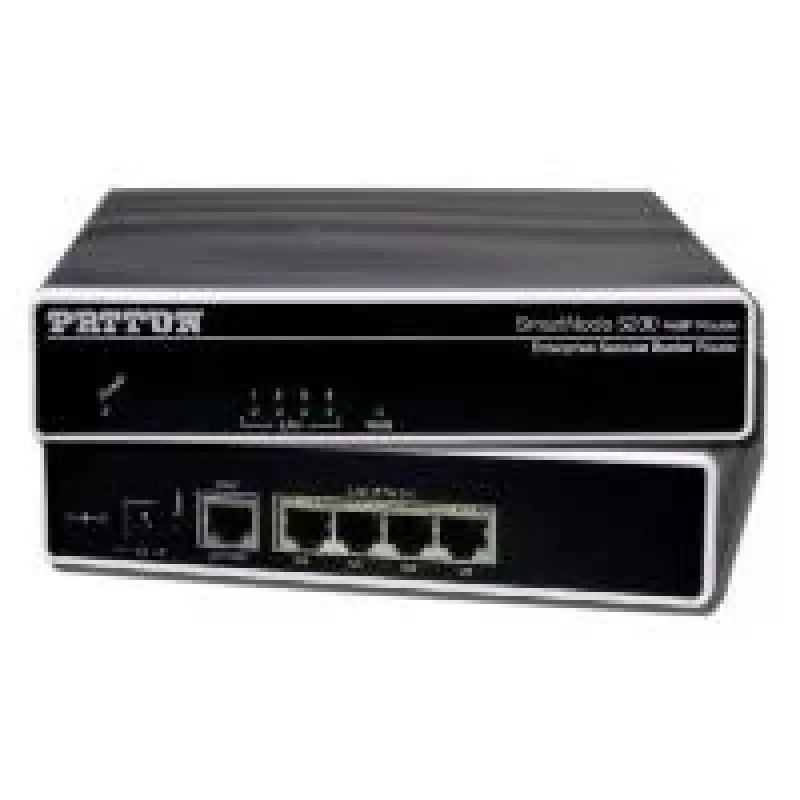

Patton SmartNode 5200 32-kanaals VoIP-gateway met 2 E1/T1/PRI-poorten (SN5200/32B/EUI)

In enterprise branch offices, the Patton SmartNode 5200 connects legacy PBX systems to modern SIP trunking services, enabling up to 32 simultaneous VoIP calls over two E1/T1/PRI lines. This VoIP gateway and session border controller bridges traditional telephony and IP networks, providing reliable voice connectivity for businesses migrating to VoIP.

Key specifications

• 32 concurrent VoIP channels
• 2 x E1/T1/PRI ports (RJ-48C)
• 2 x 10/100Base-T(X) Ethernet ports
• Supports SIP and H.323 protocols
• Voice codecs: G.711, G.723.1, G.729ab, G.726
• T.38 fax relay and G.168 echo cancellation
• QoS with IEEE 802.1p and DiffServ
• VLAN support (IEEE 802.1Q)
• Management via web GUI, CLI, SNMP, TFTP
• Security: stateful firewall, IPSec VPN, SRTP/TLS

Why choose it

The SmartNode 5200 delivers carrier-grade voice quality and robust security for enterprise VoIP deployments. Its dual E1/T1/PRI interfaces provide flexible PSTN connectivity, while advanced QoS and VLAN features ensure clear, prioritized voice traffic. With comprehensive management options and built-in security, it simplifies network integration and protects communications.

Ideal use cases

• Connecting legacy PBX systems to SIP trunks
• Enterprise branch office VoIP connectivity
• Session border control for secure SIP trunking
• Fax over IP with T.38 support

Good to know

The SmartNode 5200 supports external AC power (100-240V) and can be desktop or rack mounted. It measures 440 x 200 x 44 mm and weighs 2.5 kg, fitting standard 1U rack spaces.
