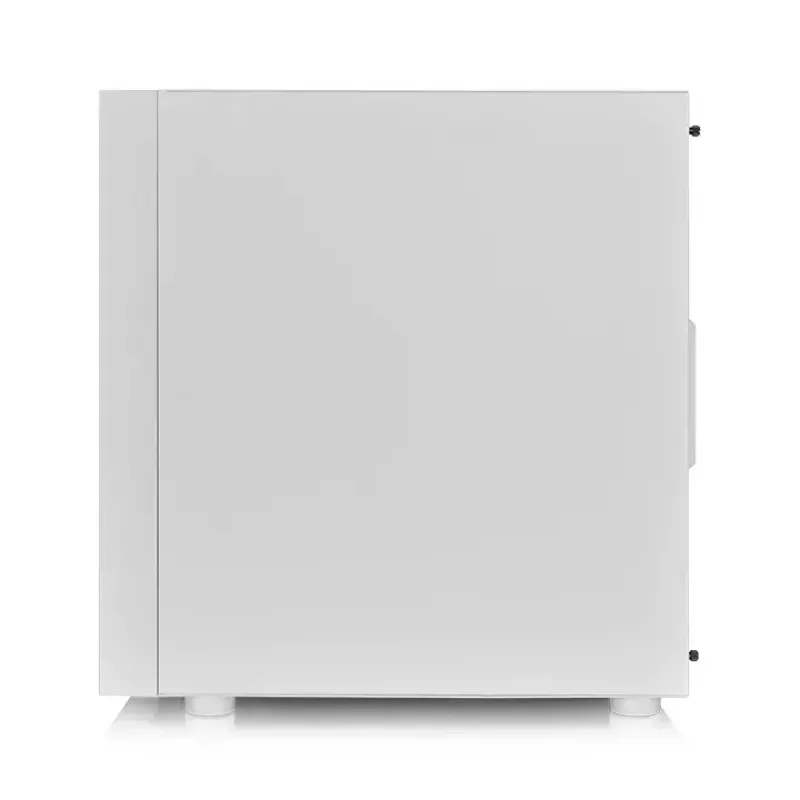

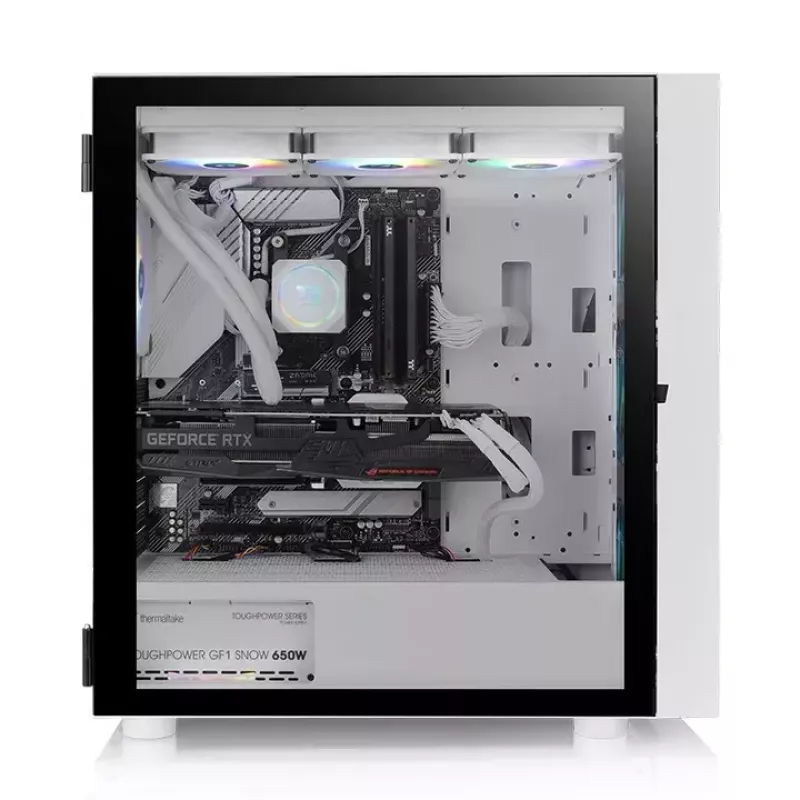

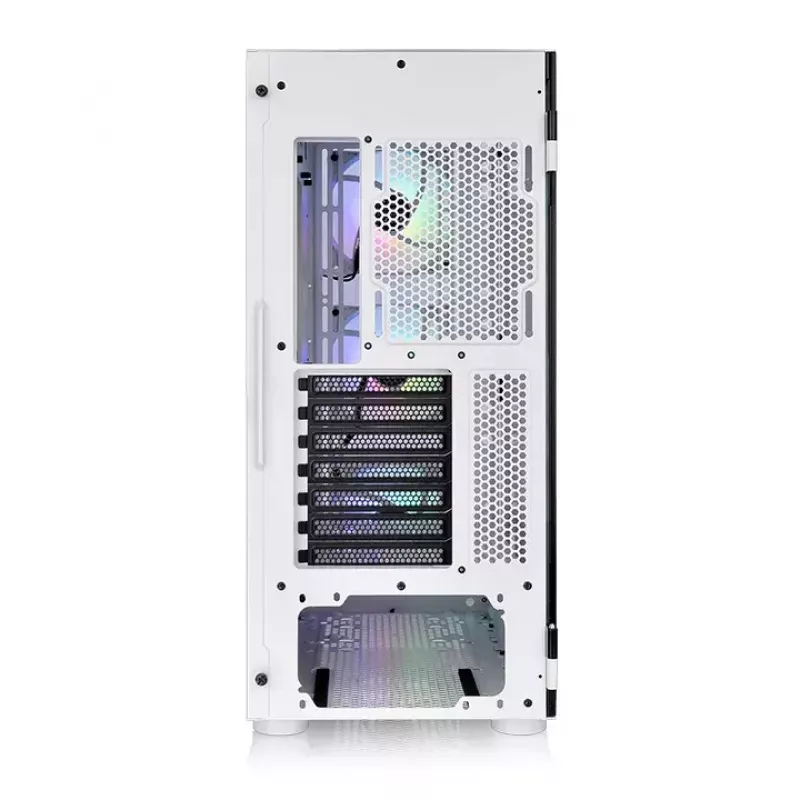

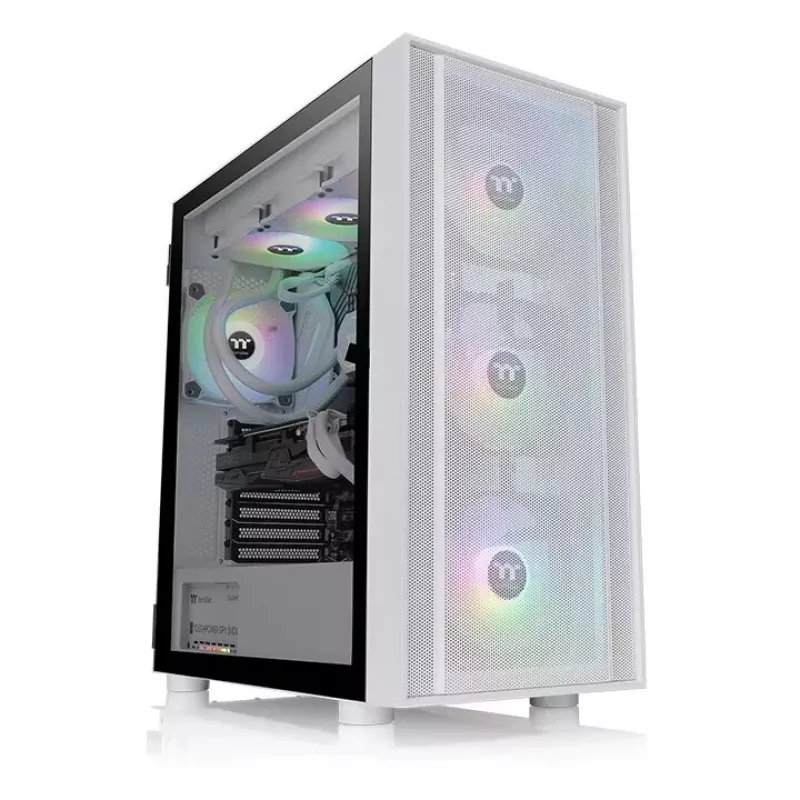

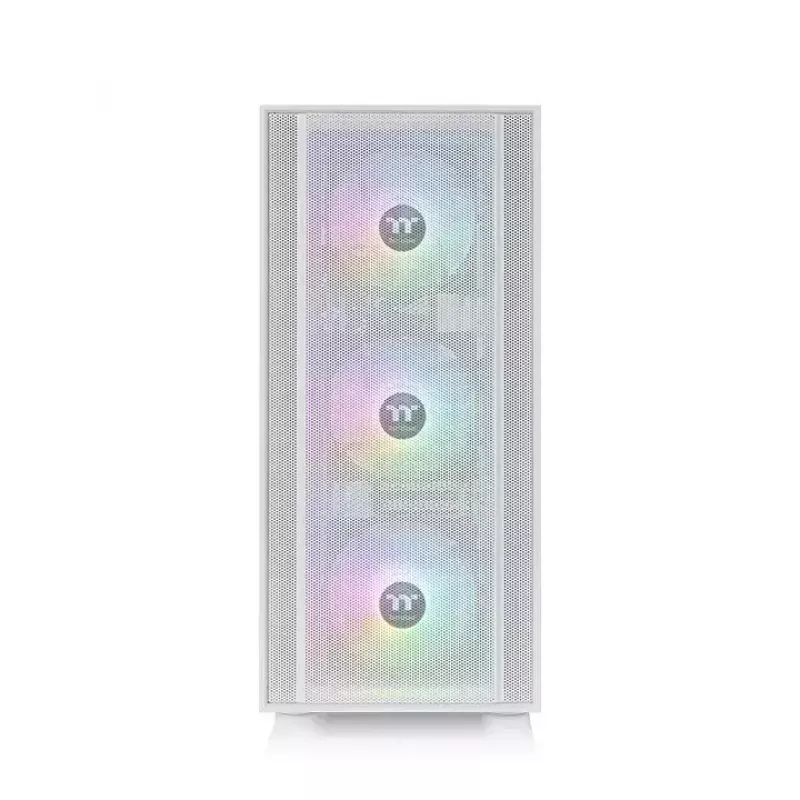

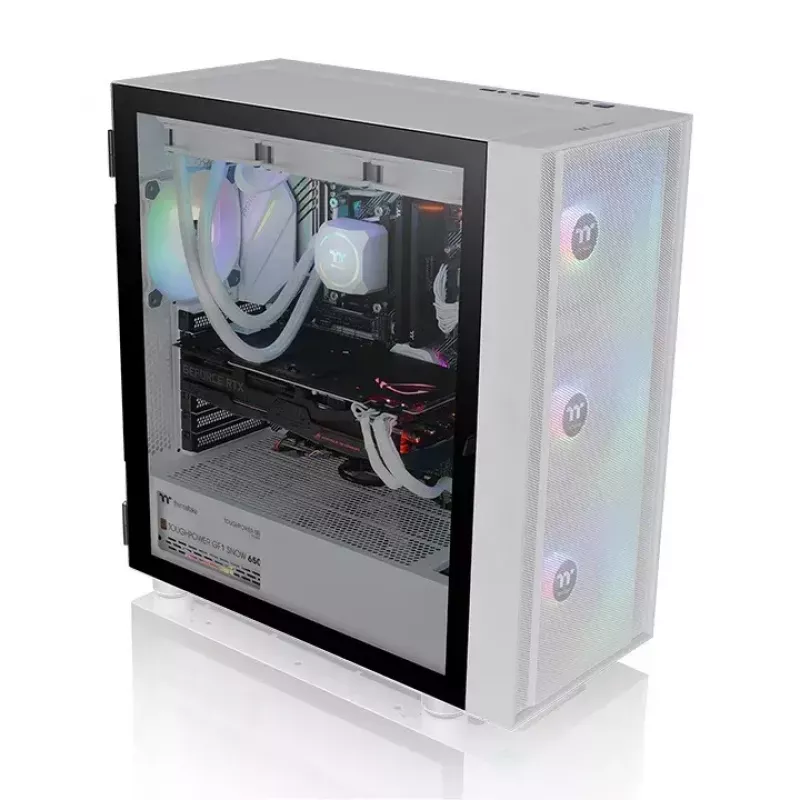

Pc-behuizing Thermaltake H570 TG ARGB midi tower wit

The Thermaltake H570 TG ARGB Snow mid-tower chassis supports Mini-ITX, Micro-ATX, ATX and up to E-ATX (12" x 13") motherboards and is designed for versatile desktop builds. The white chassis includes a large mesh front panel for improved airflow, a full-length PSU cover for neater cable management, and a 4 mm hinged tempered glass side panel to display components. Three pre-installed 120 mm hydraulic-bearing ARGB Lite front fans provide lighting and initial airflow; fan and lighting control is available via compatible motherboard RGB software.

Advantages

The case combines a mesh front for enhanced cooling with three pre-installed ARGB Lite 120 mm fans and support for up to seven 120 mm fans or various larger fan configurations. It accepts radiators up to 360 mm in the front and top, offers a full-length PSU cover to hide cables, and features a hinged tempered glass window for easy access and clear component visibility. Onboard I/O includes two USB 3.0 ports and an HD audio port for convenient front-top access.

Suitable for

• Gaming PCs with ATX or E-ATX motherboards
• Workstations requiring multiple storage drives (2.5" and 3.5")
• Custom water-cooling or high-performance air-cooling setups with up to 360 mm radiators
• Systems that use motherboard RGB control (ASUS, GIGABYTE, MSI, ASRock)

Key specifications

• Form factor: Midi Tower
• Supported motherboards: Mini-ITX, Micro-ATX, ATX, E-ATX (12" x 13")
• Pre-installed fans: 3 × 120 mm hydraulic-bearing ARGB Lite (front)
• Maximum fans supported: up to seven 120 mm (or alternative 140 mm/200 mm configurations)
• Radiator support: up to 360 mm (front and top)
• CPU cooler max height: 160 mm
• VGA length support: up to 375 mm
• PSU max length: up to 180 mm (without HDD rack)
• Drive bays: 2 × 3.5", 4 × 2.5"
• Front I/O: 2 × USB 3.0, 1 × HD Audio
• Material: Tempered glass, SPCC
• Color: White
• Dimensions (W × D × H): 216 mm × 463.6 mm × 487 mm
• Weight: 7.5 kg

How to use

Install the desired motherboard (Mini-ITX/Micro-ATX/ATX/E-ATX) and secure it to the standoffs. Fit the power supply into the PSU chamber and route cables beneath the full-length PSU cover to maintain airflow and tidy the interior. Mount storage devices in the designated 3.5" or 2.5" bays. Install the GPU and CPU cooler within the supported length and height limits. Connect the included front fans to the motherboard 5V addressable RGB header and fan headers to enable lighting synchronization and fan control via ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, or ASRock Polychrome software.

Recommendations

For optimal cooling and RGB synchronization, use a motherboard with a 5V addressable RGB header and plan radiator and fan placement (front or top up to 360 mm) according to your GPU and CPU cooler dimensions. Remove unnecessary drive cages if you need extra GPU or PSU length clearance.
