Pc-behuizing Thermaltake View 270 Plus TG ARGB midi tower zwart

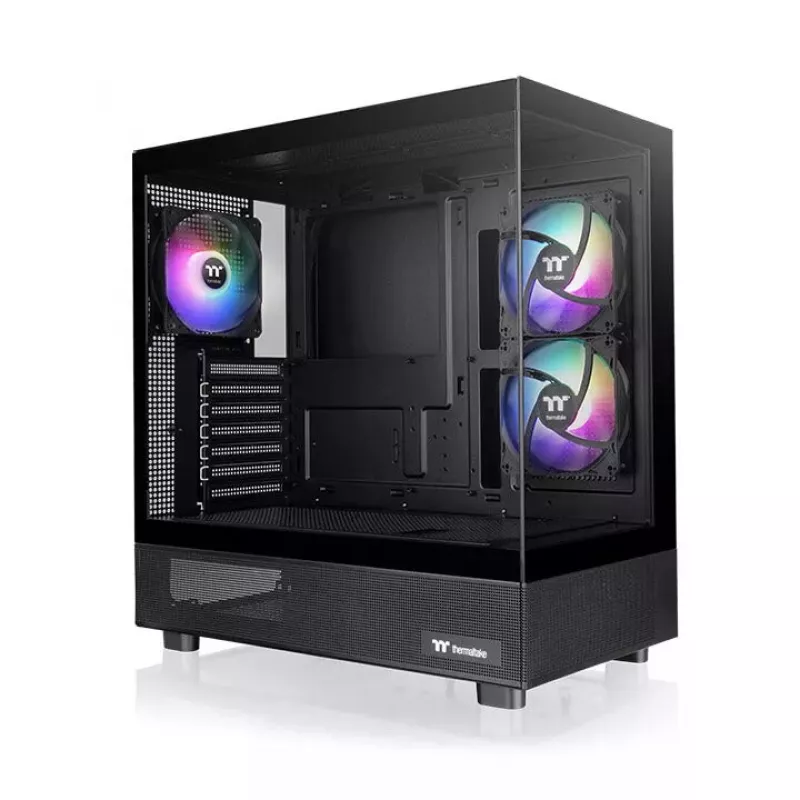

The View 270 TG Plus ARGB is a mid-tower PC case designed for panoramic viewing of internal components. It supports full ATX motherboards and can accommodate up to nine fans for cooling, with three 120 mm ARGB Lite fans pre-installed. Tempered glass panels on the front and side provide wide viewing angles while maintaining a compact mid-tower form factor.

Advantages

Tempered glass front and side panels deliver clear visibility of internal components. The chassis supports up to a 360 mm radiator on the top, enabling effective liquid cooling for demanding systems. Three pre-installed 120 mm ARGB Lite fans offer immediate airflow and synchronized lighting, while daisy-chain connections simplify fan and ARGB wiring. Front/top I/O includes two USB 3.0 ports, one USB 3.2 Gen 2 Type-C port, and HD audio for convenient access.

Key specifications

• Form factor: Mid-tower, supports full ATX motherboards
• Pre-installed fans: Three 120 mm ARGB Lite fans (two side intake, one rear exhaust)
• Cooling support: Up to 360 mm radiator on top
• Drive bays: Supports up to two 2.5" SSDs or two 3.5" HDDs (dedicated and shared locations)

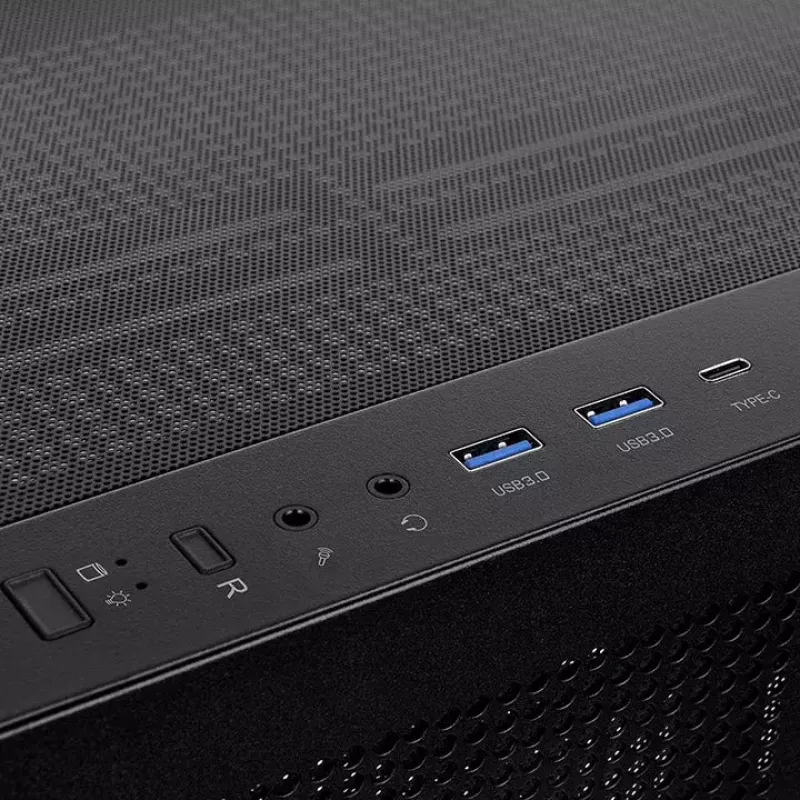

• I/O ports: 2 × USB 3.0, 1 × USB 3.2 Gen 2 Type-C, HD Audio
• ARGB compatibility: 5V addressable RGB header; compatible with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome

How to use

Install a full ATX motherboard and arrange components inside the case using the dedicated mounting points. Fit storage drives into the dedicated or shared locations for 2.5" SSDs or 3.5" HDDs. Connect the pre-installed 120 mm ARGB Lite fans via the daisy-chain PWM and 5V ARGB connectors to the motherboard header, then control lighting and fan behavior using compatible motherboard RGB software (ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome).

Recommendations

For optimal cooling performance, use a 360 mm radiator on the top and ensure proper intake/exhaust fan configuration. Confirm your motherboard has a 5V addressable RGB header to enable full ARGB synchronization without additional controllers.
