PC-behuizing Zalman M2 Mini-Silver mini-tower zilver

The Zalman M2 Mini-Silver is a compact Mini-ITX PC case finished in silver, built from aluminum, steel and acrylic. With dimensions of 328(D) x 150(W) x 235(H) mm and a weight of 2.8 kg, the case supports Mini-ITX motherboards, SFX/SFX-L power supplies and up to 295 mm long graphics cards. It includes a pre-installed 80 mm top fan and comes with a pre-installed PCIe 3.0 riser cable with EMI shielding, 24K-gold plated contacts and a PCB protector for secure GPU installation.

Advantages

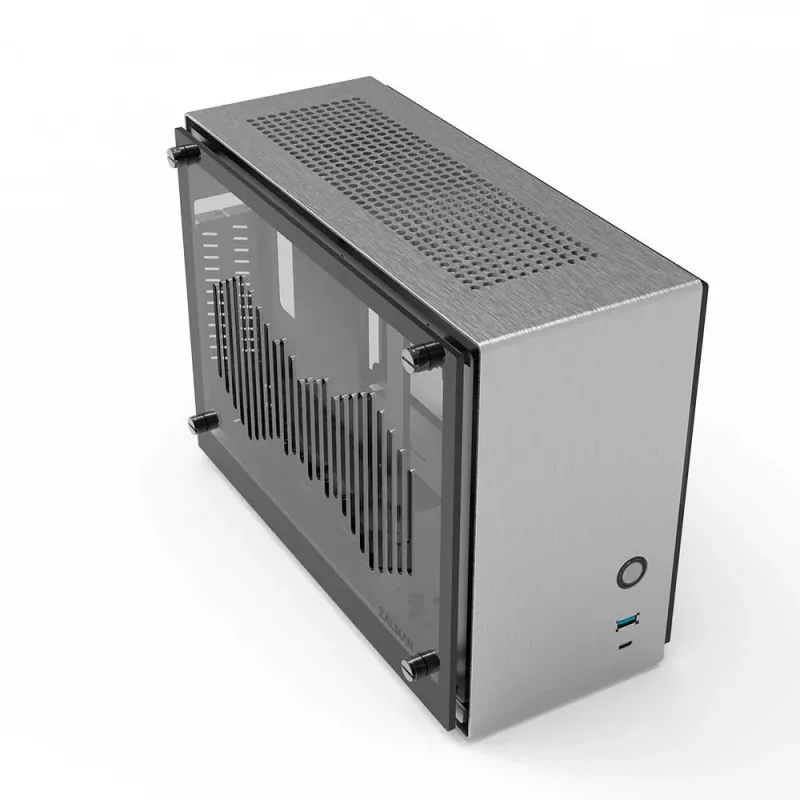

Precision CNC-cut and edge-rounded aluminum panels provide a refined exterior and durable construction. Dual-sided 4T-thick acrylic panels combine interior protection with perforations for improved airflow, and are removable using thumb screws. The case offers a smart front I/O with a power button, one USB 3.0 port and one USB 3.1 Gen2 Type-C port. The packaged PCIe riser cable features flexible five-wire banded construction, slide-type PCIe holding tab and robust shielding for reliable signal integrity.

Suitable for

• Compact Mini-ITX gaming or productivity builds with SFX/SFX-L PSUs
• Small form-factor systems requiring a top 80 mm fan and ventilated side panels
• Configurations with up to two 2.5" drives (SSD/HDD) and dual-slot GPUs up to 295 mm

Key specifications

• Model: M2 Mini-Silver
• Form factor: Mini-ITX case
• Dimensions: 328 x 150 x 235 mm (D x W x H)
• Weight: 2.8 kg
• Materials: Aluminum, Steel, Acrylic
• Motherboard support: Mini-ITX
• Max GPU length: 295 mm
• Max CPU cooler height: 60 mm
• PSU support: SFX, SFX-L
• PCI expansion slots: 2
• Drive bays: 2 x 2.5" (SSD/HDD)
• Fan support (top): 1 x 80 mm (1 x 80 mm included)

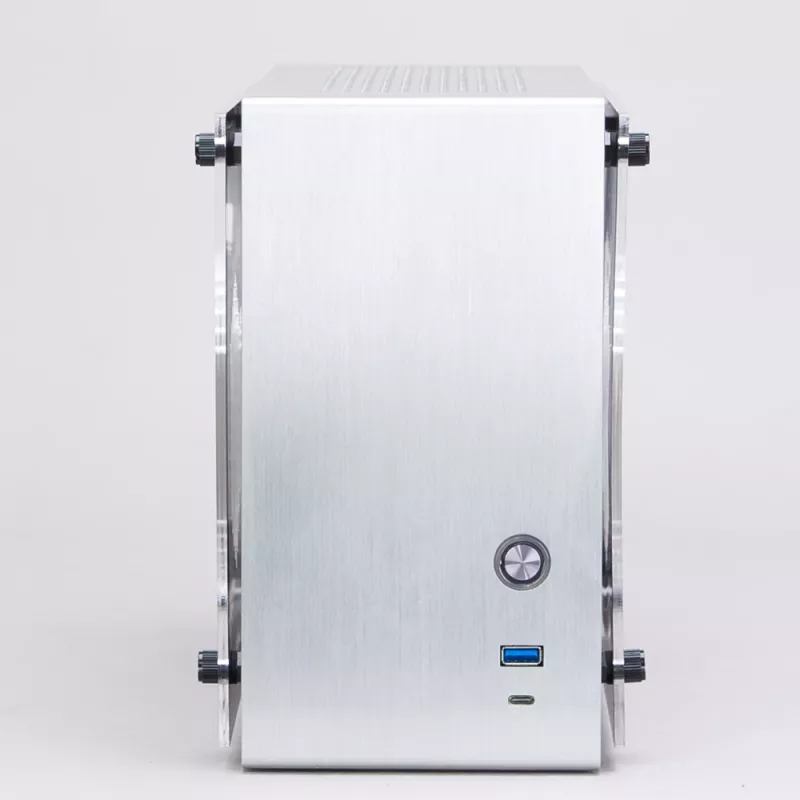

• I/O ports: 1 x USB 3.0, 1 x USB 3.1 Gen2 Type-C, Power Button (LED)

How to use

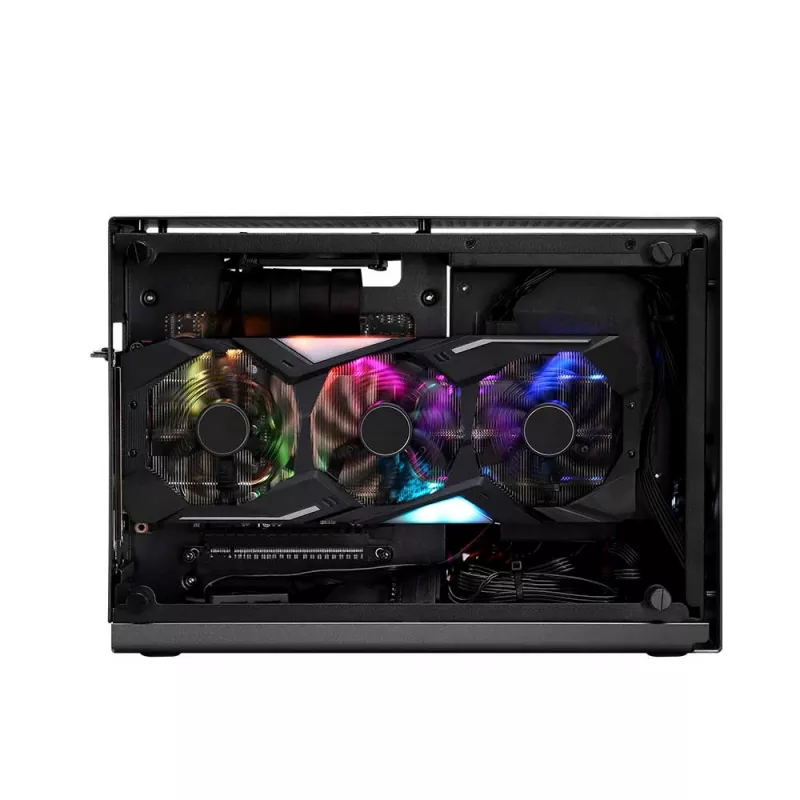

Install a Mini-ITX motherboard and an SFX or SFX-L power supply following the motherboard and PSU manufacturer instructions. Mount up to two 2.5" drives in the provided bays. Install the graphics card using the included PCIe 3.0 riser cable and secure it with the slide-type holding tab; ensure the riser connector is firmly seated and the PCB protector is in place. Connect front-panel I/O and power cables to the motherboard, position the top 80 mm fan as required for airflow, and attach acrylic side panels using the thumb screws.

Recommendations

For optimal cooling, keep perforated acrylic panels unobstructed and use the included top 80 mm fan with an additional 80 mm fan if chassis temperatures are high. Use SFX/SFX-L power supplies to ensure proper fit and check GPU length against the 295 mm maximum before purchase.
