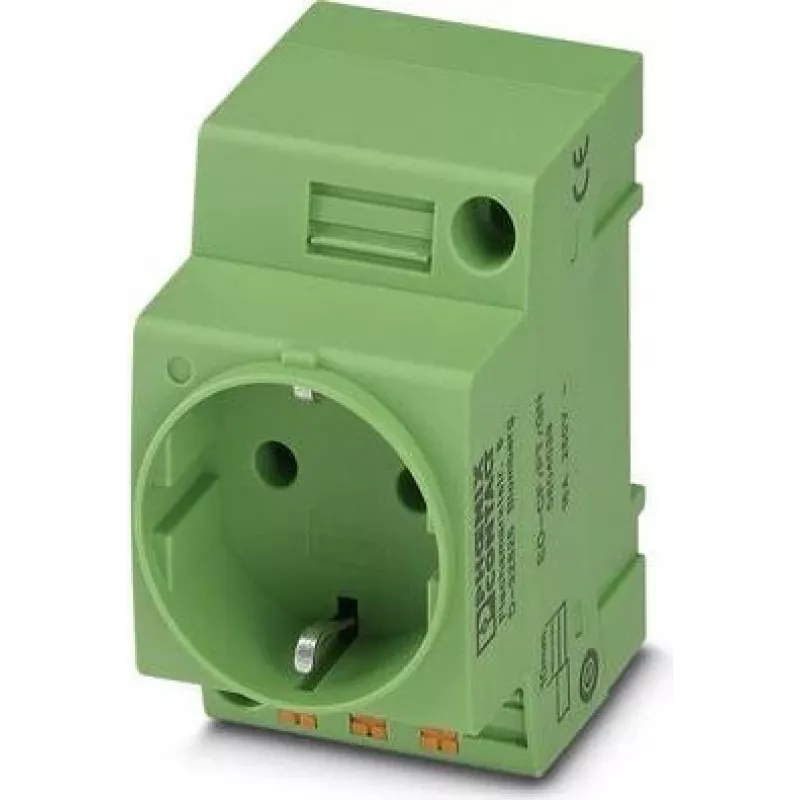

Phoenix Contact EO-CF/PT/GN schakelkast-stopcontact, type F Schuko, push-in, groen, 250V/16A, IP20, 804039

Rated for 250 V AC and 16 A, this control cabinet socket outlet delivers dependable power distribution in industrial enclosures. The EO-CF/PT/GN from Phoenix Contact combines a Type F (Schuko) socket with tool-free push-in connection technology, speeding up installation and reducing wiring errors. Its green housing provides clear visual identification, and the compact design fits standard DIN rail or panel cut-outs.

Overview

Engineered for control cabinet applications, the EO-CF/PT/GN offers a single grounded outlet with a 3-pole configuration (L, N, PE). The push-in terminals accept solid or flexible conductors from 0.5 to 2.5 mm², with an 8 mm stripping length. The front face meets IP20 protection, suitable for enclosed environments. The polyamide housing ensures durability across a wide temperature range from -25 °C to 70 °C.

What stands out

• Push-in connection technology: no tools required, secure and vibration-resistant
• Type F (Schuko) socket compatible with standard European plugs
• Green colour for quick identification in crowded cabinets
• Snap-on mounting for DIN rail or panel cut-out, no screws needed
• Approvals: VDE, UL, cUL, EAC for global compliance

Technical details

• Product type: Control cabinet socket outlet
• Socket type: Type F (Schuko)
• Number of outlets: 1
• Rated voltage: 250 V AC
• Rated current: 16 A
• Number of poles: 3 (L, N, PE)
• Connection technology: Push-in
• Conductor cross section solid: 0.5 - 2.5 mm²
• Conductor cross section flexible: 0.5 - 2.5 mm²
• Stripping length: 8 mm
• Degree of protection: IP20 (front side)
• Housing material: Polyamide (PA)
• Operating temperature: -25 °C to 70 °C
• Overvoltage category: II
• Pollution degree: 2
• Mounting type: Snap-on (DIN rail or panel cut-out)
• Approvals: VDE, UL, cUL, EAC

Our verdict

The EO-CF/PT/GN is a robust and efficient solution for power outlets inside control cabinets. Its push-in terminals and snap-on mounting significantly reduce installation time, while the green housing aids in circuit identification. With international approvals and a wide operating temperature range, it is a reliable choice for industrial automation and building technology.
