Plafondhouder Kindermann 4000000151

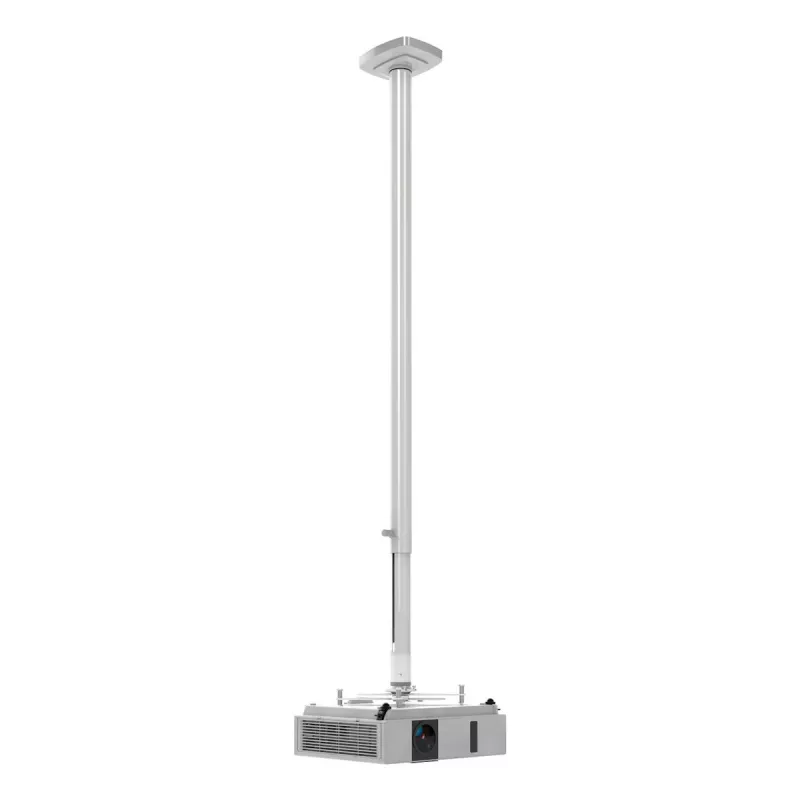

The Kindermann 4000000151 ceiling mount is a pre-assembled white (RAL 9003) mount designed to fix projectors securely at a distance of 105–150 cm from the ceiling. It supports projectors up to 20 kg and includes an integrated cable channel and a 3D joint for multi-axis adjustment. The product is TÜV/GS certified and supplied with a plastic rosette for a clean ceiling finish.

Advantages

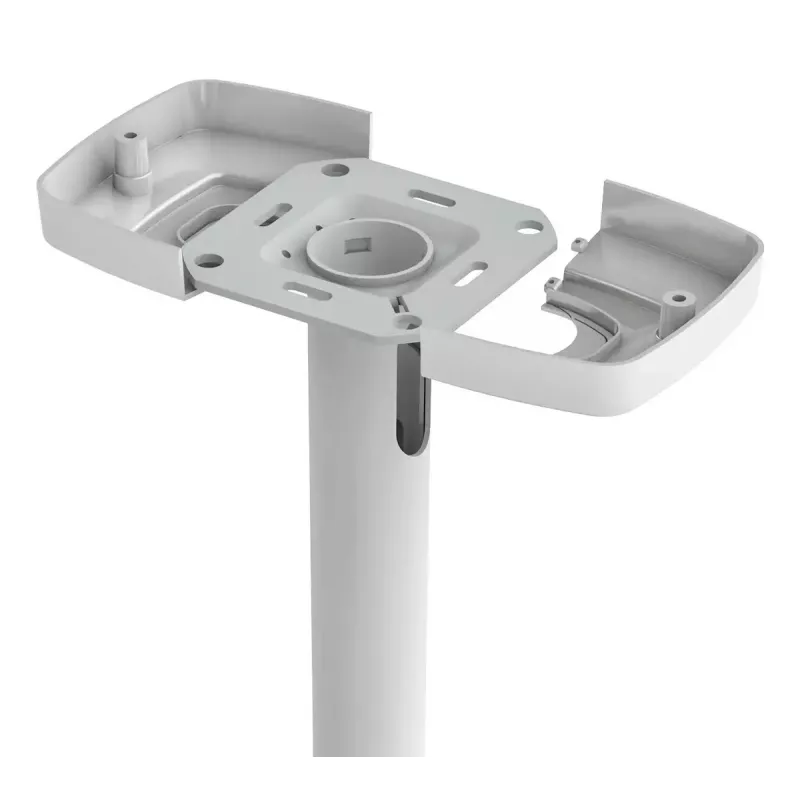

Delivered fully pre-mounted for faster installation, the mount offers a concealed cable channel, quick-release features for rapid projector exchange during servicing, and a 3D joint that allows ±20° tilt in every direction and ±180° rotation. Fixing points are adjustable between 100 and 370 mm and the central tube has an inner diameter of 37 mm.

Suitable for

Key specifications

How to use

Install the pre-mounted ceiling mount at the desired distance (105–150 cm) from the ceiling following local building and electrical codes. Secure the fixing points to the projector using the appropriate screws and adjust the 3D joint to achieve the required tilt and rotation. Route cables through the integrated cable channel and cover the ceiling opening with the supplied plastic rosette. Check all fasteners and alignment before powering the projector.

Recommendations

Ensure the ceiling structure can carry the combined weight of the mount and the projector (max. 20 kg). Use suitable anchors or hardware for the ceiling material and perform periodic checks of the mount and fasteners, especially after maintenance or projector replacement.
