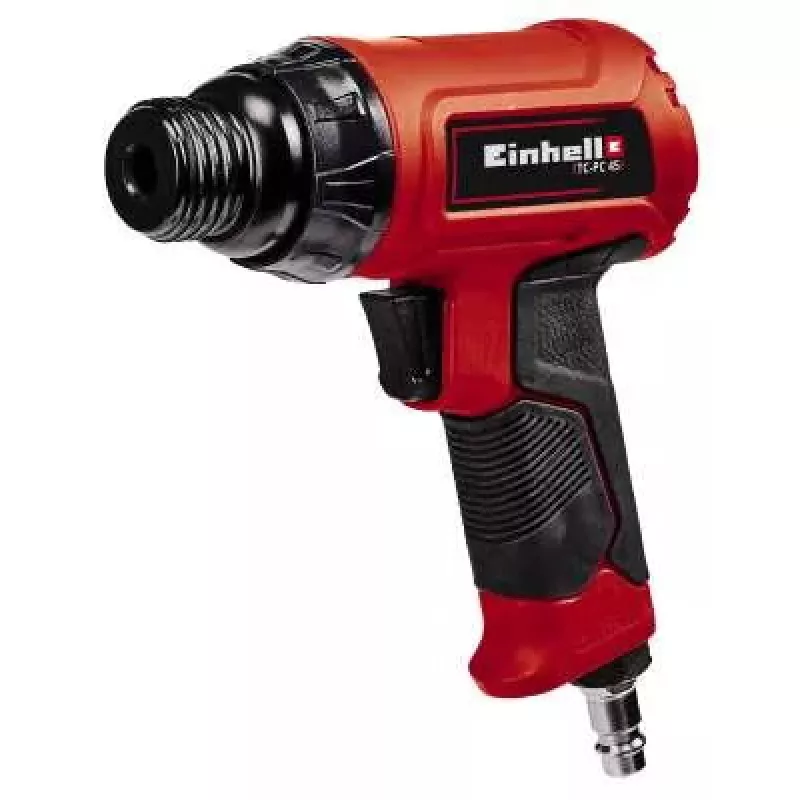

Pneumatische beitelhamer Einhell TC-PC 45

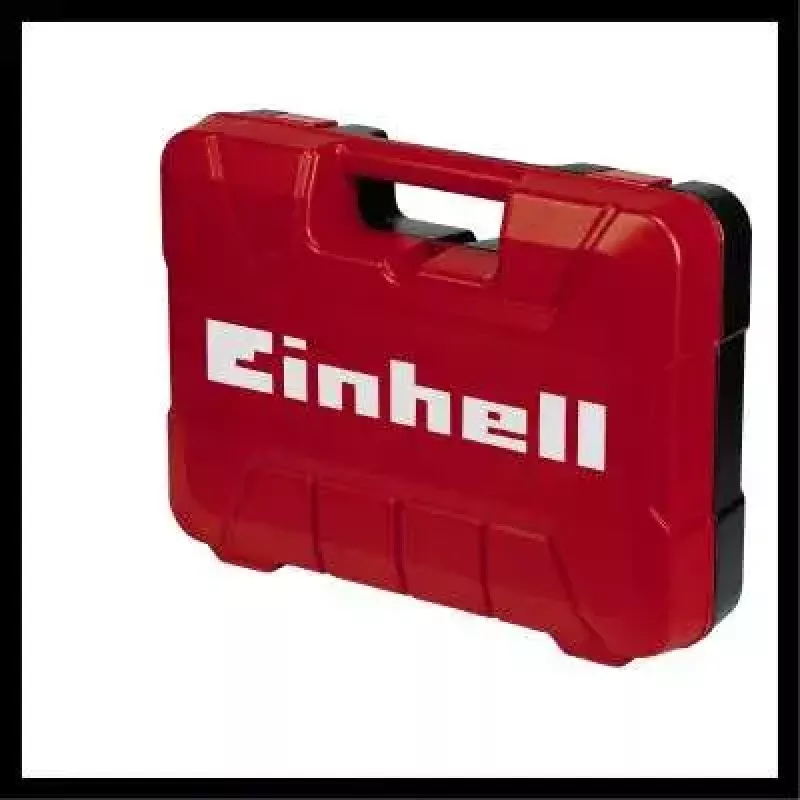

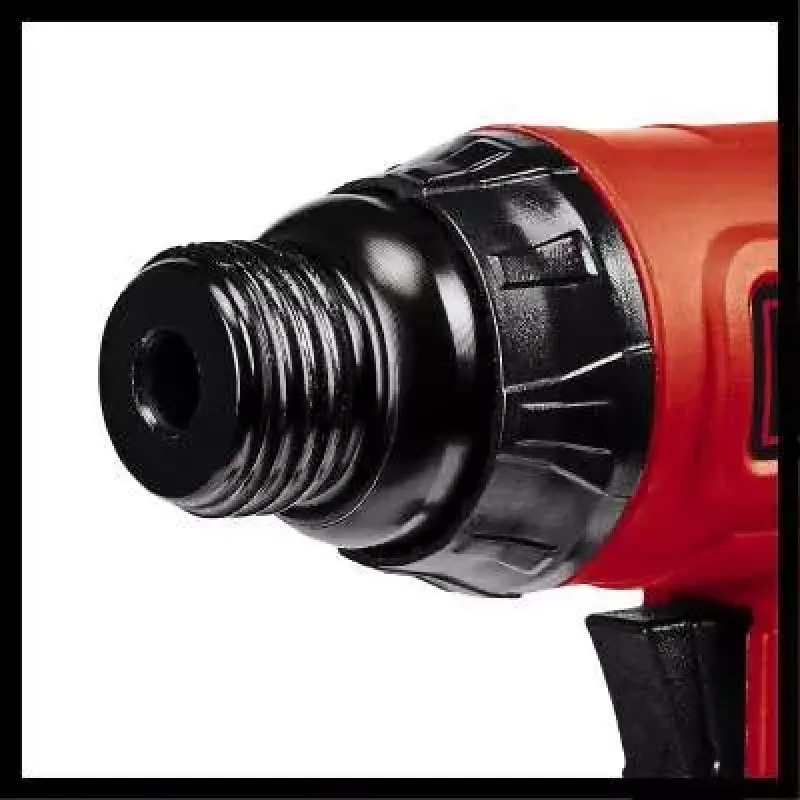

The Einhell TC-PC 45 pneumatic chisel hammer is a compact, air-powered tool designed for demolition and renovation work on stone and metal surfaces. It combines a lightweight body (approximately 1 kg) with robust performance: a maximum operating pressure of 6.3 bar, a blow rate up to 4500 min⁻¹ and an impact energy of up to 1.2 joules. The chisel is secured by a hexagon chuck and the tool is supplied in a practical transport and storage case with accessories for immediate use.

Advantages

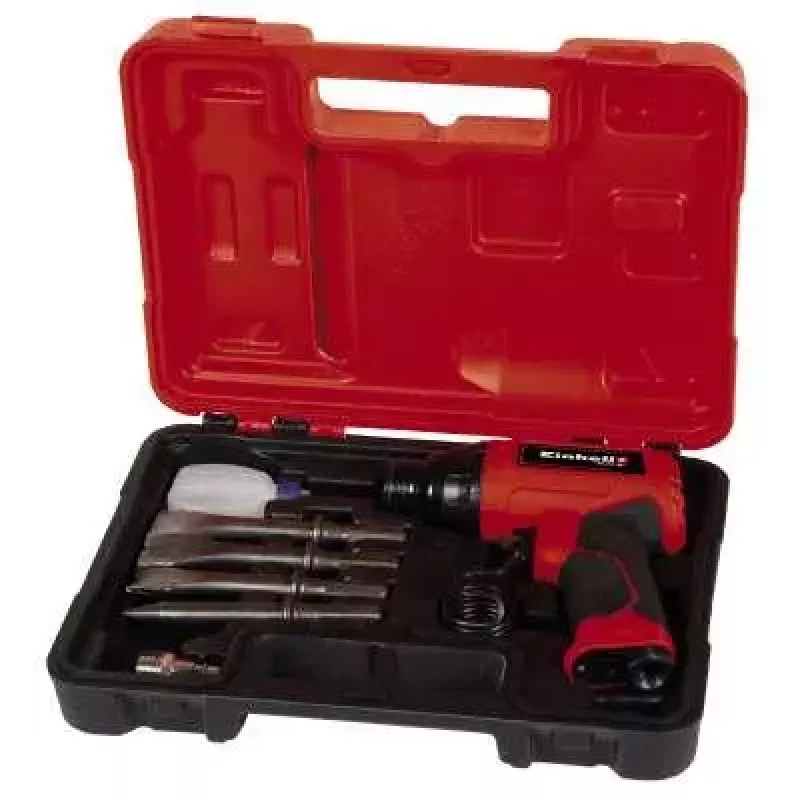

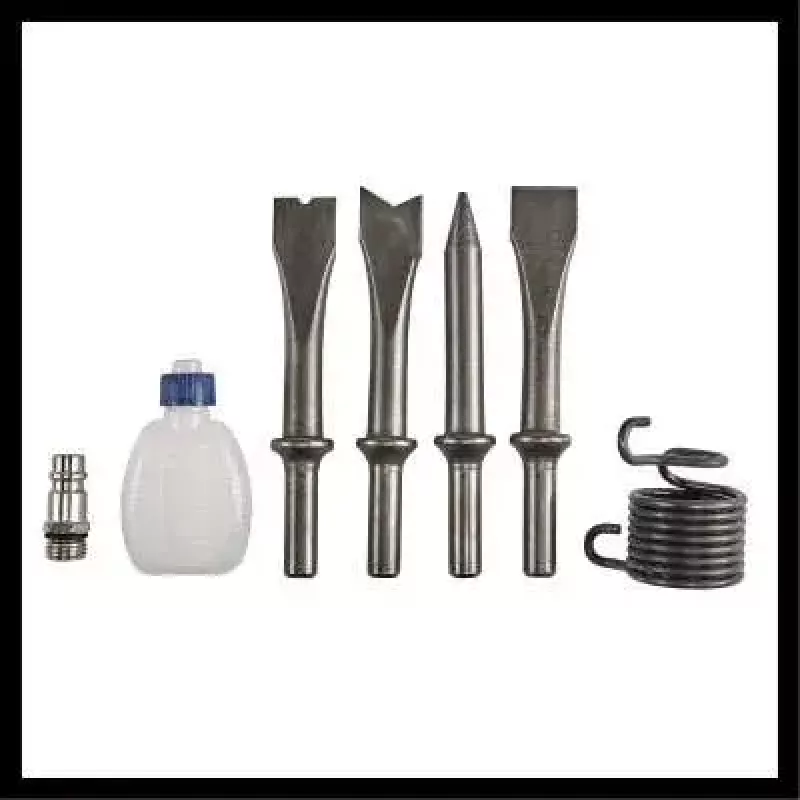

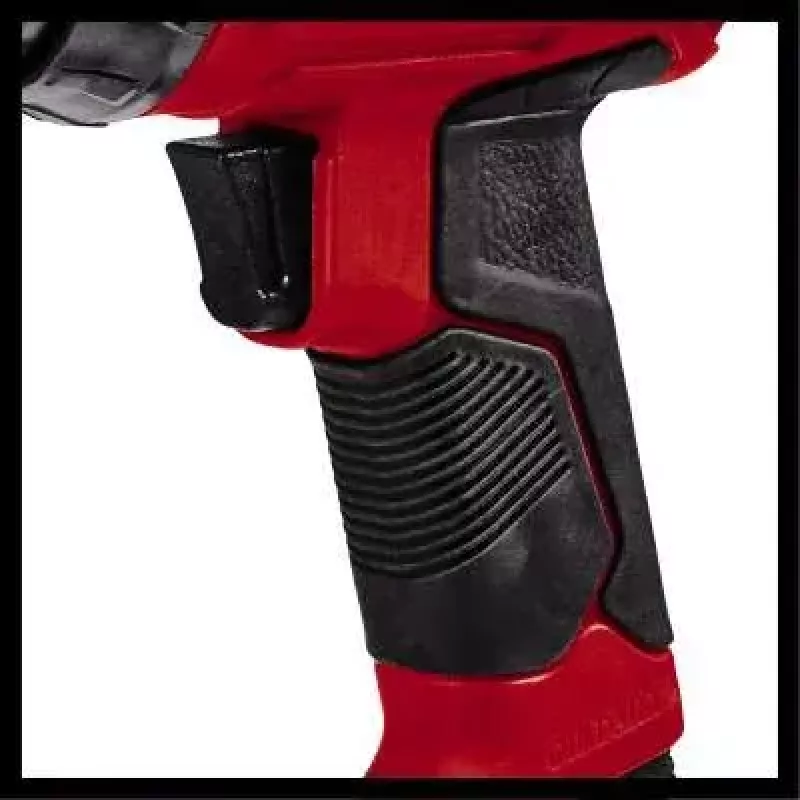

The tool features a non-slip rubberized handle for secure grip and user-friendly handling. Its construction supports use with air hoses having an inner diameter of 9 mm or greater to achieve optimal performance. The delivery set includes a four-piece 120 mm chisel set, a small oil bottle, a nipple and a tension spring, making the pneumatic chisel hammer ready for a variety of tasks straight from the case.

Suitable for

• Demolition of small masonry and tile removal
• Removing rust and weld spatter from metal surfaces
• Renovation tasks on concrete, brick and stone
• Automotive and workshop applications for light chipping

Key specifications

• Type: pneumatic chisel hammer
• Brand: EINHELL, model TC-PC 45 (MPN 4139040, EAN 4006825640007)
• Maximum operating pressure: 6.3 bar
• Blow rate: up to 4500 min⁻¹
• Impact energy: up to 1.2 J
• Recommended hose inner diameter: ≥ 9 mm
• Chisel length in set: 120 mm (4 pieces included)
• Weight: ~1 kg
• Dimensions (W × D): 210 × 280 mm

How to use

Connect the Einhell TC-PC 45 to a compressed air supply using a hose with an inner diameter of at least 9 mm. Fit the required chisel into the hexagon chuck and ensure it is securely seated. Adjust the air pressure up to the specified maximum of 6.3 bar as needed for the task. Hold the tool by the rubberized handle, position the chisel on the work surface and operate the tool in short controlled bursts to achieve the desired removal or chipping effect. After use, depressurize the system, remove the chisel if required and store the tool and accessories in the supplied case.

Recommendations

Use appropriate personal protective equipment (safety glasses, hearing protection, gloves) and follow local safety regulations when operating pneumatic tools. Regularly lubricate the tool using the supplied small oil bottle and check connections, nipples and the tension spring before each use to ensure reliable operation.
