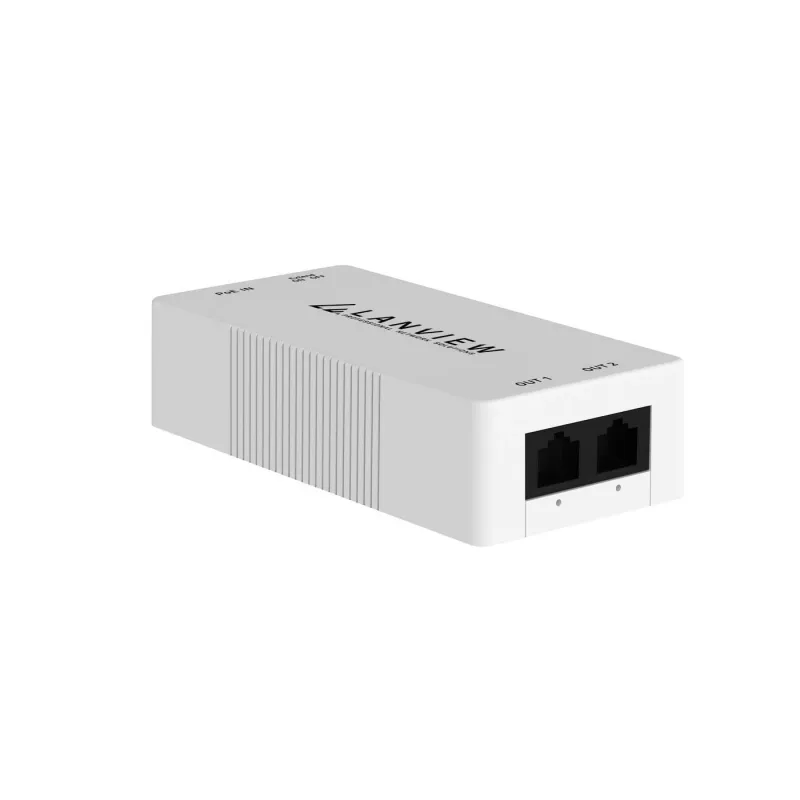

PoE-extender Lanview LVN-1000MB-POE30W-EXTENDER — 1000Mb, 30W PoE

Lanview LVN-1000MB-POE30W-EXTENDER is a PoE extender that supports 1000Mb Ethernet and provides up to 30W of power over Ethernet. It increases the usable distance between a PoE switch or injector and powered devices such as IP cameras, wireless access points and VoIP phones, enabling installations where local mains power is not available. The unit maintains gigabit throughput while delivering power, simplifying network deployment and reducing the need for additional power adapters or outlet wiring.

Advantages

The device preserves gigabit bandwidth across extended cable runs while supplying up to 30W of PoE power, reducing the number of intermediate power sources required. Its compact design facilitates mounting near network endpoints and it supports common PoE use cases such as security cameras and wireless APs without sacrificing data rate. The extender lowers installation complexity by combining power and data over a single Ethernet cable and fits into existing structured-cabling environments.

Suitable for

• Extending PoE to IP surveillance cameras located far from power outlets
• Powering wireless access points in ceilings or outdoor enclosures
• Supplying VoIP phones or other networked endpoints where local power is impractical
• Expanding PoE coverage in warehouses, retail spaces and industrial sites

Key specifications

• Ethernet speed: 1000Mb (gigabit) data throughput
• Maximum PoE output: up to 30 watts delivered to connected device
• Function: extends both power and data over Ethernet cabling
• Application: compatible with PoE-enabled cameras, access points and VoIP phones
• Physical: compact form factor for endpoint or near-device placement

How to use

Connect the upstream Ethernet cable from a PoE switch or PoE injector to the extender's input port, then run an Ethernet cable from the extender's output port to the powered device. Ensure the originating switch or injector can supply sufficient PoE power to cover the extender and the end device so that the combined delivery does not exceed available budget. Mount the extender near the powered device using a suitable bracket or cable ties, and verify link status and device operation after connection.

Recommendations

Use high-quality Cat5e or better Ethernet cabling and keep total cable length within recommended limits for PoE to ensure reliable gigabit performance and consistent power delivery. Verify the power requirements of the powered device and the power capacity of the upstream PoE source before deployment.
