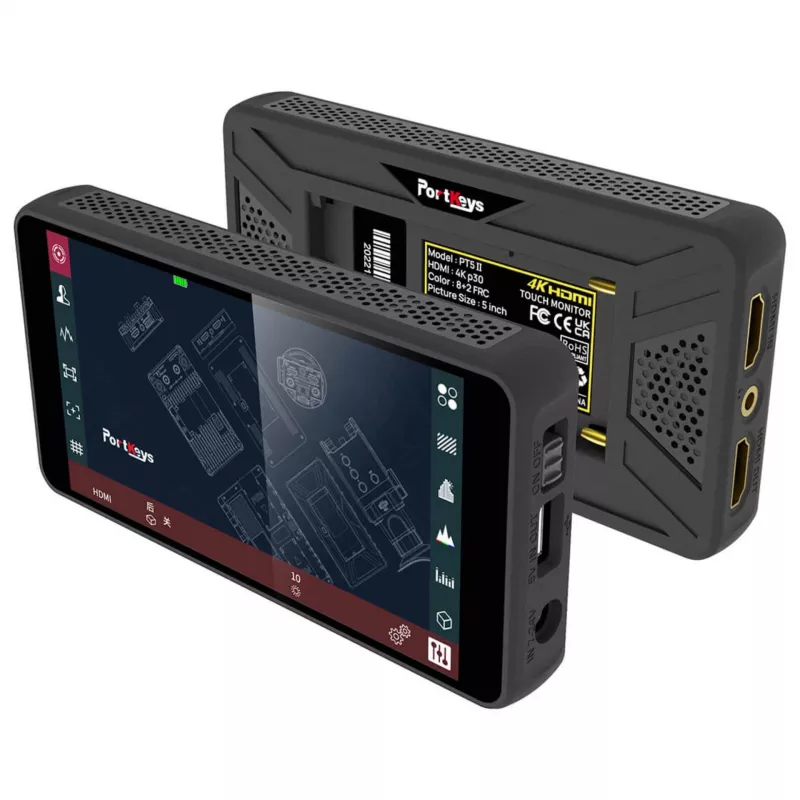

Portkeys PT5 II 5 inch 4K HDMI touchscreen-monitor

The Portkeys PT5 II is a professional 5-inch 4K HDMI touchscreen monitor designed for filmmakers and content creators. With its compact size and high-resolution display, it offers precise monitoring and advanced camera assist functions.

Advantages

This monitor features a 5-inch IPS LCD panel with Full HD resolution (1920x1080) and 500 cd/m² brightness, ensuring clear visibility even in bright environments. The touchscreen interface allows intuitive control of monitoring tools such as waveform, vectorscope, histogram, peaking, false color, zebras, grids, and anamorphic de-squeeze. It supports 3D LUTs via USB for accurate color grading. Dual NP-F/LP-E6 battery plates provide flexible power options, and the DC input accepts 7-24V.

Suitable for

• Professional videographers and filmmakers
• Camera operators needing a compact on-camera monitor
• Studio and field production

Key specifications

• Display: 5-inch IPS LCD, 1920x1080, 500 cd/m², 1000:1 contrast, 8-bit color
• Input: 1x HDMI (up to 4K DCI 24p, 4K UHD 30p)
• Output: 1x HDMI (loop-through)
• Audio: 3.5mm headphone jack
• USB: Type-A for LUTs and firmware
• Power: DC 7-24V barrel connector, dual NP-F/LP-E6 battery plate
• Mounting: 2x 1/4"-20 threads
• Construction: ABS plastic/PC

Recommendations

For best performance, use with compatible HDMI cables and NP-F series batteries. The monitor is ideal for DSLR and mirrorless camera setups.
