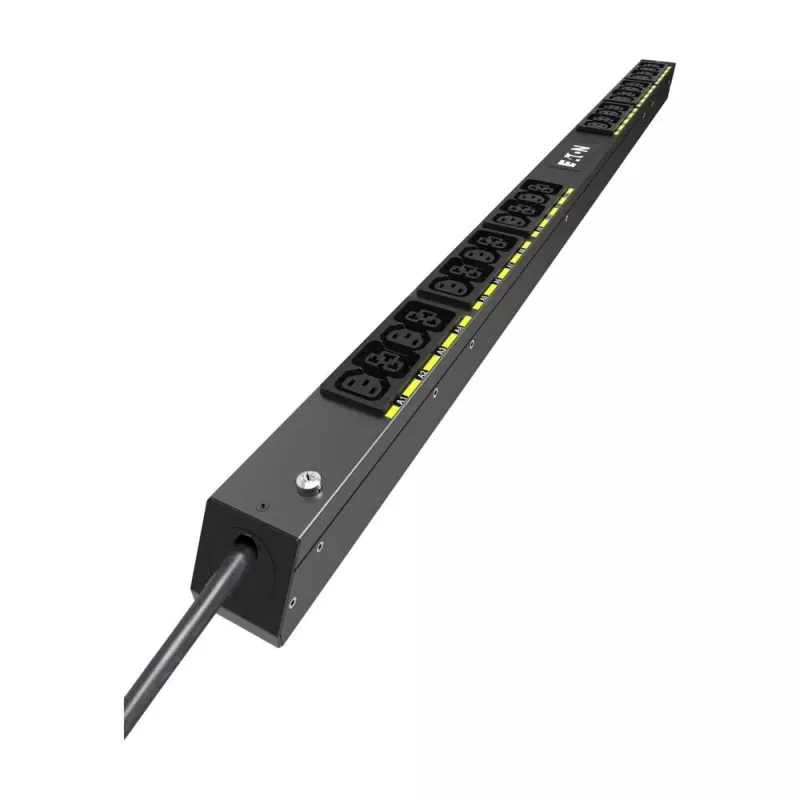

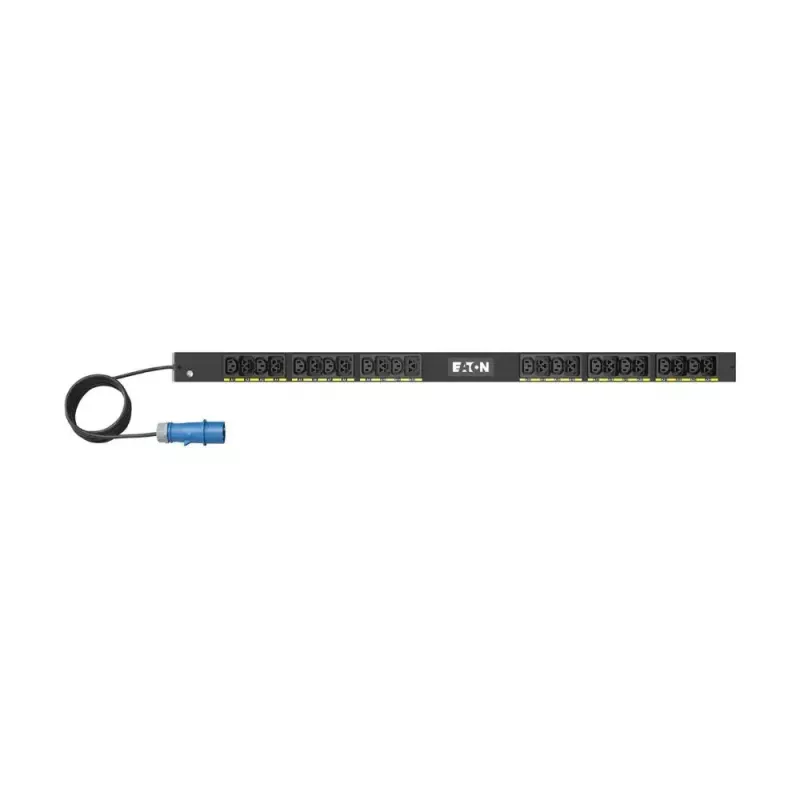

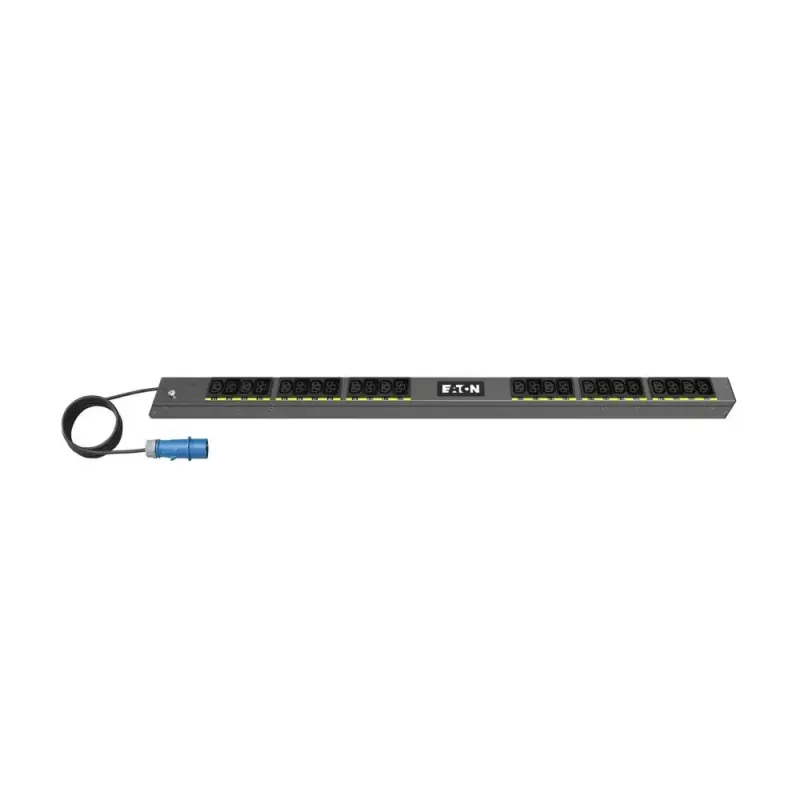

Power Distribution Unit Eaton EVBAF116A 24 AC-uitgangen 22.5U zwart

The Eaton EVBAF116A Power Distribution Unit provides centralized AC power management for rack-mounted equipment. Designed for single-phase installations, it offers 24 AC outlets and fits a 22.5U rack space. The unit supports a nominal input voltage of 200–240 V and a maximum current of 16 A, and comes with an integrated 3 m power cable and a combination of C13 and C39 couplers for flexible connection options.

Advantages

The unit delivers reliable, consolidated power distribution for multiple devices in a single rack location. Its single-phase design and standardized outlet types simplify deployment in data cabinets and equipment rooms. The 3 m cable length and mixed coupler arrangement enable adaptable placement relative to input sources, while the 22.5U form factor balances outlet density with rack space considerations.

Suitable for

• Server cabinets and network racks requiring centralized AC power
• Equipment rooms and small data centers with single-phase 200–240 V supply
• Power distribution for IT devices, network switches, and peripheral equipment

Key specifications

• Number of AC outlets: 24
• Rack space requirement: 22.5U
• Input voltage (nominal): 200–240 V
• Maximum input current: 16 A
• Phase: single-phase
• Cable length: 3 m
• Included coupler types: combination of C13 and C39 couplers
• Color: black

How to use

Mount the unit into the rack using the appropriate 22.5U spacing and fastening hardware. Connect the supplied 3 m cable to a compatible single-phase 200–240 V input source rated for up to 16 A. Distribute equipment power by plugging devices into the 24 AC outlets, observing the rated current limits for each connected device and the overall maximum current. Ensure that rack ventilation and cable routing comply with equipment manufacturer recommendations and local electrical codes.

Recommendations

To maintain safe and stable operation, avoid exceeding the 16 A maximum input current and balance connected loads where possible. Verify compatibility of connected devices with the provided coupler types and ensure proper grounding of the rack. Regularly inspect cables and connections for wear or damage and allow adequate airflow around the unit to prevent overheating.
