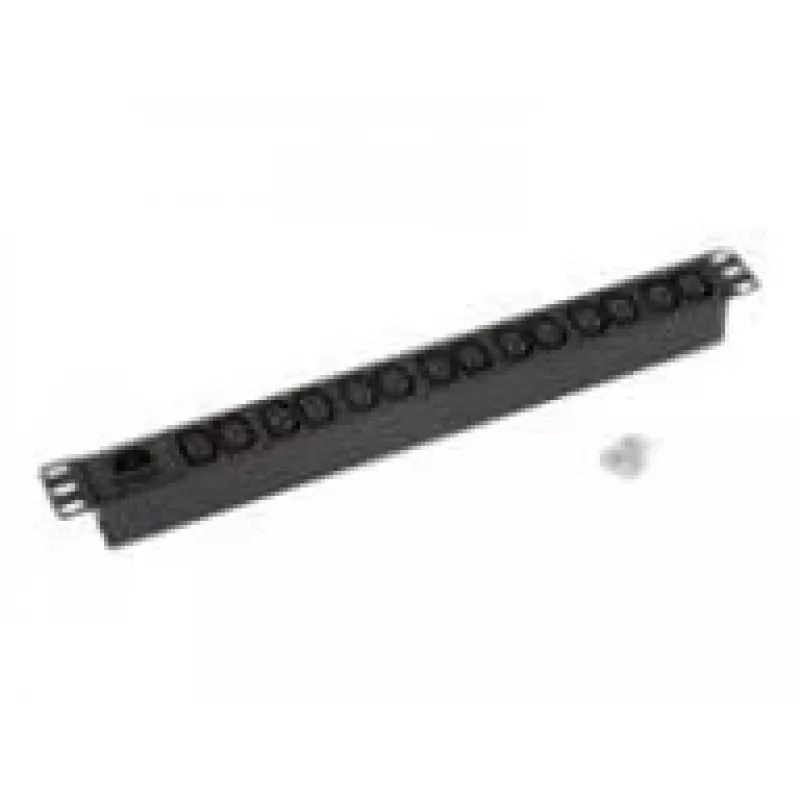

Power Distribution Unit Triton RAB-PD-X10-A1

The Triton RAB-PD-X10-A1 is a 1U, 19" power distribution unit (PDU) in black (RAL 9005) designed for rack-mounted equipment. It provides 14 IEC320 output sockets and accepts power via an IEC320 C14 input connector. The unit is rated for a maximum total current of 10 A per phase and fits standard 48.3 cm (19") racks without an integrated mains cable.

Advantages

This compact 1U PDU offers multiple IEC320 outlets in a single-rack slot, saving space and simplifying cabling in server cabinets and network racks. Its IEC320 C14 input enables connection to common rack power sources, and the black RAL 9005 finish matches typical rack equipment. The design supports reliable power distribution for a range of IT devices while maintaining a low-profile installation.

Suitable for

• Small server and network racks
• Workstation cabinets
• Edge computing and telecommunications enclosures
• Laboratory or audio-visual racks with IEC320-equipped devices

Key specifications

• Form factor: 1U, 19" (48.3 cm)
• Output sockets: 14 × IEC320
• Input connector: IEC320 C14
• Maximum current: 10 A per phase
• Integrated cable: no (unit without mains cable)
• Colour: Black (RAL 9005)
• Manufacturer: Triton, MPN RAB-PD-X10-A1, EAN 8595105051191

How to use

Mount the PDU in a standard 19" rack using the front rack ears. Connect the IEC320 C14 input to a compatible power source or distribution block using an appropriate mains lead (not included). Plug IEC320-equipped devices into the 14 output sockets, ensuring the total connected load does not exceed 10 A per phase. Arrange cables to avoid strain on connectors and to maintain airflow within the rack.

Recommendations

Verify the rack power capacity and individual device current ratings before connecting equipment. Use a compatible mains cable and, where required, a circuit breaker or rack-level power monitoring device. Avoid exceeding the 10 A per phase rating to prevent overload and ensure safe operation.
