Power Distribution Unit VALUE 19.99.3420

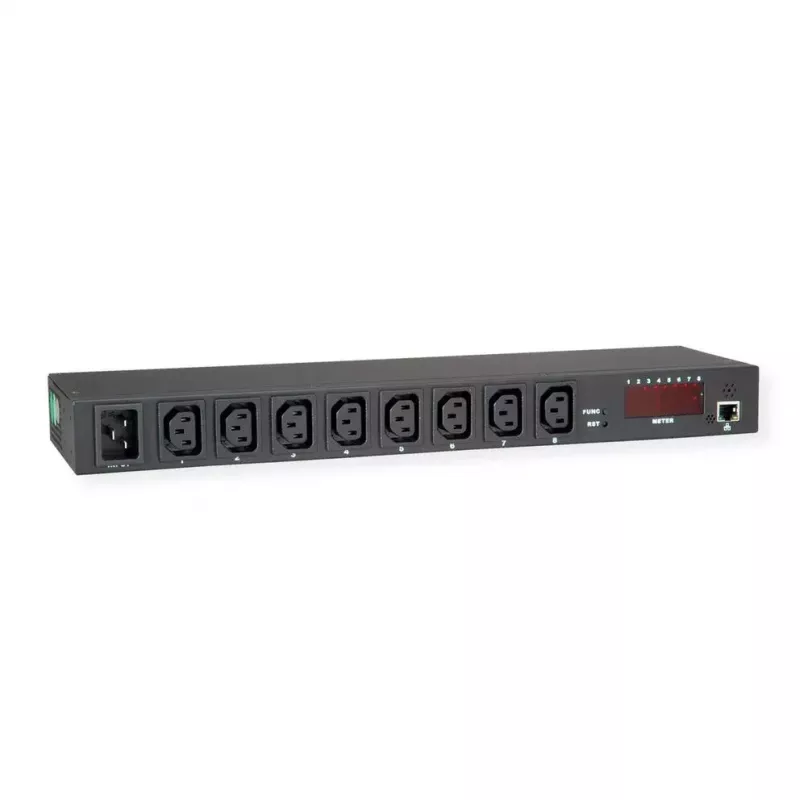

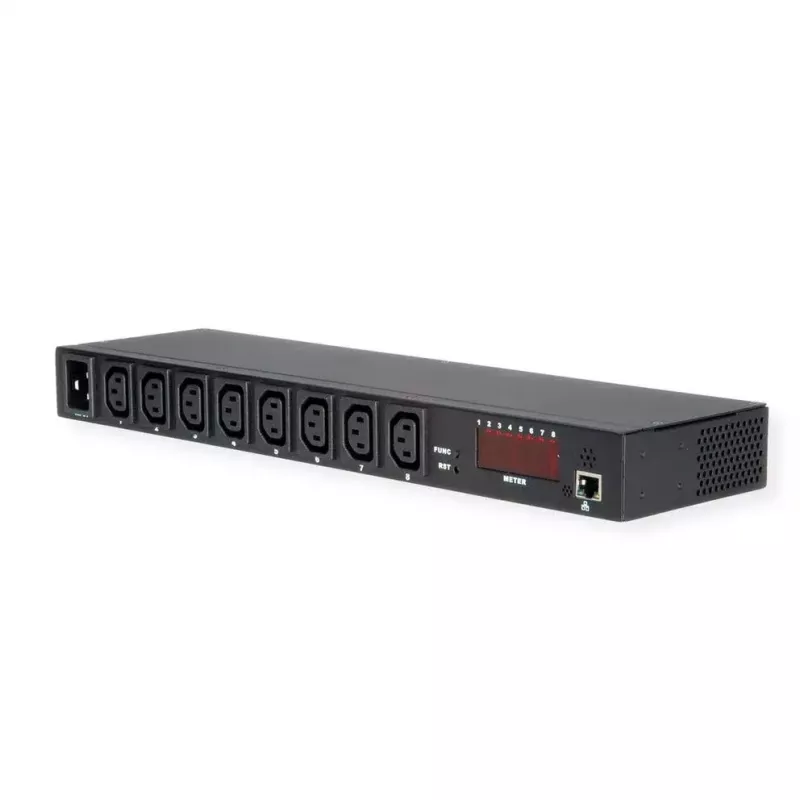

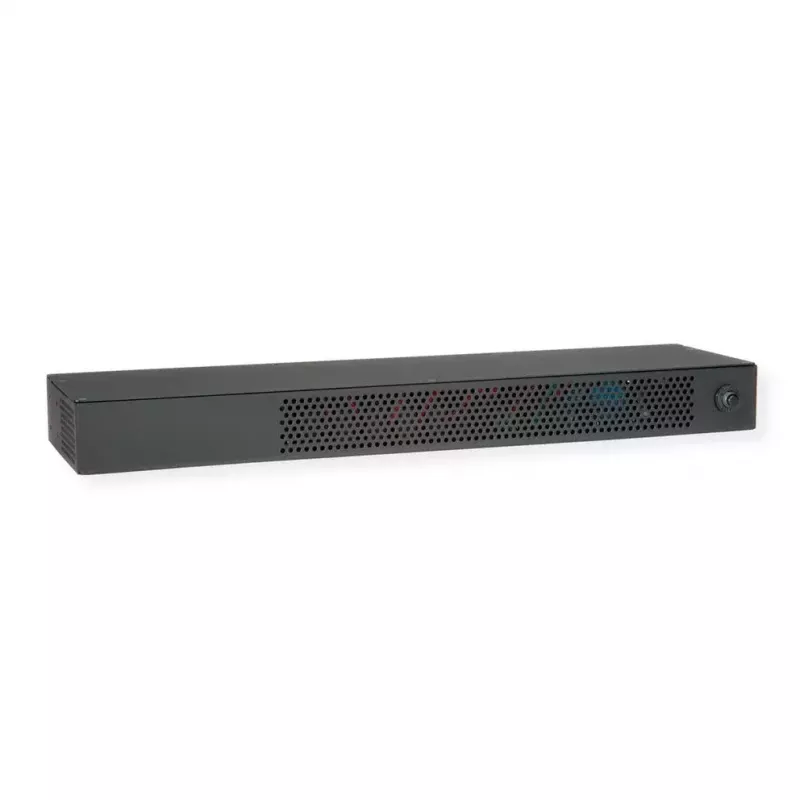

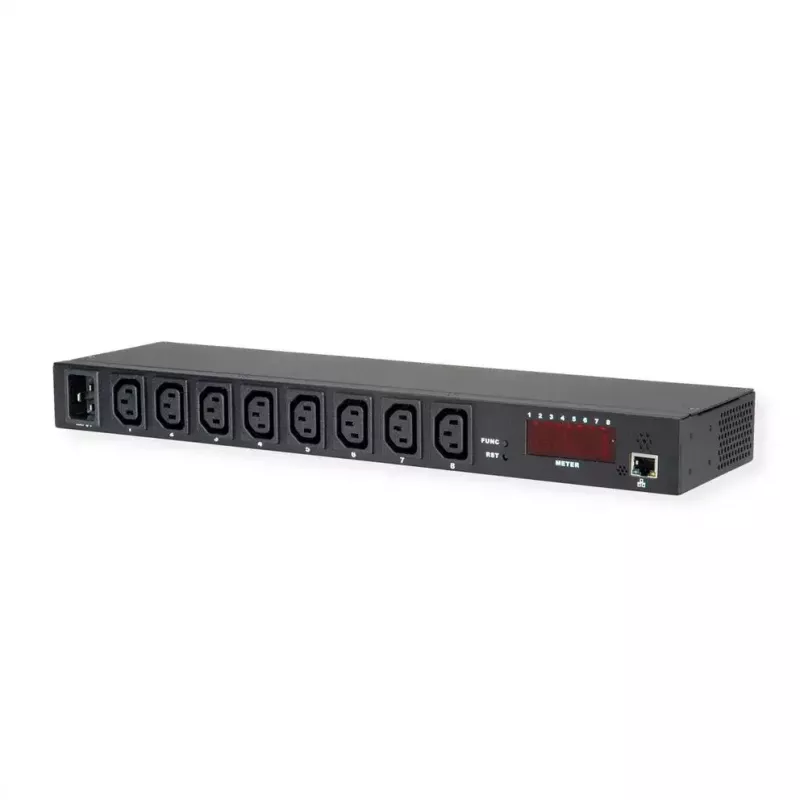

The VALUE 19.99.3420 is a managed Power Distribution Unit (PDU) that enables remote on/off switching of electrical devices over a TCP/IP network. The unit is designed for horizontal installation in a 1U rack space and provides eight IEC C13 outlets with a C20 mains inlet. It supports a nominal input voltage of 230 V and a maximum power rating of 3600 W.

Advantages

The VALUE PDU allows independent control of each outlet via a web browser once an IP address has been assigned, enabling centralized power management for rack-mounted equipment. Its 1U horizontal form factor and standard IEC connectors simplify installation in server rooms and data centers while the managed network interface provides remote access and control without additional hardware.

Suitable for

• Server rooms and data centers
• Rack-mounted network and telecom equipment
• Remote power cycling of servers and switches
• IT cabinets and horizontal rack installations (1U)

Key specifications

• Model: VALUE 19.99.3420
• Brand: VALUE
• MPN: 19.99.3420
• EAN: 7611990168767
• Form factor: 1U, horizontal
• Outlets: 8 × IEC C13
• Inlet: IEC C20
• Nominal input voltage: 230 V
• Maximum power: 3600 W

How to use

Mount the PDU horizontally in a 1U rack space and connect the C20 inlet to the mains power source. Connect devices to the IEC C13 outlets. Attach the PDU to your TCP/IP network using the network interface and assign a free IP address. Open a common web browser, navigate to the assigned IP address, and use the web interface to switch individual outlets on or off as required.

Recommendations

Use a dedicated circuit rated for the PDU's maximum load and avoid exceeding the 3600 W total power rating. Ensure network security by placing the PDU interface behind appropriate firewalls or access controls and keep firmware updated for reliable remote management.
