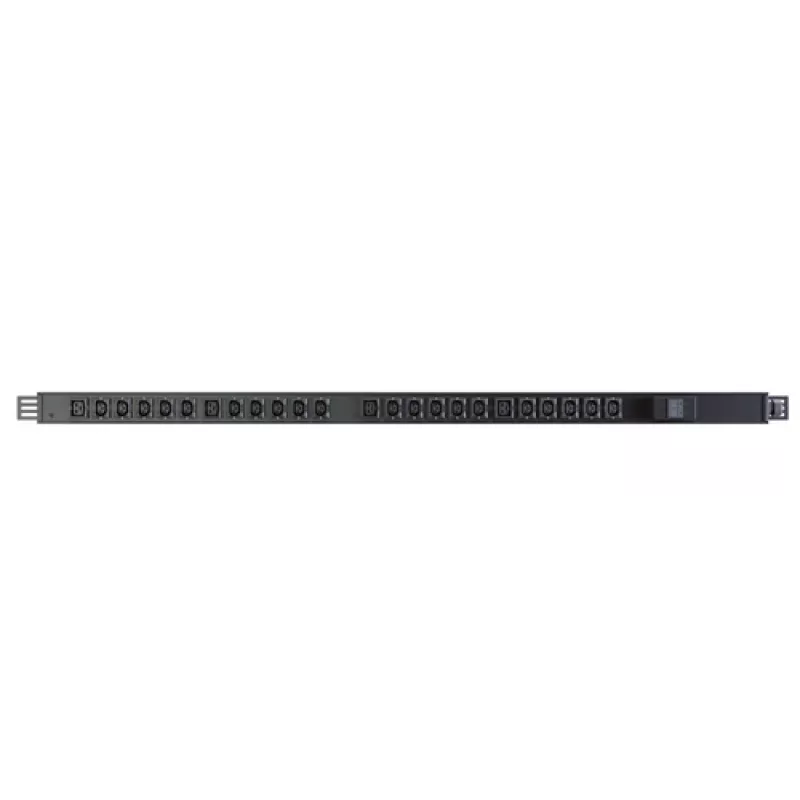

Power Distribution Unit Vertiv PowerGo Basic PDU 0U 1P+N+E 230V 32A 24 AC-uitgangen

The Vertiv PowerGo EP0G90A0 is a 0U single-phase Power Distribution Unit (PDU) with a 230V nominal input, 32A maximum current and a total load capacity up to 7.3 kW (2P+E, IP44). Designed for data centers and high-demand IT environments, it provides 24 AC outlets — 20 IEC C13 and 4 IEC C19 — arranged across two protected circuits and fitted with a 3 m (10 ft) power cable. The unit is CE- and FCC-marked, compliant with IEC 62368-1 and RoHS, and is 100% tested with a one-year warranty.

Advantages

The PDU offers two 16A single-pole magnetic breakers with a combined breaker/switch arrangement for straightforward circuit control and over-current protection. All outlets feature a manual locking mechanism for secure connections, and the IP44 rating plus a maximum operating temperature of 45°C ensure reliable operation in demanding rack environments. Compliance with international safety standards and full testing provide verified reliability for critical IT equipment.

Suitable for

• Rack-mounted servers and storage systems in data centers
• Network switches, routers and telecommunications equipment
• Edge and co-location facilities with single-phase 230V supply
• High-density IT racks requiring mixed C13 and C19 outlet types

Key specifications

• Model: Vertiv PowerGo EP0G90A0
• Input voltage: 230 V nominal
• Maximum current: 32 A
• Load capacity: up to 7.3 kW (2P+E)
• Outlets: 20 × IEC C13, 4 × IEC C19
• Circuit protection: 2 × 16 A single-pole magnetic breakers
• Cable length: 3 m (approx. 10 ft)
• Ingress protection: IP44
• Operating temperature: up to 45 °C
• Compliance: CE, FCC, IEC 62368-1, RoHS
• Warranty: 1 year; 100% tested

How to use

Install the 0U PDU in a rack space following rack-mounting instructions and connect the 3 m power cable to a suitable 230 V supply. Distribute equipment across the two protected circuits to balance load between the two 16 A breakers. Use the breaker/switch combination to power circuits on or off and to reset the unit after an over-current trip. Ensure each connected device is securely latched to the manual locking outlets to prevent accidental disconnection.

Recommendations

For safe and reliable operation, verify total connected load does not exceed 32 A or the 7.3 kW rating, and balance devices across both breakers. Maintain ambient temperature below 45 °C and observe rack airflow practices. Use qualified personnel for installation and follow local electrical regulations.
