Power Distribution Unit Digitus DN-95417

The Power Distribution Unit Digitus DN-95417 provides orderly power supply and flexible installation for 482.6 mm (19") server racks and network cabinets. The unit features six shockproof AC outlets arranged at a space-saving 45° angle to avoid blocking adjacent sockets, a robust aluminum housing in silver and black, an integrated circuit breaker for overload protection and a 1.8 m power cable. The compact dimensions and included mounting bracket allow horizontal mounting in the 19" grid and also permit vertical installation when required.

Advantages

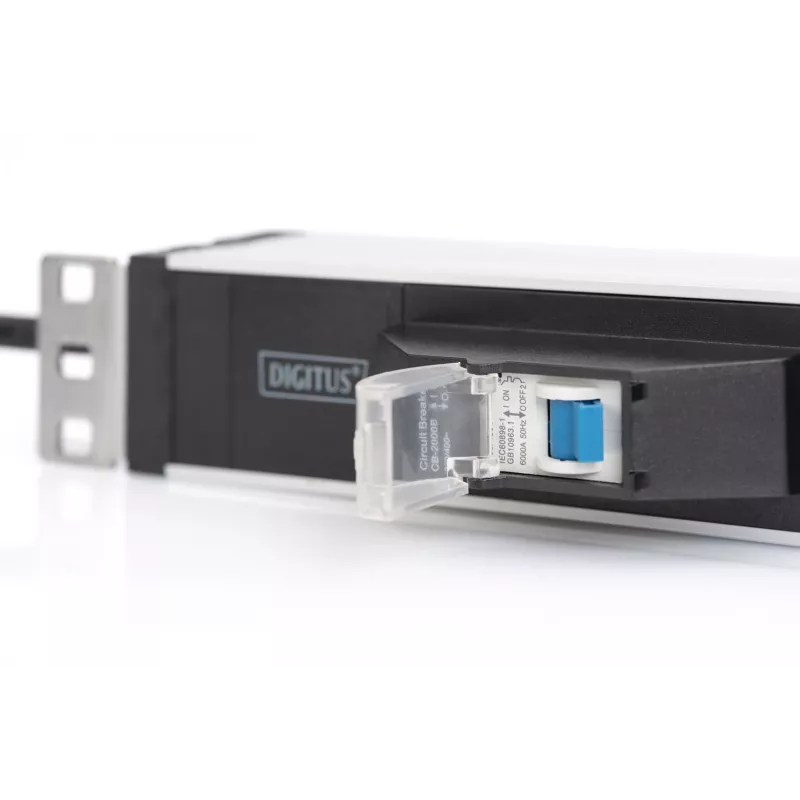

The Digitus DN-95417 combines a sturdy aluminum housing with six safety AC outlets and an integrated circuit breaker to protect feed cabling. Its 45° socket arrangement prevents adjacent-socket obstruction and lets larger plugs be used without interference. The supplied mounting bracket supports installation in the 482.6 mm (19") rack grid and can be fixed in eight different positions (four at 45° and four at 90°), offering flexible alignment options.

Suitable for

• Power distribution in 19" server racks and network cabinets
• Horizontal mounting in server cabinets
• Vertical installation when space or layout requires it
• Environments requiring overload protection for supply lines

Key specifications

• Model: Digitus DN-95417
• AC outlets: 6 shockproof outlets
• Nominal input voltage: 250 V
• Maximum current: 16 A
• Frequency: 50–60 Hz
• Cable length: 1.8 m
• Dimensions (W×D×H): 45 × 481 × 83 mm
• Weight: 0.8 kg
• Material/colour: Aluminum housing, silver and black

How to use

Install the PDU into the 482.6 mm (19") rack using the supplied mounting bracket. Choose horizontal mounting as standard; if needed, attach the bracket for vertical installation. Adjust the bracket position on the unit to one of the eight available settings (four at 45° and four at 90°) to match cabinet layout and cable routing. Connect the PDU to the mains supply, plug in devices to the 45° arranged outlets, and monitor the integrated circuit breaker for overload events.

Recommendations

Use the 45° socket orientation to accommodate bulky plugs and maintain access to adjacent outlets. Ensure the total connected current does not exceed 16 A and check that the rack wiring and upstream protection are dimensioned accordingly. Regularly inspect the integrated circuit breaker and cable for signs of wear or damage.
