Poynting A-OMNI-0702-V1-01 omnidirectionele Wi-Fi M2M-antenne, grijs, N-type, 8 dBi

The Poynting A-OMNI-0702-V1-01 is a high-performance omni-directional antenna designed for Wi-Fi and M2M applications. With dual-band support for 2.4 GHz and 5 GHz frequencies, it delivers a peak gain of 8 dBi on both bands, ensuring robust and reliable wireless connectivity. The antenna features a rugged UV-stable ASA enclosure in grey, rated IP68 for outdoor use, and includes an N-Type female connector. It is ideal for industrial, marine, and IoT environments where consistent signal coverage is critical.

Advantages

This antenna offers 360° horizontal coverage with narrow vertical beamwidths (15° at 2.4 GHz, 10° at 5 GHz), maximizing signal strength in the desired direction. Its durable construction withstands harsh weather conditions, operating from -40°C to +70°C and surviving winds up to 160 km/h. The included U-bolt bracket simplifies pole or wall mounting, making installation quick and secure.

Suitable for

• Wi-Fi networks requiring extended range and coverage
• M2M and IoT deployments in industrial or outdoor settings
• Marine applications needing reliable communication
• Point-to-multipoint wireless systems

Key specifications

• Antenna Type: Omni-directional
• Frequency Bands: 2.4 GHz & 5 GHz (Dual-Band)
• Peak Gain: 8 dBi (both bands)
• VSWR: < 2:1
• Polarization: Vertical
• Horizontal Beamwidth: 360°
• Vertical Beamwidth: 15° (2.4 GHz), 10° (5 GHz)
• Impedance: 50 Ohm
• Connector: N-Type Female
• Enclosure: UV Stable ASA, Grey
• Protection: IP68
• Operating Temperature: -40°C to +70°C
• Wind Survival: 160 km/h

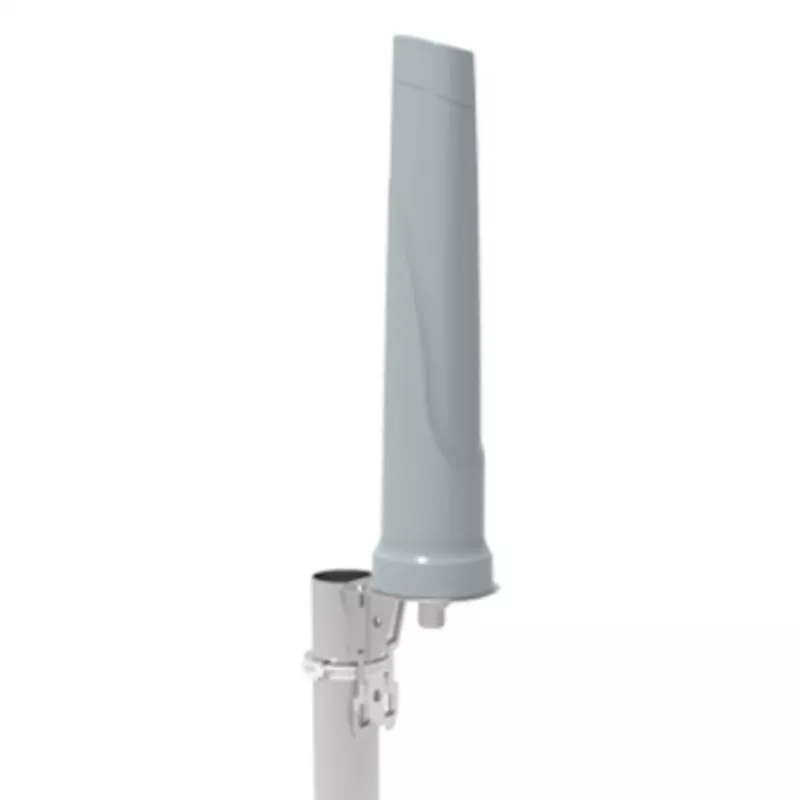

• Mounting: Pole/Wall Mount (U-bolt bracket included)

Recommendations

For optimal performance, pair this antenna with a compatible Wi-Fi access point or M2M gateway. Ensure proper grounding and weatherproofing of the connector. The antenna is designed for outdoor use but can also be used indoors where high gain is required.
