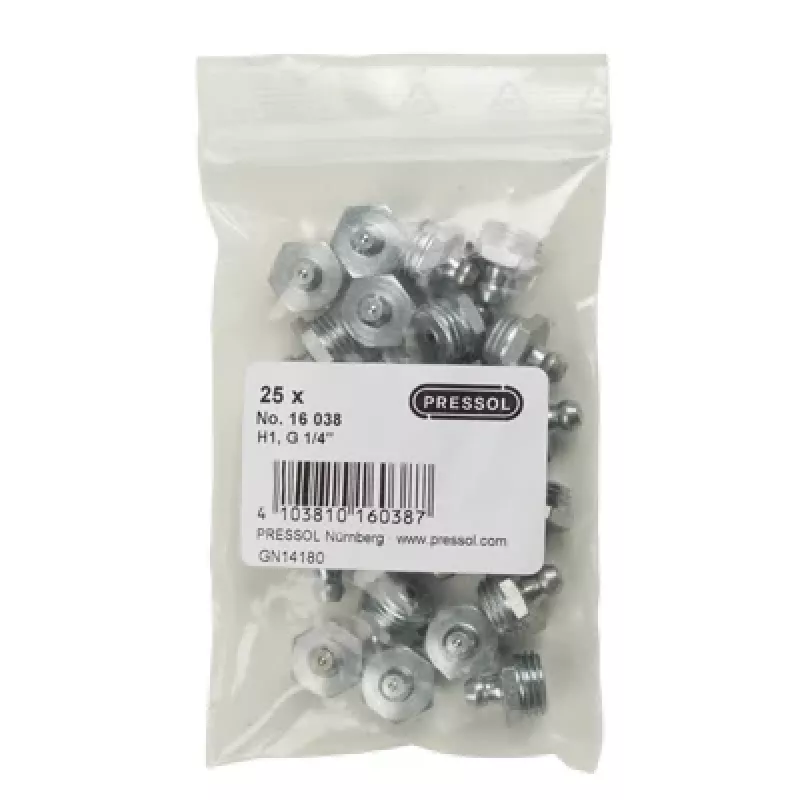

Pressol kegelsmeernippel H1 recht G 1/4 verzinkt 25 stuks (16 038)

Maintenance technicians and workshop professionals rely on these conical grease nipples for reliable lubrication of bearings, joints, and pivot points on machinery, vehicles, and industrial equipment. The straight design with G 1/4 thread fits standard grease couplers, and the zinc-plated steel body withstands frequent use.

Key specifications

• Type: Conical grease nipple, straight
• Standard: H1 (DIN 71412 H1)
• Thread: G 1/4 BSPP
• Material: Steel, zinc-plated
• Hexagon width: 11 mm
• Overall length: 19 mm
• Head diameter: 6.5 mm
• Head height: 4.5 mm
• Thread length: 6.5 mm
• Max. operating pressure: 400 bar
• Pack quantity: 25 pieces

Why choose it

The H1 conical profile ensures a tight seal with standard grease gun couplers, while the zinc plating provides good corrosion resistance. The hexagon body allows secure tightening with a wrench, and the straight orientation is ideal for accessible lubrication points.

Ideal use cases

• Replacing worn or damaged grease nipples on industrial machinery
• Equipping new bearing housings or pivot joints
• Maintaining agricultural, construction, and automotive equipment

Good to know

Supplied in a pack of 25, these nipples are compatible with standard grease guns and couplers. The G 1/4 thread is common in European machinery.
