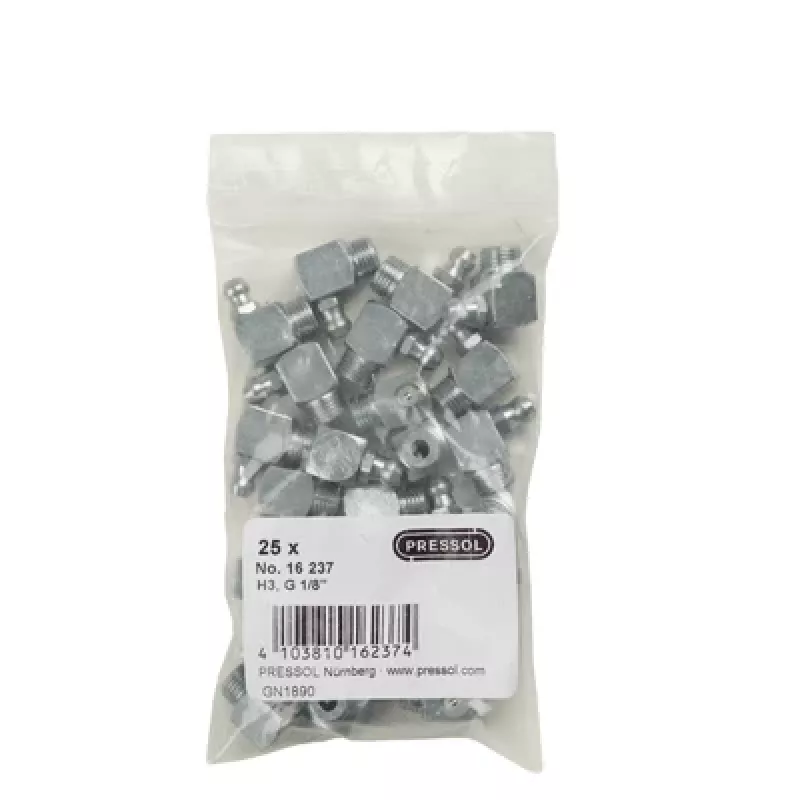

Pressol kegelsmeernippel H3-90°, G 1/8, verzinkt staal, 25-pack (16 237)

With a maximum operating pressure of 400 bar, this conical grease nipple delivers reliable lubrication under demanding conditions.

Overview

The Pressol 16 237 is a 90° conical grease nipple conforming to DIN 71412 H3. It features a G 1/8 parallel thread and a zinc-plated steel body for corrosion resistance. The built-in ball check valve prevents backflow and contamination. Each pack contains 25 pieces.

What stands out

• 90° angle for easy access in confined spaces
• Zinc-plated steel for durability
• Ball check valve seals against dirt and moisture
• Wrench size 9 mm, head diameter 6.5 mm
• Operating temperature from -30°C to +100°C

Technical details

• Standard: DIN 71412 H3
• Thread: G 1/8 (BSPP)
• Material: Steel, zinc-plated
• Wrench size: 9 mm
• Head diameter: 6.5 mm
• Thread length: 6.5 mm
• Overall length: 20 mm
• Max. operating pressure: 400 bar
• Temperature range: -30°C to +100°C
• Pack quantity: 25

Our verdict

A robust and precise grease nipple for industrial, automotive, and agricultural applications where high-pressure lubrication is required.
