Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)

Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
-9%
Black Week
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
Bankboekjesprinter (matrixprinter) Epson PLQ-35 – 24-pin, 540 cps, 180 x 360 DPI (C11CJ11401)
386,20 €
423,25 €−9%
PDF
PDF
Voorraad 6 Code 1430957 Model C11CJ11401 Garantie 2 jaar

Bezorging & retourneren

Verwachte bezorgdatum dinsdag 8 december
Je blijft op de hoogte via ons uitgebreide trackingsysteem
Betaalopties
BetaalkaartVisaMastercardApple PayGoogle PayBankoverschrijving

Omschrijving

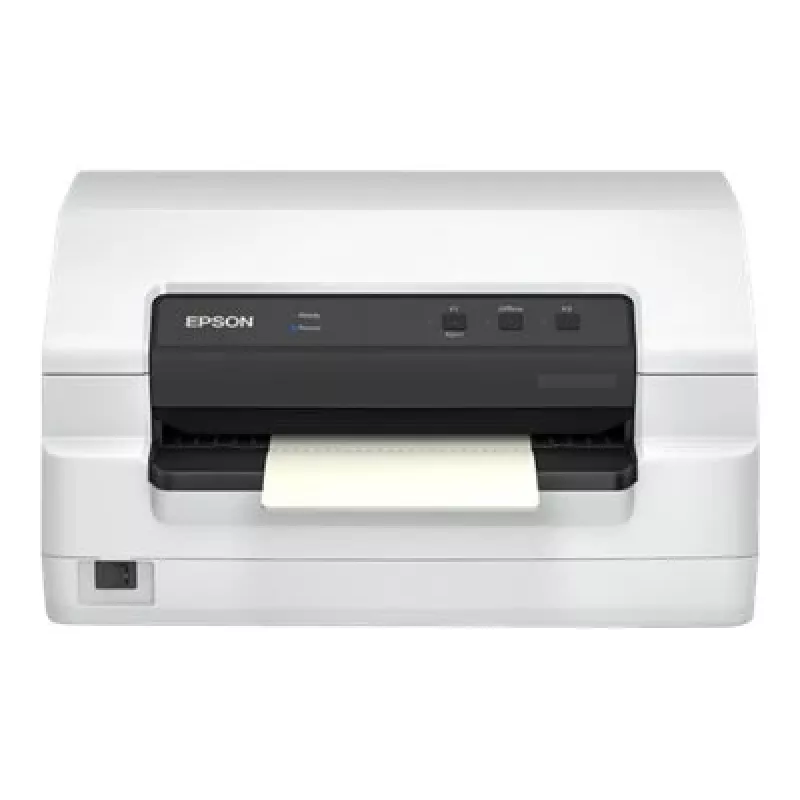

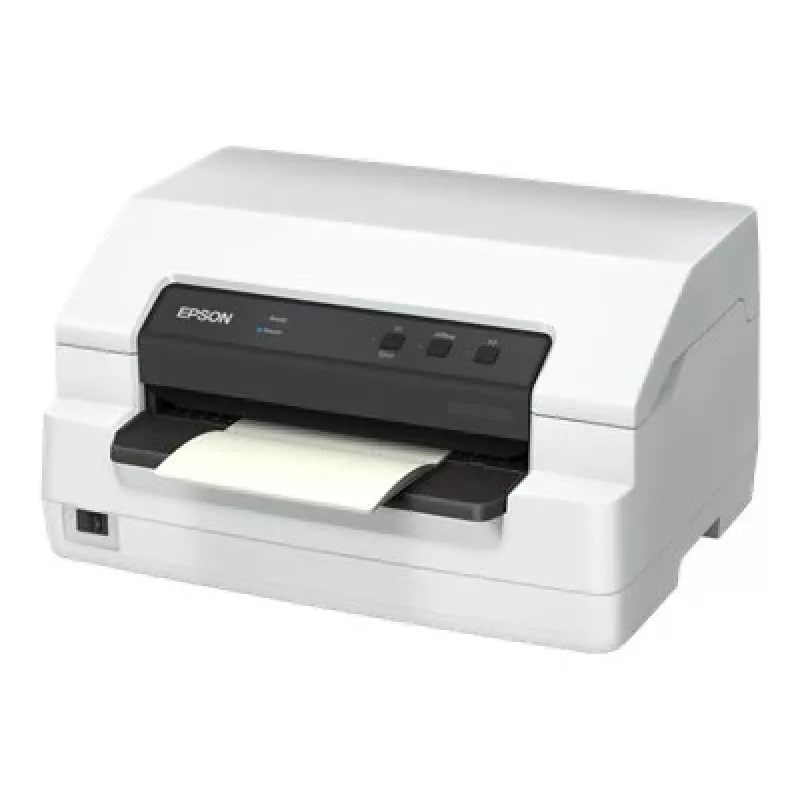

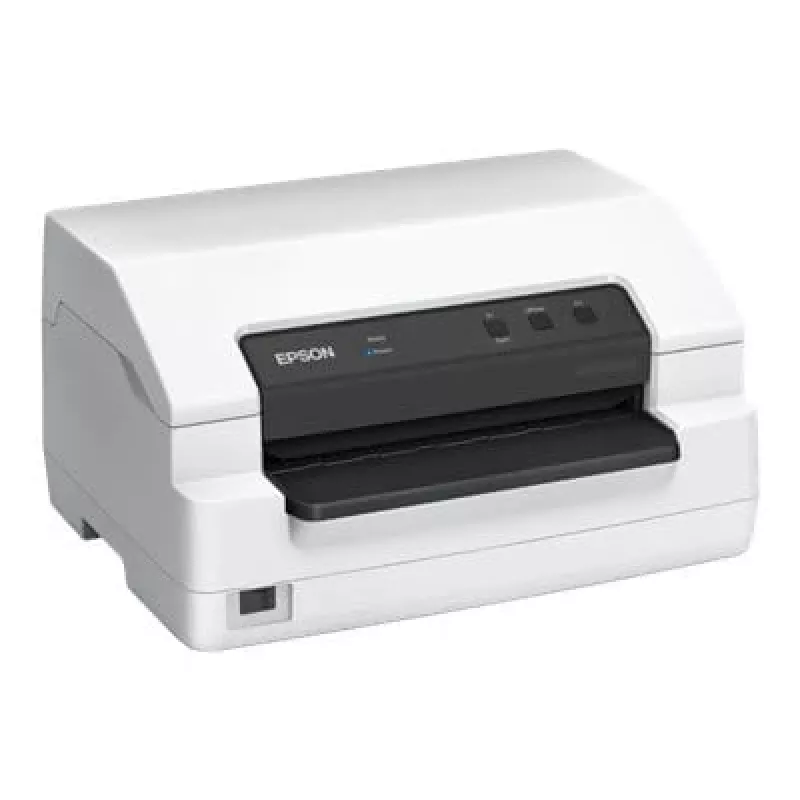

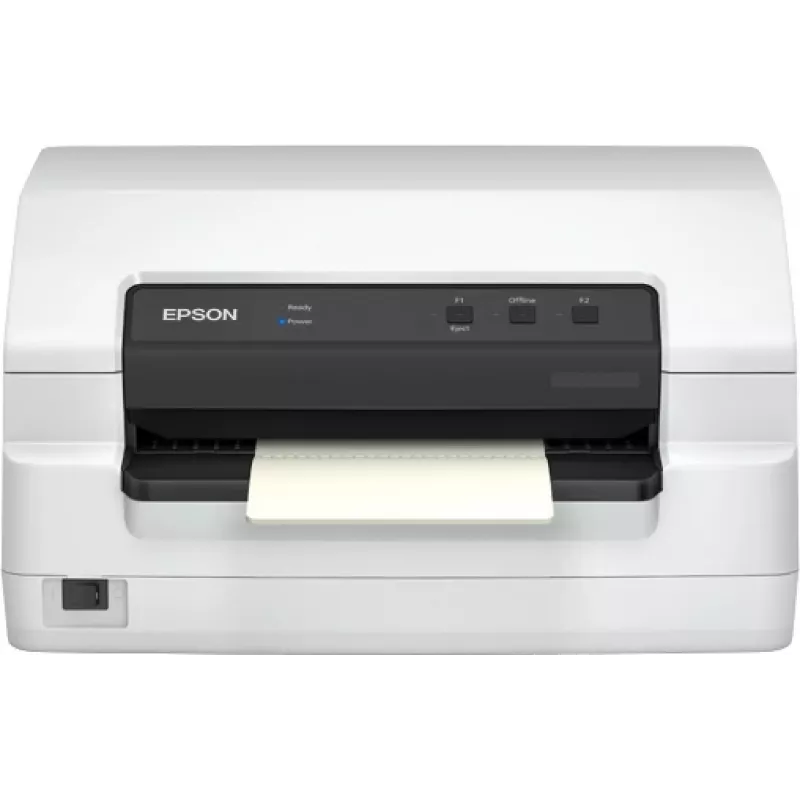

The Epson PLQ-35 is a fast, quiet passbook printer designed for high-volume environments such as banks and government offices. It uses 24-pin dot matrix printing with a maximum resolution of 180 x 360 and can handle passbooks up to 2.6 mm thick. The compact white unit supports USB 2.0, RS-232 and parallel interfaces and offers low standby power consumption and long ribbon life for reduced operating costs.

Advantages

The PLQ-35 operates at low noise levels (around 55 dBA) while delivering high-speed draft printing up to 585 cps, helping to reduce customer queues. It features a 128 KB memory for flexible data processing and reliable passbook handling. Standby power is low (approximately 4.5 W) and in draft mode the printer can produce millions of characters between ribbon changes, contributing to a low total cost of ownership. Multiple emulations are available for straightforward integration into existing IT environments.

Suitable for

  • Banks and financial institutions — high-volume passbook printing
  • Government offices — document issuance and record keeping
  • Service counters — quiet customer-facing printing
  • Back-office environments needing durable, long-run dot-matrix output

Key specifications

  • Print head: 24-pin
  • Maximum resolution: 180 x 360
  • Maximum printing width: 94 columns
  • Passbook thickness capacity: up to 2.6 mm
  • Memory: 128 KB
  • Standard interfaces: USB 2.0, RS-232 (serial), Parallel
  • Product colour: White
  • Weight: 7.8 kg

How to use

Place the passbook in the feed slot according to the guide marks and select the appropriate passbook format in your host application or printer driver. Choose draft mode for fastest output or higher-quality mode when clearer text or graphics are required. Use the provided emulation setting that matches your system for reliable communication over USB, RS-232 or parallel connection. Replace the ribbon when print density becomes faint; in draft mode a ribbon typically lasts for millions of printed characters.

Recommendations

For consistent long-term performance, keep the feed path clean and use passbooks within the specified maximum thickness. Select the correct emulation in the driver, perform routine ribbon and platen checks, and use draft mode for high-throughput tasks to minimize operating costs while switching to higher quality modes for documents that require clearer output.

Belangrijkste kenmerken
  • Quiet operation: Noise levels as low as 55dBA
  • Energy-efficient: 4.5W standby power consumption
  • Low TCO: Long-life ribbon
  • Flexible: Handles passbooks up to 2.6mm thick
  • Easy installation: Parallel, serial and USB interfaces
  • 180 x 360 DPI 540 cps White
  • 55 dB
  • Buffer size: 128 KB
  • Standard interfaces: Parallel, RS-232, USB 2.0
  • Print head: 24-pin 400 million characters
  • Mean time between failures (MTBF): 35000 h
  • 61 W

Specificaties

Specificaties
Aantal per verpakking
1 pc(s)
Aantal tekens
14
AC-ingangsfrequentie
50 - 60 Hz
AC-ingangsspanning
220-240 V
Bedrijfstemperatuur (T-T)
5 - 38 °C
Bitmap-lettertypen
Courier, Draft, OCR-B, Orator, Orator-S, Prestige, Roman, Sans Serif, Script, Script C
Breedte
384 mm
Breedte verpakking
365 mm
Buffergrootte
128 KB
Diepte
280 mm
Diepte verpakking
455 mm
Diktebereik enkel vel
0.065 - 0.19 mm
Diktebereik meerlagig papier
0.12 - 0.53 mm
Geharmoniseerd Systeem (HS)-code
84433210
Geluidsdrukniveau (printen)
55 dB
Gemiddelde tijd tussen storingen (MTBF)
35000 h
Gewicht
7.8 kg
Gewicht verpakking
9.27 kg
Hoogte
203 mm
Hoogte verpakking
255 mm
Ingebouwde barcodes
CODABAR (NW-7), Code 128 (A/B/C), Code 39, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Land van herkomst
Indonesië
Levensduur printkop
400 miljoen tekens
Maximaal aantal kopieën
6 kopieën
Maximale afdrukbreedte (kolommen)
94
Maximale printsnelheid
540 cps
Maximale printsnelheid (concept)
360 cps
Maximale printsnelheid (LQ)
120 cps
Maximale printsnelheid (NLQ)
180 cps
Maximale resolutie
180 x 360 DPI
Naalden
24 (2 x 12)
Opslagtemperatuur (T-T)
-30 - 60 °C
Paginabeschrijvingstalen
Epson ESC/P2, PPDS
Palletgewicht (VK)
0 g
Printkop
24-pin
Printtechnologie
Matrix
Producten per pallet (VK)
48 pc(s)
Productkleur
Wit
Relatieve luchtvochtigheid tijdens gebruik (H-H)
10 - 85%
Schaalbare lettertypen
Roman T, Sans Serif H
Standaardinterfaces
Parallel, RS-232, USB 2.0
Stroomverbruik (stand-by)
0.7 W
Stroomverbruik (typisch)
61 W
Tekenafstand
10 cpi
Tekensets
PCAPTEC, PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO 8859-15, Roman 8, Italic
