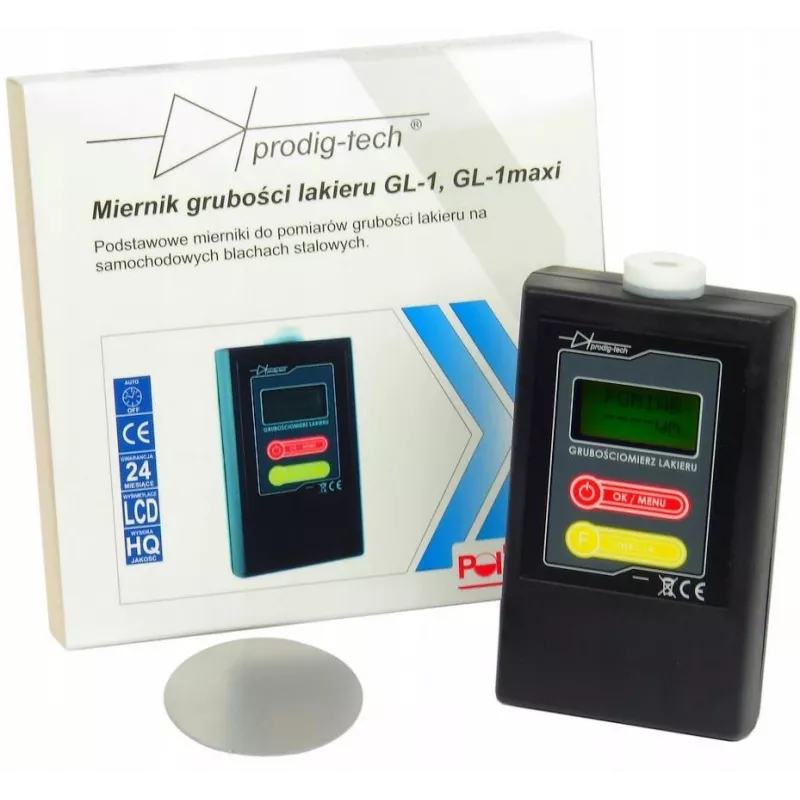

Prodig-tech GL-1 FE Verf Diktemeter voor Ferrometalen

The Prodig-tech GL-1 FE is a professional paint thickness gauge designed for measuring coating thickness on ferrous metal substrates such as steel and galvanized steel. With a measurement range of 0 to 1100 µm and an integrated spring-loaded probe, this device ensures accurate and reliable readings for quality control and inspection tasks.

Advantages

High accuracy with automatic calibration and zeroing function; easy-to-read backlit LCD display; supports both single and continuous measurement modes; sound signal confirms each measurement; compact and portable with protective case included.

Suitable for

• Automotive paint inspection
• Industrial coating thickness measurement
• Quality assurance in manufacturing
• Marine and construction coating checks

Key specifications

• Measurement Type: Ferrous Metals (Steel, Galvanized Steel)
• Measurement Range: 0 to 1100 µm
• Resolution: 10 µm
• Accuracy: ±(10 µm + 2%) for 0-500 µm; ±(20 µm + 2%) for 500-1100 µm
• Probe: Integrated, spring-loaded
• Display: Backlit LCD
• Units: µm
• Calibration: Automatic, zeroing function
• Measurement Modes: Single, Continuous
• Sound Signals: Yes
• Power: 1x 9V battery (6F22)
• Auto Shut-off: After 2 minutes
• Operating Temperature: -20°C to 40°C
• Min. Measurement Area: 15 mm diameter
• Min. Curvature Radius: 10 mm convex/concave
• Accessories: 9V battery, steel calibration plate, calibration foil (200 µm), protective case, manual

Recommendations

For best results, calibrate the gauge before each use and ensure the surface is clean and dry. Ideal for professionals in automotive, industrial, and quality control sectors.
