Projector-plafondbeugel kindermann Premium 100 maximale belasting 25 kg aluminium

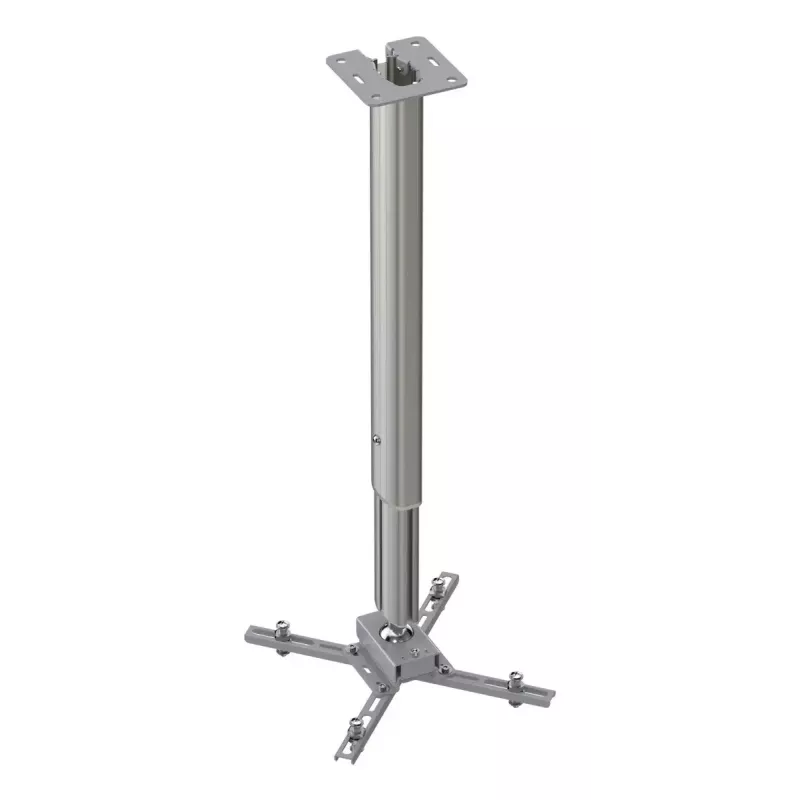

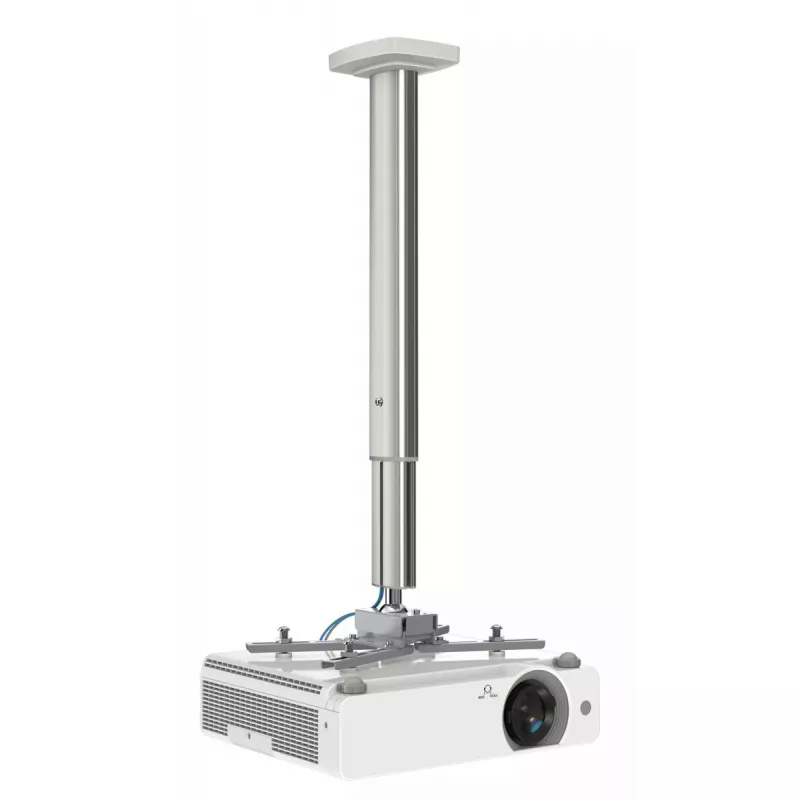

Ceiling mount for data and video projectors made from anodized aluminium, designed for secure installation and flexible adjustment. The mount supports a projector-to-ceiling distance of 61–100 cm in the standard configuration and carries up to 25 kg. It includes an aluminium ball-joint with a quick-change system and a fully covered interior cable channel for a neat installation.

Advantages

The profile is newly developed and anodized with a fully covered interior cable channel to protect and conceal cables. The unit is pre-assembled for quicker mounting and features stepless telescopic height adjustment. The aluminium ball-joint allows tilting ±20° in any direction and rotation ±180°. Fixing points range from 138 to 378 mm and the product is TÜV/GS certified. Custom columns up to 300 cm are available on request.

Suitable for

Key specifications

How to use

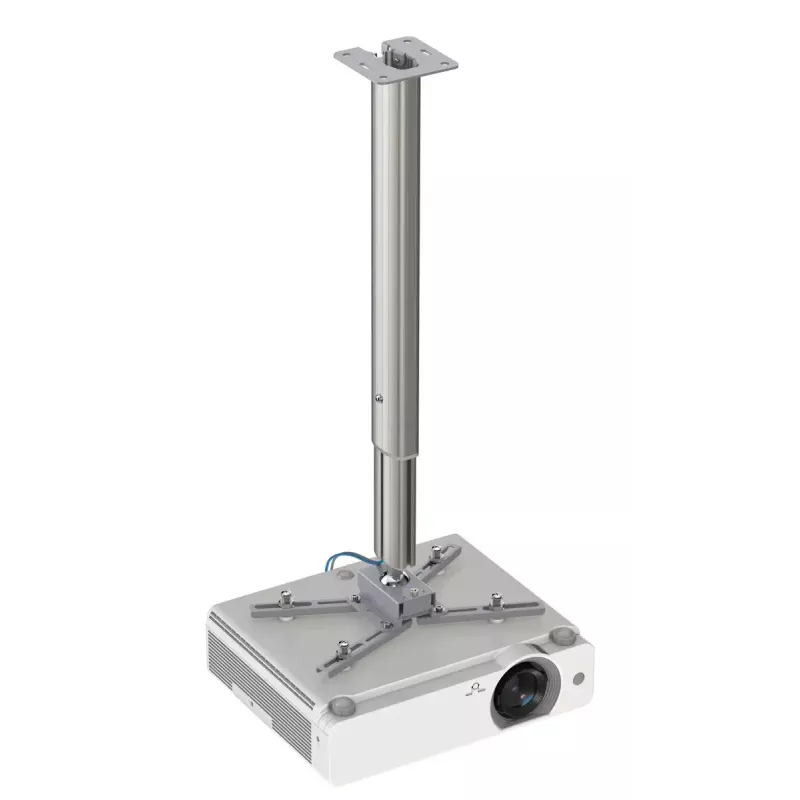

Attach the ceiling plate to a suitable structural ceiling using appropriate anchors (not included), set the desired length within the 61–100 cm range by adjusting the telescopic column, and fasten the projector to the mount using the supplied screw set (M3, M4, M5, M6) and height-adjustable distance elements. Use the aluminium ball-joint to tilt and rotate the projector to align the image, then secure all fasteners to prevent movement.

Recommendations

Ensure the ceiling substrate and anchors are rated for the combined weight of the mount and projector (max. 25 kg). For installations requiring longer drops, request a custom column (up to 300 cm) and confirm load and rigidity with the installer. Regularly check mounting fasteners and cable routing for wear or loosening.
