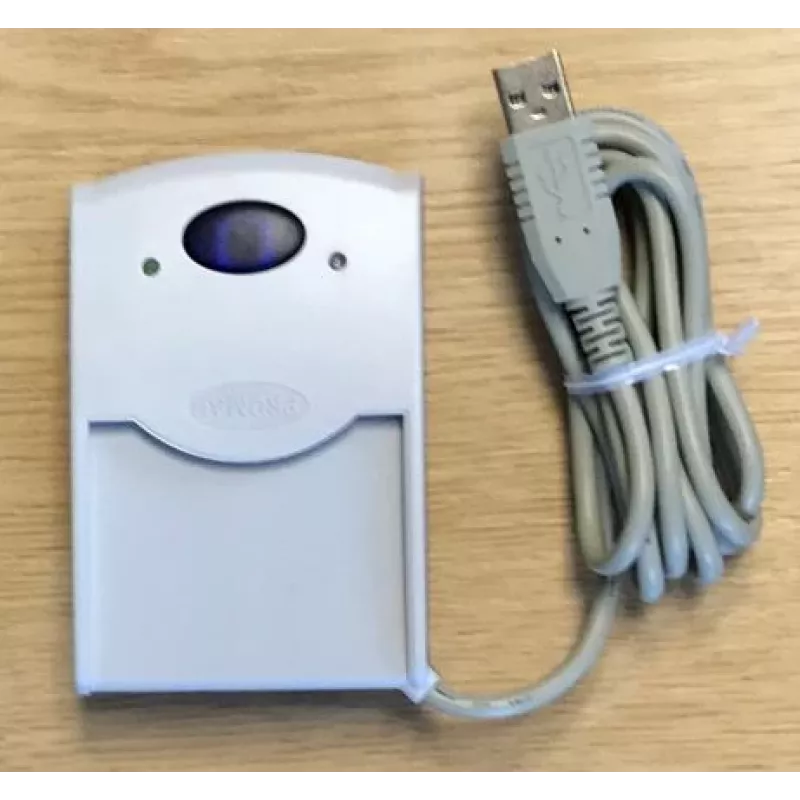

Promag PCR330M HF afstandslezer USB 13.56 MHz

The Promag PCR330M is a high-performance HF distance reader designed for contactless identification and data exchange. Operating at 13.56 MHz, it supports multiple RFID standards including ISO 14443A/B, ISO 15693, and NFC Forum. With a USB interface, it offers easy plug-and-play connectivity and is compatible with Windows, Linux, Mac OS, and Android (with OTG). The reader features a reading distance of up to 8 cm, dual-color LED indicators, and a beeper for status feedback. Its compact and robust ABS housing makes it suitable for various environments.

Advantages

Versatile RFID support ensures compatibility with a wide range of transponders such as MIFARE Classic, Ultralight, DESFire, NTAG, FeliCa, and ICODE SLI. The USB interface provides both HID keyboard emulation and virtual COM port modes, simplifying integration. Firmware upgradability and SDK availability allow for customization and future-proofing. Low power consumption via USB bus power eliminates the need for external power supplies.

Suitable for

• Access control systems
• Time and attendance tracking
• Contactless payment terminals
• Identification and authentication solutions
• Inventory management

Key specifications

• Operating Frequency: 13.56 MHz
• Supported RFID Standards: ISO 14443A/B, ISO 15693, NFC Forum
• Interface: USB (HID Keyboard Emulation / Virtual COM Port)
• Max Reading Distance: Up to 8 cm (3.15 inches)
• Power Supply: USB Bus Powered (DC 5V)
• Indicators: 2-Color LED (Red/Green), Beeper
• Supported Transponders: MIFARE Classic, MIFARE Ultralight, MIFARE DESFire, NTAG, FeliCa, ICODE SLI
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 10% to 90% RH (non-condensing)
• Housing Material: ABS
• Certifications: CE, FCC
• OS Compatibility: Windows, Linux, Mac OS, Android (with OTG)
• Data Output Format: Configurable (e.g., Decimal, Hexadecimal, ASCII)
• Firmware Upgradable: Yes
• SDK Availability: Yes (for Windows, Linux, Android)
• USB Cable Length: 1.5 m

Recommendations

For optimal performance, ensure the reader is placed on a non-metallic surface and within the specified operating temperature range. Use with compatible transponders to achieve maximum reading distance. The device is ideal for developers and integrators looking for a reliable HF RFID solution.
