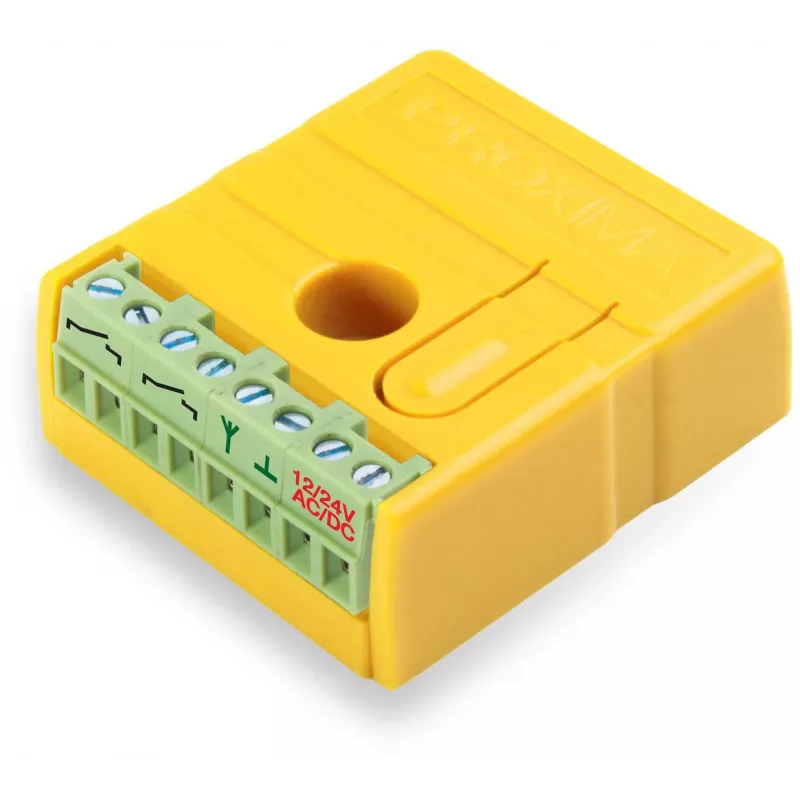

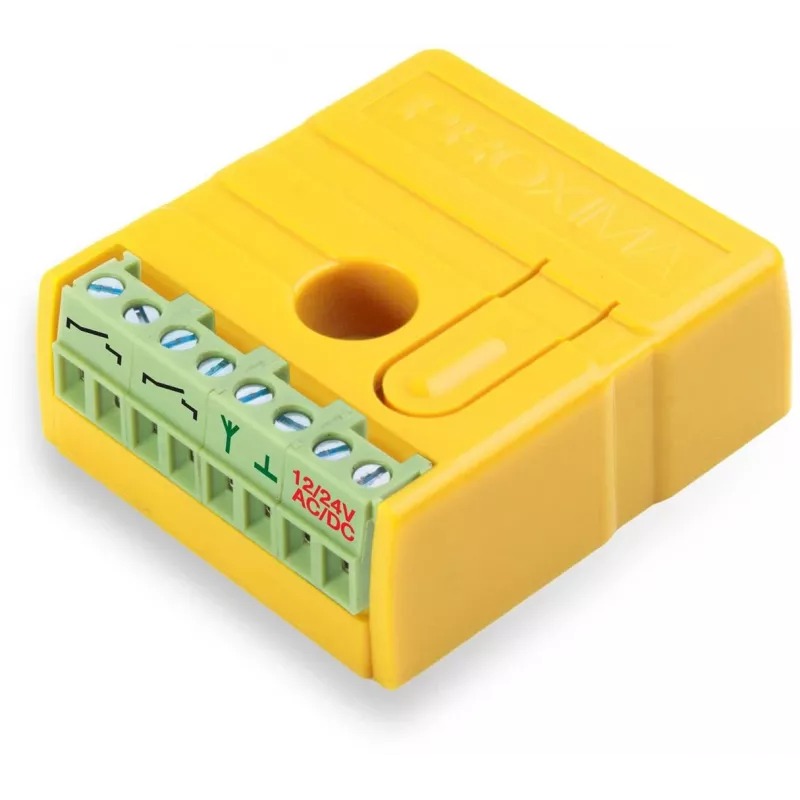

Proxima NW2_819 FL besturingseenheid/ontvanger voor NICE FLOR, 433,92 MHz, 2-kanaals, 12-24V AC/DC

Automation projects often stall when a control unit cannot talk to existing NICE FLOR remote controls. This Proxima NW2_819 FL controller/radio receiver solves that by acting as a direct bridge: it listens for fixed-code 433.92 MHz signals from NICE FLOR remotes and switches two independent relay outputs accordingly.

Who is it for

Installers and advanced DIY users who need to add remote-control capability to gate motors, garage door openers, or access control systems that already use NICE FLOR fixed-code remotes. It suits both new installations and retrofits where the original receiver is missing or faulty.

Main features

• Compatible with NICE FLOR fixed-code remote controls
• Two independent relay channels for controlling separate devices
• Self-learning button for quick remote programming – no PC needed
• Memory for up to 999 remote controls
• Wide 12-24V AC/DC power supply range
• Internal antenna with terminal for optional external antenna
• LED indicator for programming and status feedback
• Compact DIN-rail mountable housing with screw terminals

Specifications

• Operating frequency: 433.92 MHz
• Modulation: AM
• Number of channels: 2
• Relay output type: Normally Open (NO)
• Max relay load (DC): 1A / 30V DC
• Max relay load (AC): 0.5A / 125V AC
• Power supply: 12-24V AC/DC
• Memory capacity: 999 remote controls
• Learning method: Self-learning via button
• Antenna: Internal, with terminal for external antenna
• Operating temperature: -20°C to +70°C
• Protection rating: IP20
• Technology: Microprocessor controlled
• Security: Fixed code (non-rolling code)
• LED indicator: Yes

Tips

Mount the receiver as close as possible to the controlled device and away from large metal surfaces to maximise radio range. If the signal is weak, connect an external antenna tuned for 433.92 MHz to the dedicated terminal. Use the self-learning button to add or remove remotes – the LED confirms each step.
