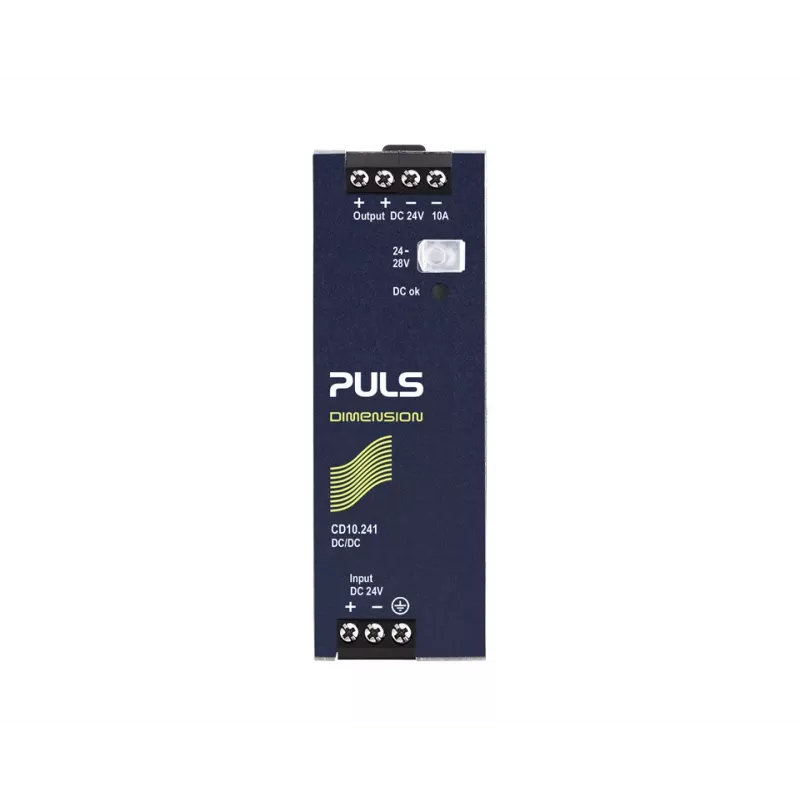

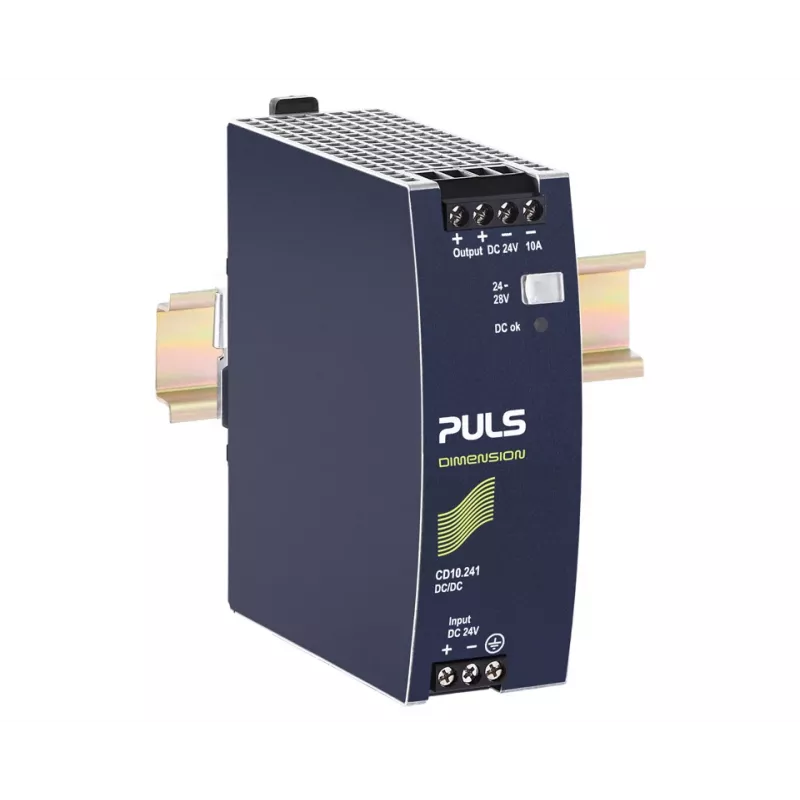

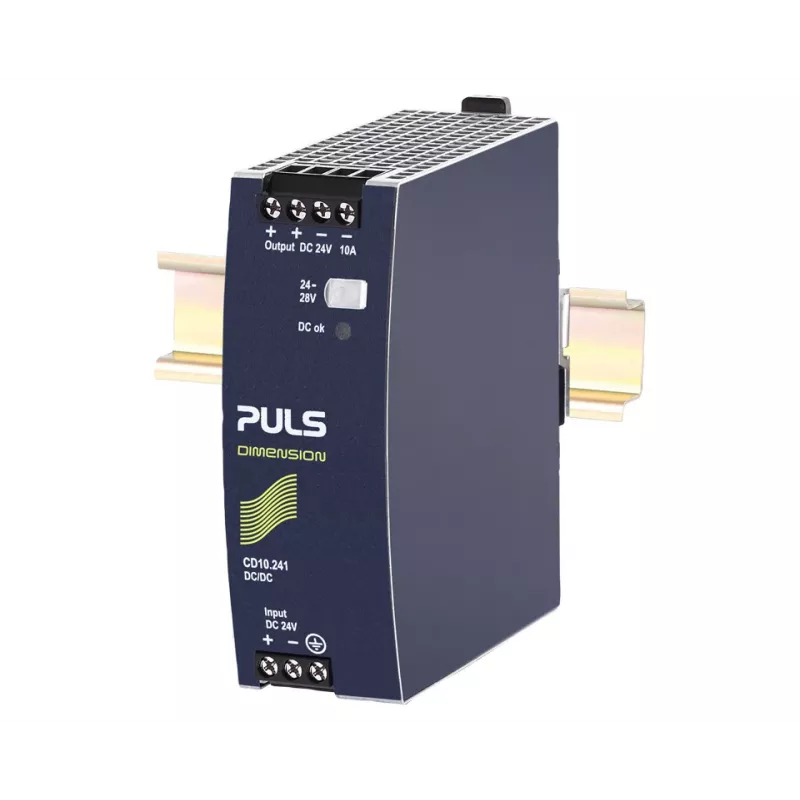

PULS CD10.241 DC/DC-converter 24V 10A 240W DIN-rail

Industrial and marine applications often face unstable DC input voltages that can disrupt sensitive 24V loads. The PULS CD10.241 DC/DC converter solves this by converting a fluctuating 18-32 VDC input into a stable, adjustable 24 VDC output with up to 240W of power. Its high efficiency and rugged design ensure reliable performance in demanding environments.

Who is it for

This converter is ideal for system integrators, panel builders, and maintenance engineers who need to power 24V equipment from a 24V battery system or other DC source with voltage variations. It is particularly suited for marine, industrial automation, and process control applications where space is limited and reliability is critical.

Main features

• Wide input range: 18-32 VDC
• Adjustable output: 24-28 VDC, factory set at 24V
• High output current: 10A continuous
• Excellent efficiency: 95.2%
• Low ripple and noise: < 50 mVpp
• DIN rail mounting for easy installation
• Convection cooling, no fan required
• Comprehensive protection: overload, short-circuit, over-voltage, over-temperature
• High isolation: 2.5 kVAC between input and output
• Long lifetime: MTBF > 1,000,000 hours

Specifications

• Input voltage: 18-32 VDC
• Input current (max): 12.5 A
• Output voltage: 24 VDC (adjustable 24-28 VDC)
• Output current: 10 A
• Output power: 240 W
• Efficiency: 95.2%
• Ripple and noise: < 50 mVpp
• Hold-up time: > 20 ms
• Operating temperature: -25 to +70 °C
• Degree of protection: IP20
• Connection type: Screw terminals
• Number of outputs: 1

Tips

When installing, ensure adequate ventilation around the unit to maintain performance at high ambient temperatures. Use appropriate wire sizes for the screw terminals to handle the maximum current. For marine applications, verify that the specific marine approvals meet your vessel's requirements.
