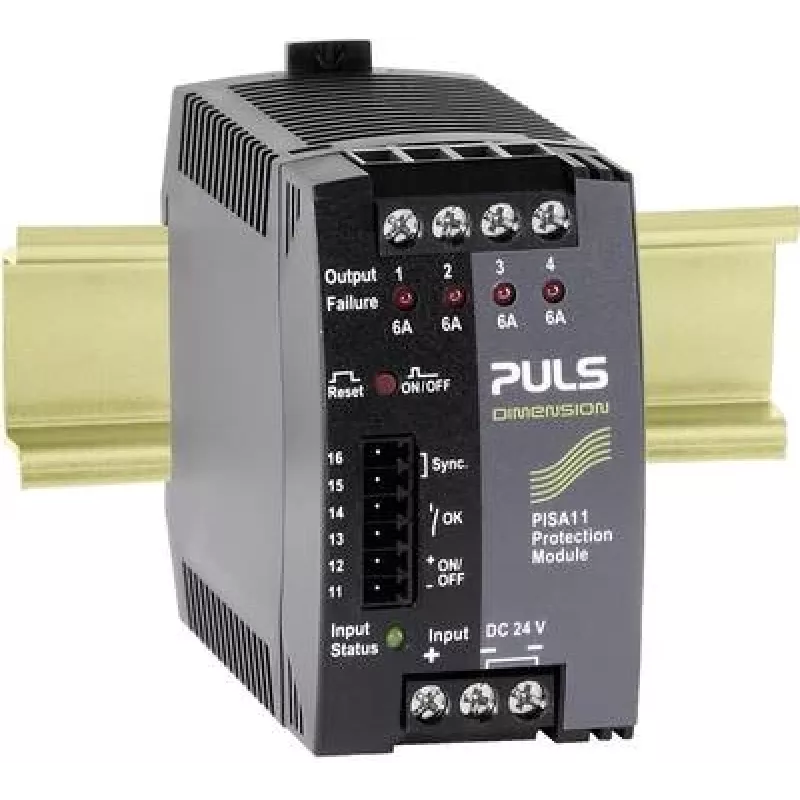

PULS DIMENSION PISA11.406 4-kanaals elektronische beveiligingsschakelaar module 24V DC 4x6A

The PULS DIMENSION PISA11.406 is a 4-channel electronic circuit breaker module for 24V DC systems, providing selective protection with adjustable current limits per channel up to 6A. It safeguards connected loads against overloads and short circuits while ensuring maximum system availability through automatic reset after fault clearance.

Advantages

Each of the four channels can be individually set to 2A, 3A, 4A, or 6A, allowing precise adaptation to the load requirements. The module features fast tripping on short circuits and current limiting for overloads, preventing nuisance tripping and reducing downtime. A common alarm contact provides remote status monitoring, and per-channel LEDs give clear visual indication of operational state.

Suitable for

• 24V DC industrial control systems
• Machine building and automation applications
• Protection of sensors, actuators, and PLC I/O
• DIN rail mounting in control cabinets

Key specifications

• Input voltage: 24V DC (18-32V DC)
• Number of channels: 4
• Output current per channel: selectable 2A, 3A, 4A, 6A
• Total output current: 24A
• Mounting: DIN rail
• Operating temperature: -25°C to +70°C
• Degree of protection: IP20

Recommendations

For reliable protection of multiple 24V DC circuits, the PISA11.406 offers a compact and efficient solution. Its electronic design eliminates the need for replacement fuses and ensures consistent performance over time.
