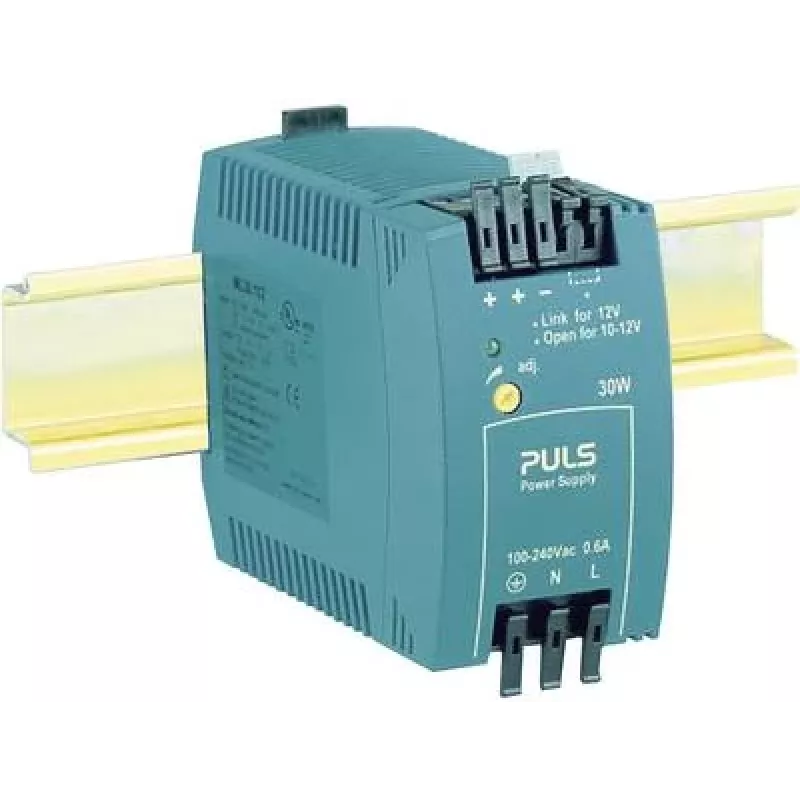

PULS MiniLine ML30.102 DIN-rail voeding 12V DC 2,5A 30W

The PULS MiniLine ML30.102 delivers 30W of stable 12V DC power from a compact DIN rail housing. Its wide-range 100-240V AC input and convection cooling make it suitable for industrial control cabinets where space is limited.

Highlights

• 12V DC output at 2.5A (30W)
• Auto-ranging 100-240V AC input, 50-60Hz
• DIN rail mounting (TS35/7.5 or TS35/15)
• Convection cooled, no fan required
• Efficiency up to 87.5%

In daily use

The ML30.102 maintains a hold-up time of more than 20ms at 115V AC, bridging brief mains interruptions. Output ripple and noise stay below 50mVpp, ensuring clean power for sensitive loads. Screw terminals provide secure connections.

Full specifications

• Input voltage: 100-240V AC (auto-ranging) / 110-150V DC
• Output voltage: 12V DC
• Output current: 2.5A
• Output power: 30W
• Efficiency: up to 87.5%
• Input frequency: 50-60Hz
• Output ripple & noise: <50mVpp
• Hold-up time: >20ms (at 115V AC)
• Operating temperature: -10°C to +70°C (derating above +60°C)
• Protection features: overload, short-circuit, overvoltage
• MTBF: >1,000,000 hours (SN 29500, 40°C)
• Connection type: screw terminals
• Housing material: metal (aluminium)

Final note

The ML30.102 is a reliable power source for DIN rail installations, with a wide operating temperature range and robust protection features.
