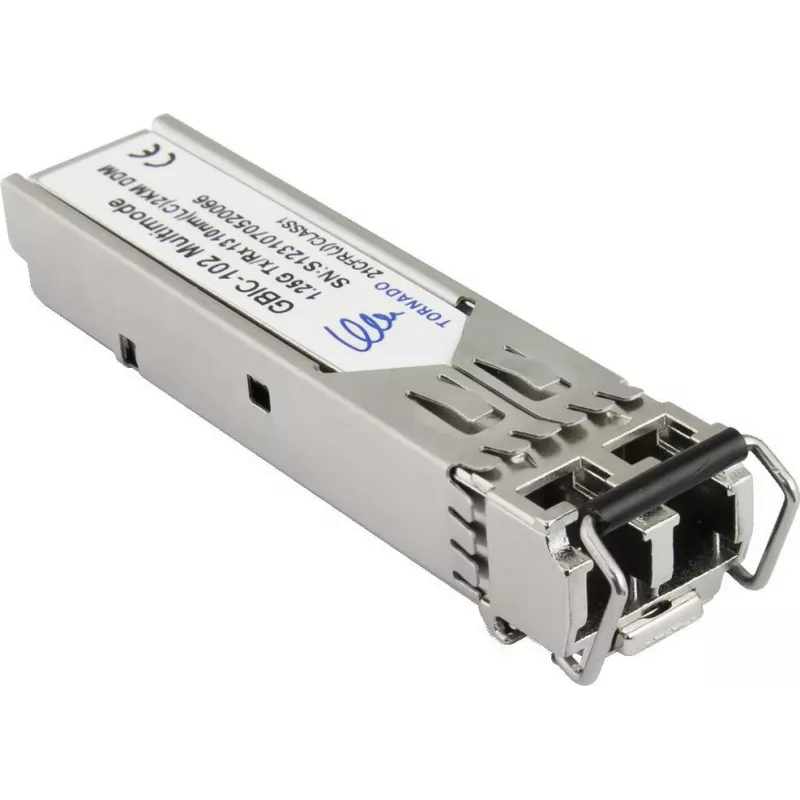

PULSAR GBIC-102 SFP-module 1,25 Gbit/s 1310 nm 20 km LC singlemode

The PULSAR GBIC-102 is a high-performance SFP (Small Form-Factor Pluggable) transceiver module designed for Gigabit Ethernet and Fibre Channel applications. It operates at a data rate of 1.25 Gbps with a wavelength of 1310 nm, supporting single-mode fiber (SMF) transmission distances up to 20 km. The module features a duplex LC connector and is fully compliant with MSA and IEEE 802.3z 1000BASE-LX/LH standards. With built-in Digital Diagnostic Monitoring (DDM/DOM), it enables real-time monitoring of operating parameters for enhanced network management.

Advantages

Hot-pluggable design allows for easy installation and replacement without network downtime. Low power consumption (<1W) ensures energy efficiency. Metal casing provides durability and effective heat dissipation. The module supports full-duplex operation, maximizing data throughput.

Suitable for

• Gigabit Ethernet networks (1000BASE-LX/LH)
• Fibre Channel storage area networks
• SONET/SDH applications
• Data center interconnects
• Enterprise and campus network uplinks

Key specifications

• Module Type: SFP
• Data Rate: 1.25 Gbps
• Wavelength: 1310 nm
• Max Distance: 20 km (SMF)
• Connector: Duplex LC
• Fiber Type: Single-Mode (OS2)
• DDM/DOM: Yes
• Operating Temp: 0°C to 70°C
• Power Supply: +3.3V
• Power Consumption: <1W
• Compliance: MSA, IEEE 802.3z

Recommendations

For optimal performance, use with single-mode fiber patch cables (OS2) and ensure compatibility with your switch or router SFP slot. The module is hot-pluggable, so no power cycle is required during installation.
