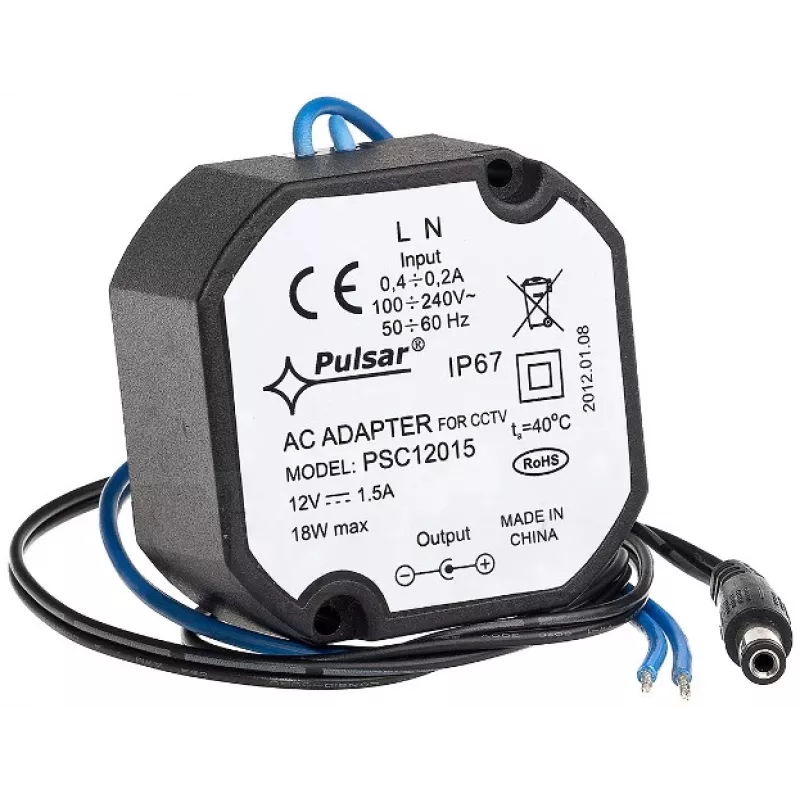

PULSAR PSC12015 hermetische schakelvoeding 12V/1,5A 18W IP67

The PULSAR PSC12015 is a high-quality hermetic switching power supply designed for reliable performance in demanding environments. With an IP67 rating, it is dust-tight and protected against temporary immersion in water, making it ideal for outdoor, industrial, and security applications. This power supply delivers a stable 12V DC output at 1.5A (18W) and features comprehensive protection including short circuit, overload, and overvoltage protection.

Advantages

Fully encapsulated in a plastic housing with IP67 protection, the PSC12015 ensures long-term reliability even in harsh conditions. Its passive cooling design means silent operation with no moving parts. The wide input voltage range (176-264V AC) makes it suitable for global use, and high efficiency (>85%) reduces energy waste.

Suitable for

• Security cameras and CCTV systems
• LED lighting installations
• Industrial automation equipment
• Outdoor electronic devices
• Access control systems

Key specifications

• Output Voltage: 12V DC
• Output Current: 1.5A
• Output Power: 18W
• Input Voltage: 176-264V AC
• Input Frequency: 50/60 Hz
• Protection: SCP, OLP, OVP
• Efficiency: >85%
• Operating Temperature: -25°C to +50°C
• Cooling: Passive (convection)
• Enclosure Rating: IP67
• Connections: Input and output wires with stripped ends
• Ripple and Noise: <120mVp-p
• Certifications: CE, RoHS

Recommendations

For best performance, ensure adequate ventilation around the power supply. The unit is designed for free-standing or cable-mounted installation. Always verify that the connected load does not exceed the rated output current.
