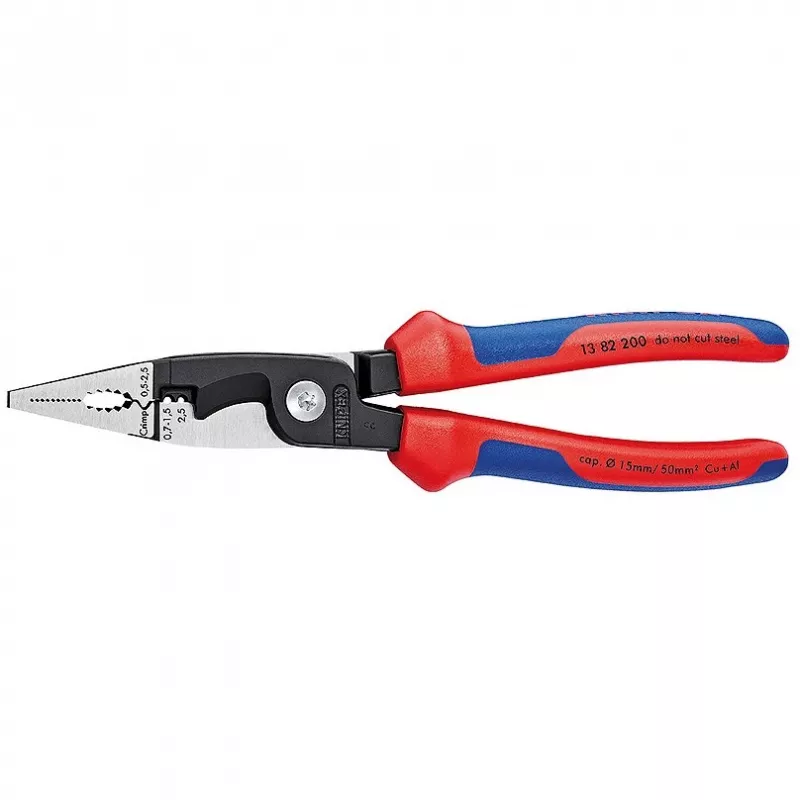

Punttang Knipex 13 82 200

The Knipex 13 82 200 needle-nose multifunctional pliers combine six functions in a single tool designed for electrical installation work. Made from high-grade forged, oil-hardened special tool steel with comfortable plastic handles, these 200 mm pliers are built for precise work in confined spaces. The slim, long jaws allow gripping, bending, deburring, cutting and crimping tasks commonly required by electricians and technicians.

Advantages

This pair of pliers offers six integrated functions: smooth tip surfaces for handling single cores without damage, serrated gripping faces and a pipe grip for flat and round materials, a clear-cut outside jaw edge for work on flush-mounted junction boxes and for deburring feed-through holes, dedicated stripping holes for conductors 0.75–1.5 mm² and 2.5 mm², a crimp die for wire-end ferrules 0.5–2.5 mm², and precision cable shears with induction-hardened cutting edges for copper and aluminium up to 5 x 2.5 mm² or 15 mm diameter. A bolted joint ensures precise, zero-backlash operation and a slim profile gives easy access in tight locations. In the spring-assisted version an intelligent latching mechanism permits controlled gripping without fully opening the pliers while keeping the cutting edge closed and protected.

Suitable for

• Electrical installation and maintenance tasks
• Gripping and manipulating flat and round conductors
• Stripping insulation from 0.75–2.5 mm² conductors
• Crimping wire-end ferrules 0.5–2.5 mm²
• Cutting copper and aluminium cables up to 5 x 2.5 mm² or 15 mm diameter
• Bending and deburring feed-through holes and junction boxes

Key specifications

• Brand: Knipex
• Model / MPN: 13 82 200
• EAN: 4003773075080
• Length: 200 mm
• Weight: 280 g
• Material: High-grade special tool steel, forged, oil-hardened
• Functions: gripping, bending, deburring, cutting, stripping, crimping (6-in-1)
• Stripping sizes: 0.75–1.5 mm² and 2.5 mm²
• Crimp die for ferrules: 0.5–2.5 mm²
• Cable cutting capacity: copper/aluminium up to 5 x 2.5 mm² or Ø 15 mm
• Features: slim jaws, clear-cut outside jaw edge, bolted joint, induction-hardened cutting edges

How to use

Place the conductor or component between the appropriate area of the jaws according to the required function: use the smooth tip surfaces for delicate single cores, the serrated section or pipe grip for stronger hold on flat or round material, the stripping holes for the matching conductor cross-section, and the crimp die for inserting and compressing wire-end ferrules. For cutting, position the cable in the precision cutting edges and apply steady force. Use the outside jaw edge for deburring or working in flush-mounted boxes. Operate the pliers with standard hand pressure; if using the spring-assisted version, the latching mechanism enables controlled gripping without fully opening the tool.

Recommendations

For safe and long-lasting performance, keep cutting edges clean and free of corrosion, avoid cutting hardened or steel wires, and select the correct stripping hole or crimp die for the conductor size. Inspect the bolted joint periodically and do not use the pliers on live electrical circuits.
