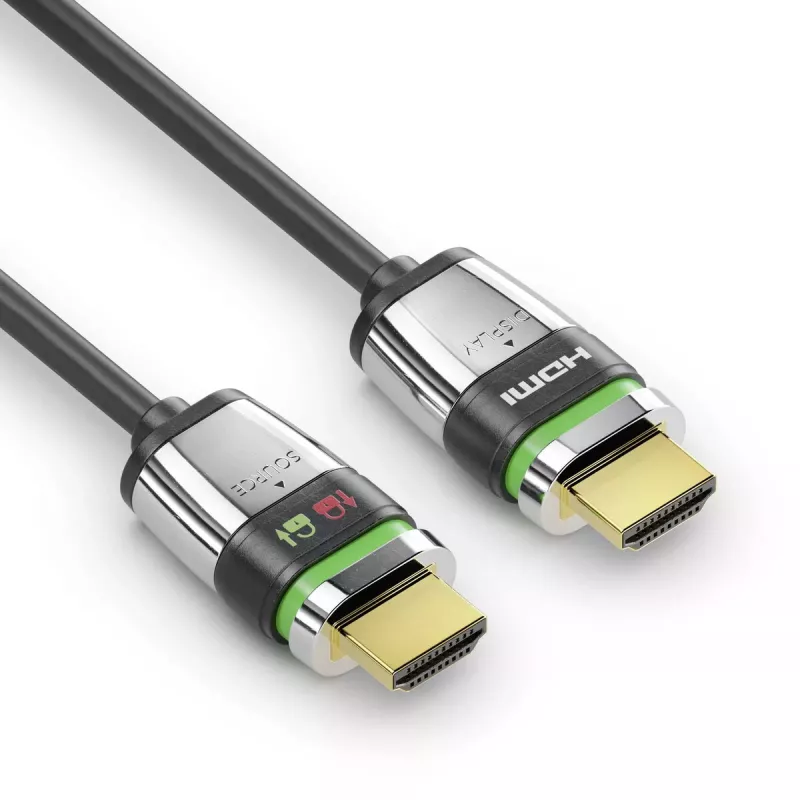

HDMI-kabel FiberX FX-I375-007 7 m HDMI Type-A zwart

The PureLink FiberX FX-I375-007 is a 7 m HDMI Type A cable engineered for high-bandwidth audio and video transmission. This hybrid AOC (Active Optical Cable) integrates optical fibers for the AV stream and copper conductors for power and control signals, enabling HDMI 2.1 performance over longer distances than conventional copper-only cables. The cable supports up to 48 Gbps bandwidth for resolutions up to 8K UltraHD-2 at 60 Hz, HDCP 2.3, ARC/eARC and transparent EDID handling, while maintaining low attenuation and immunity to electromagnetic interference. The compact 4.5 mm diameter and halogen-free jacket make the cable suited to tight installations and safer in environments with fire-safety concerns.

Advantages

The FiberX FX-I375-007 delivers HDMI 2.1 capabilities with 48 Gbps throughput, supporting high-resolution video and lossless digital audio. Gold-plated precision contacts and PureLink's Ultra-Lock-System™ (ULS™) secure connectors provide reliable, corrosion-resistant connections. The hybrid fiber-copper construction allows long-distance transmission without external power supply, offering low signal attenuation and strong EMI resistance. Its slim design permits tight bend radii for flexible routing in racks or behind displays.

Suitable for

• Home cinema systems requiring high-resolution video up to 8K/60Hz
• Professional AV installations in conference rooms and auditoriums
• Rack and cabinet installations where tight bend radius is needed
• Setups that require EMI-resistant, long-distance HDMI links

Key specifications

• Connector type: HDMI Type A male to HDMI Type A male
• Length: 7 meters
• Bandwidth: up to 48 Gbps (HDMI 2.1 Ultra High Speed)
• Supported resolution: up to 8K UltraHD-2 at 60 Hz
• Construction: hybrid optical fiber for AV, copper for power and data
• Cable diameter: approximately 4.5 mm
• EMI resistance and low attenuation due to AOC technology
• Halogen-free jacket for reduced smoke in case of fire
• Gold-plated precision contacts and secure locking system (ULS™)

How to use

Connect the HDMI-A male plug marked as the source end to the output of your source device (for example a Blu-ray player, PC or streaming box) and connect the opposite HDMI-A end to the HDMI input of the display, AV receiver or projector. The FiberX FX-I375-007 is a unidirectional active optical cable—observe the directional markings on each end to ensure correct orientation. No external power supply or driver installation is required; the cable uses the HDMI 5V line for the necessary power and supports Plug & Play operation with compatible devices.

Recommendations

The cable supports zero-frame-delay, uncompressed AV transmission up to 48 Gbps, but ensure both connected devices and settings (resolution, refresh rate and HDCP mode) are compatible with HDMI 2.1 features. Avoid bending the cable tighter than the recommended static radius (45 mm) or dynamic radius (90 mm) to preserve fiber integrity and signal quality.
