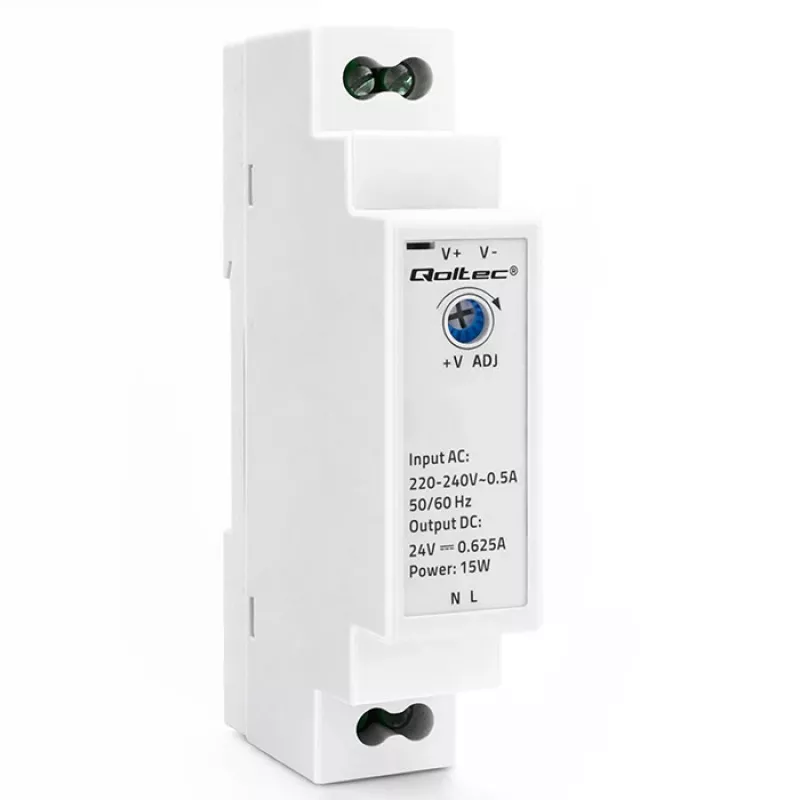

Qoltec DIN-rail voeding 15W 24V 0.625A grijs

The Qoltec DIN Rail Power Supply is a reliable and efficient power solution designed for industrial automation and control systems. With a compact design and passive cooling, it delivers stable 24V DC output at 0.625A (15W) for a wide range of applications.

Advantages

High efficiency >80% reduces energy waste and heat generation. Wide input voltage range (85-264V AC) ensures compatibility with global power grids. Built-in protection features (OVP, OCP, SCP) safeguard connected equipment. Passive convection cooling ensures silent operation and long service life.

Suitable for

• Industrial control cabinets
• Building automation systems
• PLC and sensor power supply
• Security and access control systems

Key specifications

• Output Power: 15W
• Output Voltage: 24V DC
• Output Current: 0.625A
• Input Voltage: 85-264V AC
• Input Frequency: 47-63Hz
• Mounting: DIN Rail (TS-35/7.5 or TS-35/15)
• Efficiency: >80%
• Protection: OVP, OCP, SCP
• Operating Temperature: -20°C to +50°C
• Storage Temperature: -40°C to +85°C
• Enclosure Material: Plastic
• Colour: Grey
• Certifications: CE, RoHS
• Number of Outputs: 1
• Cooling: Passive (Convection)

Recommendations

For optimal performance, ensure proper ventilation and mounting on a standard DIN rail. Suitable for use with Qoltec and other compatible devices.
