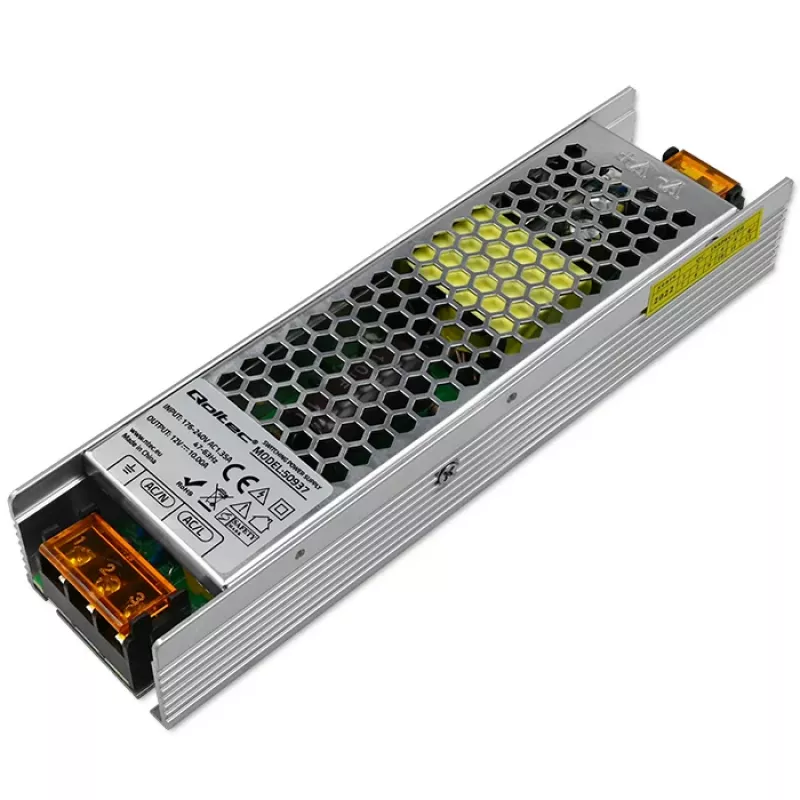

QOLTEC LED-schakelvoeding IP20 120W 12V 10A Slim

The QOLTEC LED Switching Power Supply is a high-performance, slim power supply designed for professional LED lighting applications. With a robust 120W output at 12V DC and 10A, it ensures reliable and efficient power delivery for a wide range of indoor LED installations. Its compact metal housing and passive cooling make it ideal for space-constrained environments where silent operation is required.

Advantages

This power supply offers exceptional efficiency (>85%) and comprehensive protection features including overload, overvoltage, and short circuit protection, ensuring long-lasting performance and safety. The slim form factor allows for easy installation in tight spaces, while the screw terminal connections provide secure and straightforward wiring.

Suitable for

• Indoor LED strip lighting and modules
• Signage and display lighting
• Architectural and accent lighting
• Industrial control systems requiring 12V DC power

Key specifications

• Power Supply Type: Switching
• Application: LED Lighting
• Output Power: 120 W
• Output Voltage: 12 V DC
• Output Current: 10 A
• Input Voltage Range: 100 - 240 V AC
• Input Frequency: 50/60 Hz
• Efficiency: >85%
• IP Rating: IP20
• Protection Features: Overload, Overvoltage, Short Circuit
• Cooling Method: Passive (Convection)
• Form Factor: Slim
• Housing Material: Metal
• Operating Temperature: -20°C to +50°C
• Certifications: CE, RoHS
• Input Connection Type: Screw Terminals
• Output Connection Type: Screw Terminals
• Ripple & Noise: <150 mVp-p
• Usage Environment: Indoor

Recommendations

For optimal performance, ensure adequate ventilation around the power supply. Use appropriate gauge wiring for the input and output connections. This unit is intended for indoor use only and should be installed by a qualified electrician.
