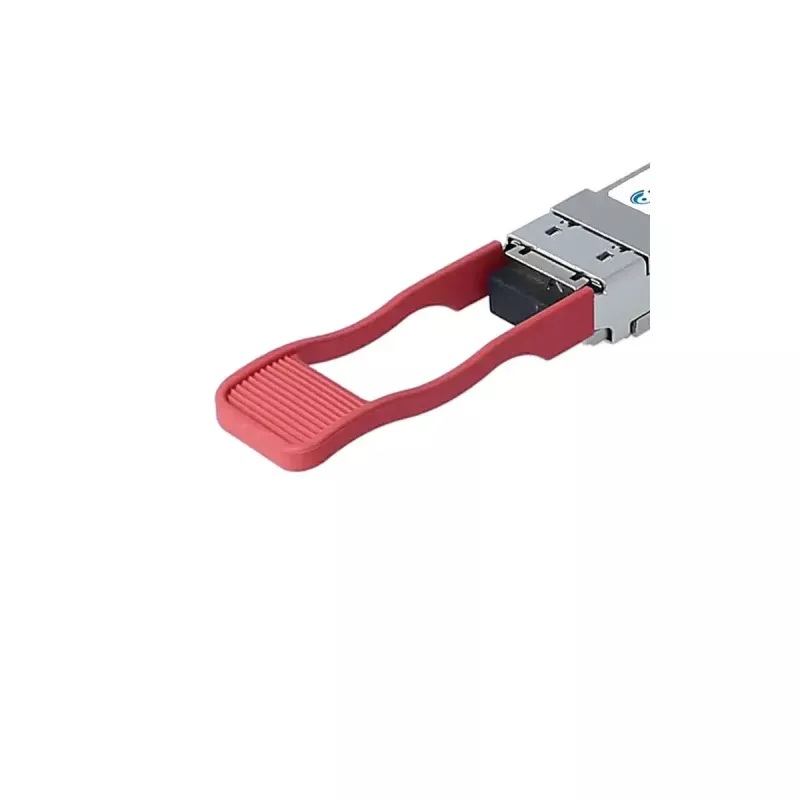

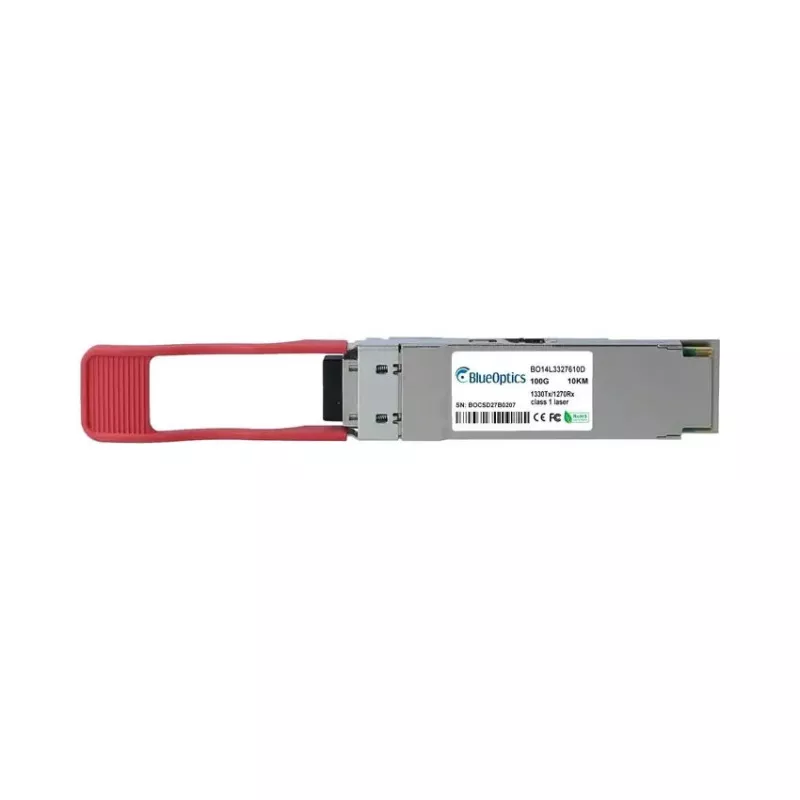

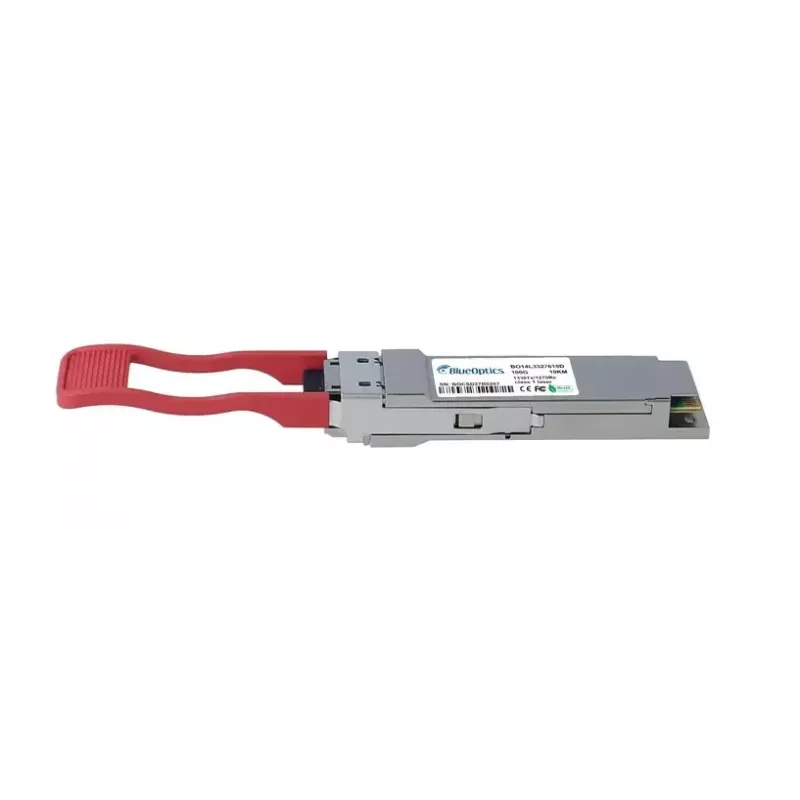

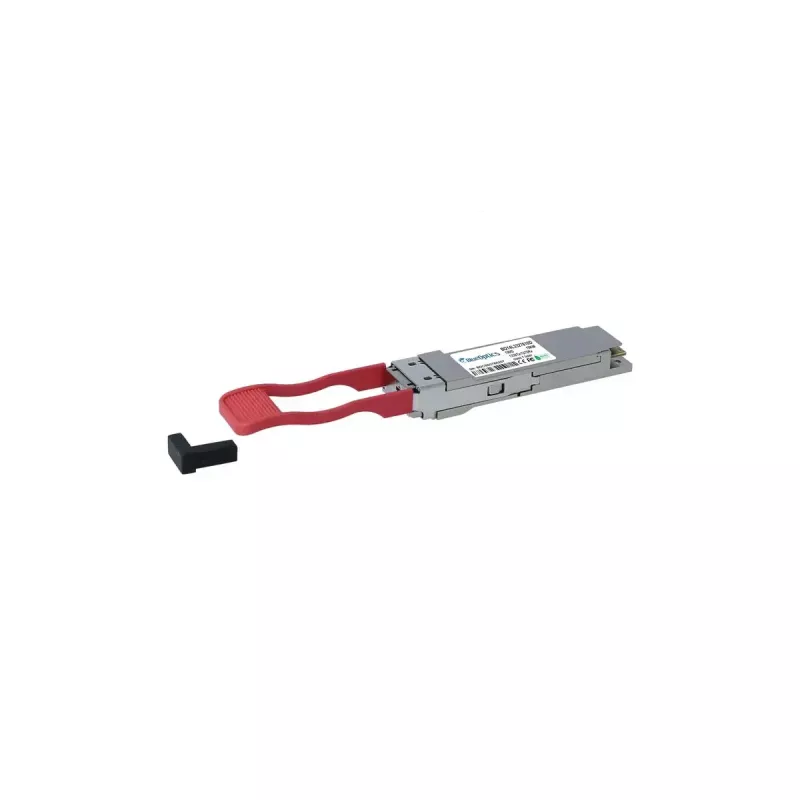

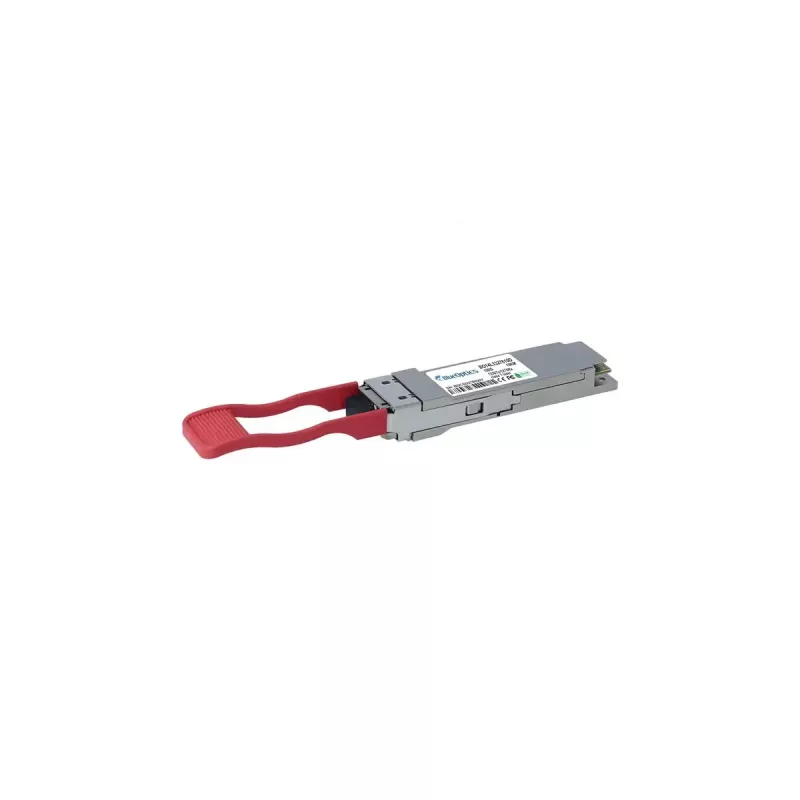

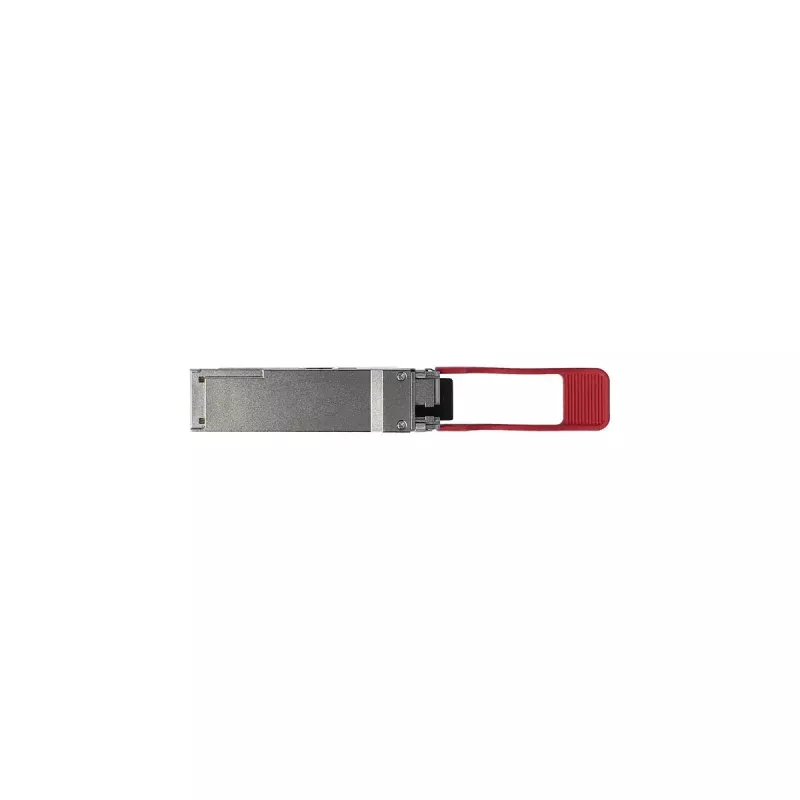

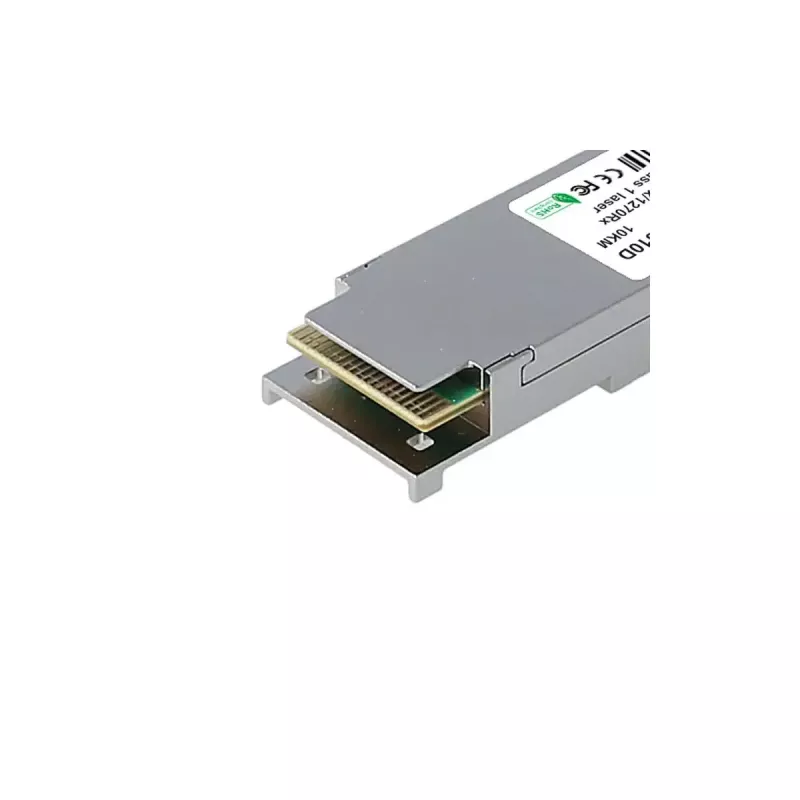

QSFP-transceivermodule BlueOptics QSFP-100G-B10D4-I-BO 100G LC

The BlueOptics QSFP-100G-B10D4-I-BO is a QSFP28 fiber optic transceiver module designed for 100G data transmission over single-fiber LC connections. It implements 100GBASE-LR1-BX-D functionality with separate transmit and receive wavelengths and follows MSA mechanical and electrical specifications for QSFP28. The module is lightweight (approx. 20 g) and built for compatibility with common networking hardware that supports Cisco QSFP-100G-B10D4-I equivalents.

Advantages

This transceiver provides 100 Gbit/s aggregate throughput with LC simplex connectivity and supports digital diagnostics monitoring (DDM/DOM) for real-time readout of voltage, temperature, laser bias current and optical power. Components are selected from established manufacturers and the module is produced to MSA guidelines to ensure interoperability and long service life. The optical design reduces susceptibility to electromagnetic interference and allows long-range single-fiber links when used with matching patch cables and compliant hardware.

Suitable for

Key specifications

How to use

Install the QSFP-100G-B10D4-I-BO into a compatible QSFP28 port on a switch, router or other network device while the host is powered down or following hot-swap procedures recommended by the device vendor. Connect an LC simplex single-fiber patch cable matching the module's bi-directional wavelengths to the module and the remote transceiver. Verify link status and, if required, enable or check DDM/DOM readings through the host system management interface. Ensure that the remote end supports the complementary wavelength pairing and the same data rate.

Recommendations

Use factory-tested single-mode LC patch cabling and confirm host compatibility with third-party QSFP28 modules. If monitoring is required, enable DDM/DOM support in the host and perform routine checks of optical power and temperature. Follow ESD precautions during handling and adhere to the equipment manufacturer's installation guidelines to preserve service life and reliability.
