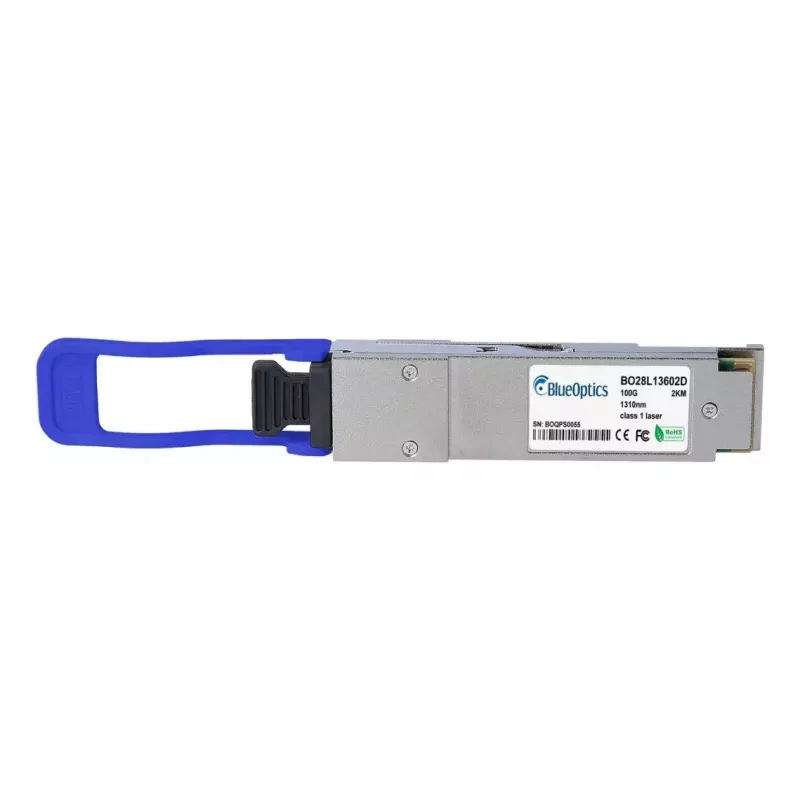

QSFP28-transceivermodule BlueOptics 980-9I17Q-00CM00-BO 100000 Mbit/s

The BlueOptics 980-9I17Q-00CM00-BO is a QSFP28 fiber optic transceiver module designed for 100000 Mbit/s (100 Gbps) high-speed optical links. It is a 100GBASE-CWDM4 QSFP28 form-factor module with LC duplex connectors for single-mode fiber. The module has a silver housing, weighs approximately 40 g, and is specified with an MTBF of 1,000,000 hours. It supports optical transmission over distances up to 2000 m and follows MSA-compatible QSFP28 mechanical and electrical interfaces.

Advantages

The module provides a compact QSFP28 solution for 100 Gbps CWDM4 links using LC duplex connectors, suitable for high-density installations. Its MSA-compliant form factor ensures compatibility with systems that accept QSFP28 optical transceivers. Low weight and a robust silver housing make it suitable for rack-mounted network equipment and confined installation spaces. The long MTBF supports continuous operation in data center and carrier environments.

Suitable for

• 100 Gbps Ethernet links over single-mode fiber
• Fibre Channel over Ethernet and SDH/SONET high-speed applications
• Interconnects between switches, routers, and storage systems up to 2 km
• High-density QSFP28 ports in data centers and carrier networks

Key specifications

• Maximum data transfer rate: 100000 Mbit/s (100 Gbps)
• Maximum transfer distance: up to 2000 m over single-mode fiber
• Connector type: LC duplex
• Supported optical standard: 100GBASE-CWDM4
• Form factor: QSFP28 (MSA-compatible)
• Product colour: Silver
• Weight: 0.04 kg
• MTBF: 1,000,000 hours

How to use

Insert the QSFP28 transceiver into a compatible QSFP28 port on a switch, router or other network device following the host device manufacturer’s instructions. Ensure the device firmware and hardware explicitly support 100GBASE-CWDM4 QSFP28 modules. Connect LC duplex single-mode fiber cables to the module's LC ports, observing correct transmit/receive orientation. After insertion and fiber connection, verify that link LEDs or management interfaces report a stable 100 Gbps link and check optical power and error statistics as needed.

Recommendations

Use single-mode fiber with appropriate LC duplex cabling and keep connectors clean to maintain optical performance. Verify compatibility with the target hardware platform and, if available, test the module in a non-production port before full deployment. Avoid excessive mechanical stress on the module and fibers and follow ESD precautions during handling.
