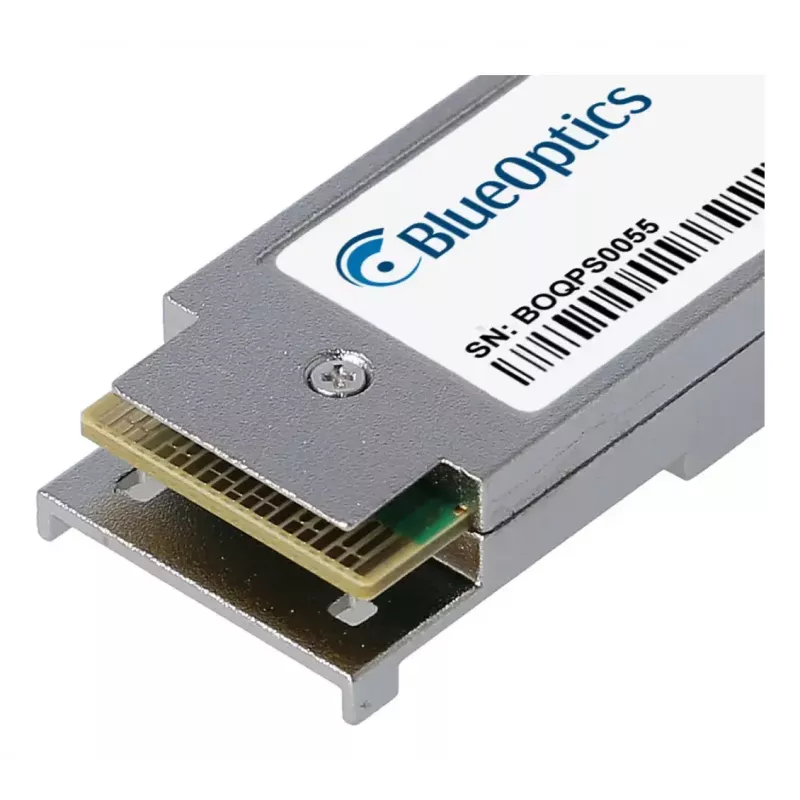

QSFP28-transceivermodule BlueOptics SPTSBP4CLCXX-BO 100000 Mbit/s

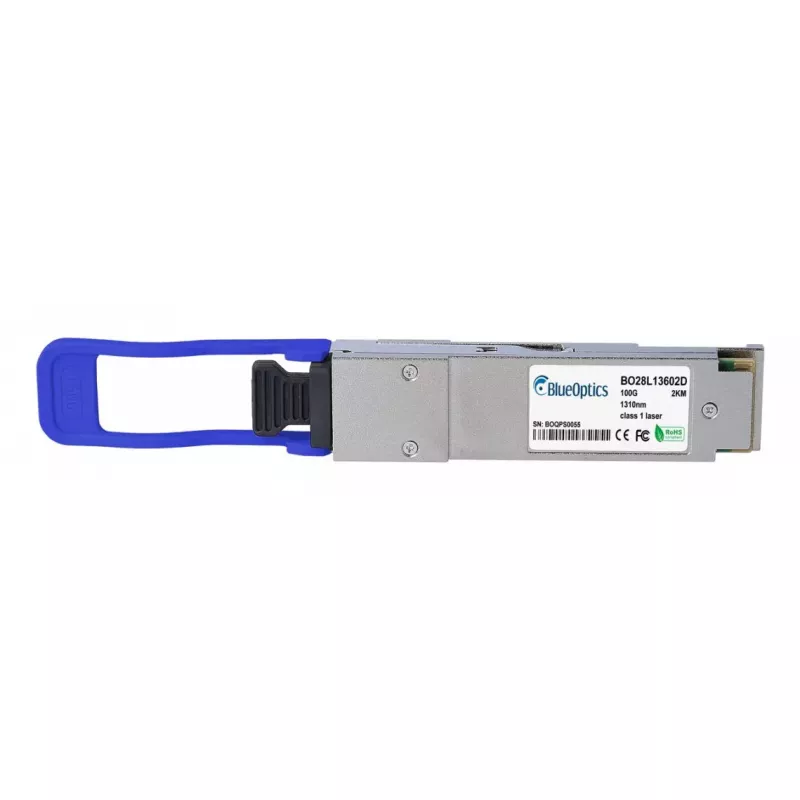

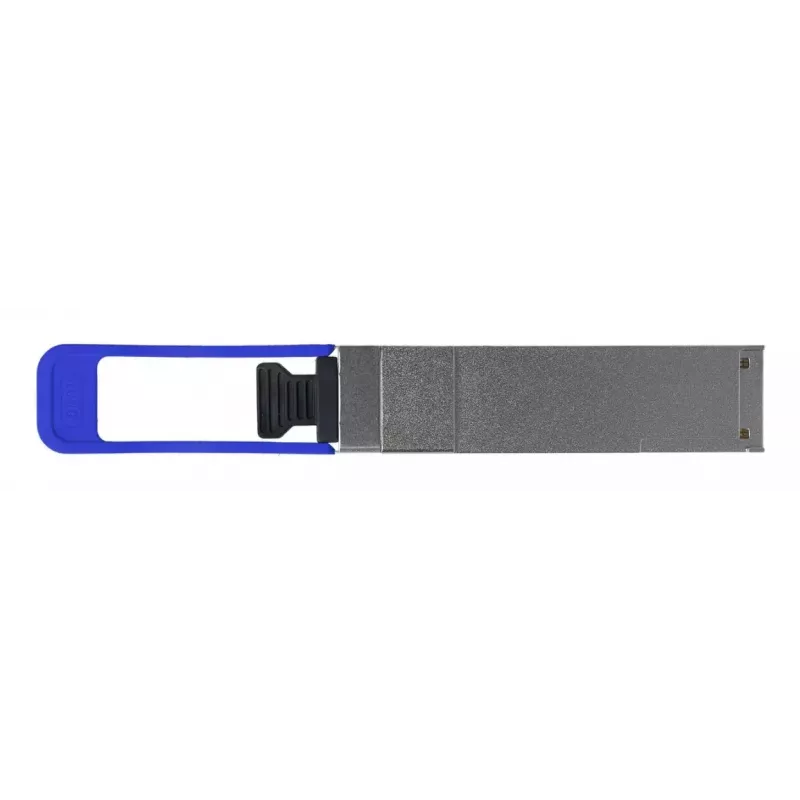

The BlueOptics SPTSBP4CLCXX-BO is a QSFP28 fiber optic transceiver module designed for 100G data links. It uses a QSFP28 form factor and an LC duplex connector, supports single-mode fiber transmission and a maximum data transfer rate of 100000 Mbit/s. The module is silver in color, weighs approximately 40 g, and is built to industry MSA standards for compatibility with major hardware platforms that support the original Intel SPTSBP4CLCXX 100GBASE-CWDM4 transceiver. The device includes digital diagnostic monitoring (DDM/DOM) to provide real-time information about operating parameters.

Advantages

This QSFP28 transceiver provides high-bandwidth 100G performance in a compact form factor that fits standard QSFP28 ports. Compliance with MSA specifications and adaptation for compatibility with Intel SPTSBP4CLCXX platforms ensures interoperability with many switches, routers and storage systems. The integrated DDM/DOM functionality enables remote monitoring of supply voltage, laser current, optical transmit and receive power and temperature for simplified troubleshooting and maintenance. The transceiver is intended for single-mode fiber CWDM4 operation and is constructed using industry-grade components to support long operational life and stable optical links.

Suitable for

Key specifications

How to use

Install the BlueOptics QSFP28 transceiver into a compatible QSFP28 port on a switch, router or other network device that supports 100GBASE-CWDM4 modules. Connect LC duplex single-mode fiber patch cords between transceivers or patch panels, ensuring correct transmit/receive orientation. Confirm that the host device firmware and software support the module and DDM/DOM functions to enable remote diagnostics. Perform link testing and verify optical power and signal quality using network management tools before placing the link into production.

Recommendations

Use high-quality single-mode LC duplex patch cords and, where applicable, CWDM-compatible patching infrastructure to achieve the specified range and performance. Verify host compatibility and enable DDM/DOM in device settings to monitor module health. Protect transceiver ports and fiber connectors from dust and mechanical stress to maintain link reliability.
