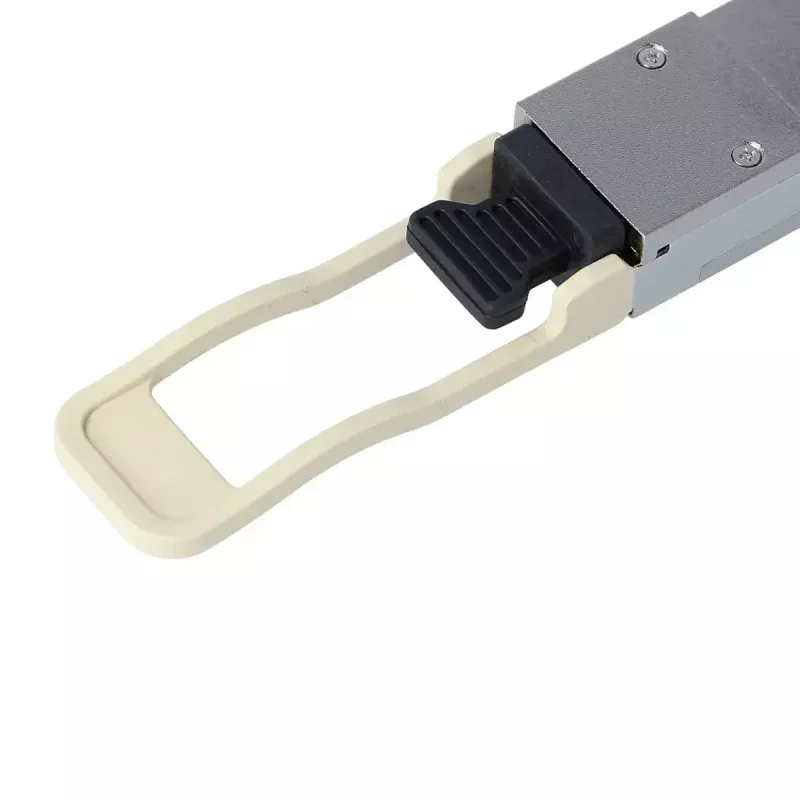

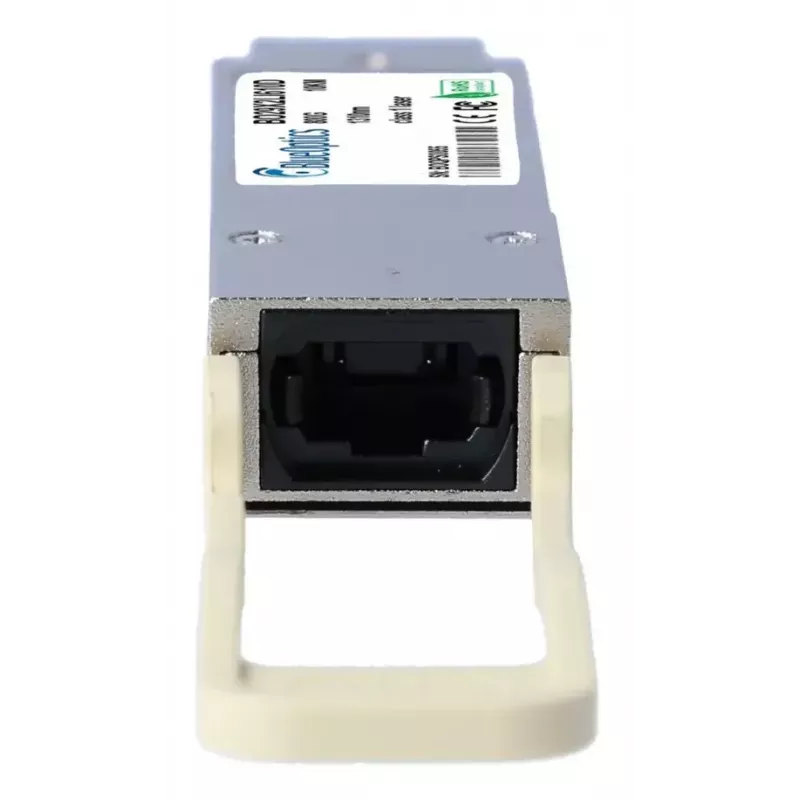

QSFP56-transceivermodule BlueOptics 980-9I20T-00V000-BO 20000 Mbit/s

The BlueOptics 980-9I20T-00V000-BO is a QSFP56 fiber optic transceiver module designed for high-speed short-reach links. It supports a maximum data transfer rate of 20000 Mbit/s and uses an MTP/MPO multi-fiber connector for multimode fiber connections. The module is finished in silver, weighs approximately 40 g, and has a calculated MTBF of 3,000,000 hours, making it suitable for demanding networking environments that require compact, high-density optics.

Advantages

This QSFP56 transceiver provides compact 200G-capable performance in a small form factor compatible with MSA standards and MTP/MPO connectivity. The transceiver supports multimode operation at 850 nm wavelengths for both transmitter and receiver, enabling reliable short-reach optical links. Low weight and standard mechanical dimensions allow easy hot-plug installation in compatible switch and router ports, while the high MTBF rating contributes to long operational availability.

Suitable for

• High-density switch-to-switch or switch-to-server links in data center racks
• Short-reach multimode fiber aggregation within wiring closets and equipment rooms
• High-speed interconnects for storage arrays and compute clusters

Key specifications

• Maximum data transfer rate: 20000 Mbit/s
• Maximum transfer distance: 100 m (multimode fiber)
• Fiber optic connector: MTP/MPO
• Optical wavelength: 850 nm (transmit and receive)
• Form factor: QSFP56 (200G-capable)
• Product colour: Silver
• Weight: 0.04 kg
• Mean time between failures (MTBF): 3,000,000 hours

How to use

Install the BlueOptics QSFP56 transceiver into a compatible QSFP56 port following the host equipment manufacturer's hot-plug procedure. Connect the MTP/MPO multimode fiber cable to the module ensuring correct polarity and secure mating of the connector. Verify link status and speed in the switch or router management interface and confirm that the port operating mode matches the intended 200G/aggregation configuration. Use appropriate fiber patching practices to maintain clean endfaces and correct alignment.

Recommendations

Use this transceiver with multimode fiber rated for short-reach 850 nm operation and with network equipment that officially supports third-party QSFP56 modules. Regularly inspect and clean MTP/MPO connector endfaces before connection, and verify that patchcord lengths and fiber types are within the specified 100 m limit to ensure reliable 200G links.
