Rack-voet Extralink Sockel 600x800 zwart metaal 600 mm 800 mm

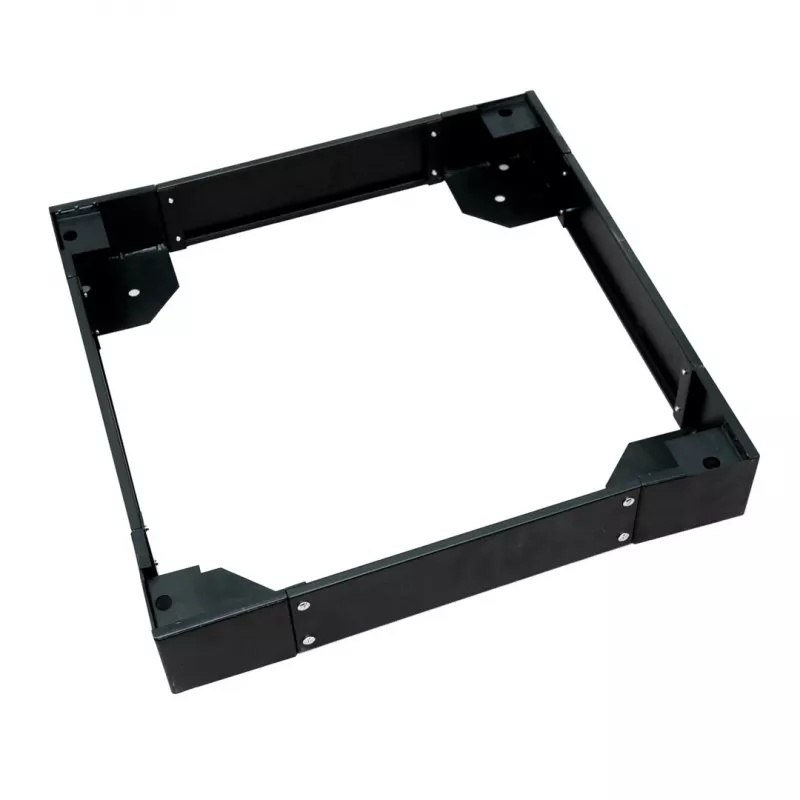

The Extralink Plinth 600x800 Black Metal is a robust metal base designed for standing network cabinets with a footprint of 600 mm by 800 mm. With a height of 100 mm and a black powder-coated finish, the plinth provides a stable, level platform that raises the cabinet slightly off the floor for easier access and improved airflow under the unit. Manufactured from cold-rolled steel, the plinth is intended to be fixed to the cabinet underside and anchored to the floor for increased stability in server rooms, telecom closets and equipment areas.

Advantages

The plinth is made from SPCC cold-rolled steel with a 2 mm material thickness and finished in RAL9004 black powder coat for durability and a uniform appearance. Its construction improves cabinet stability and protects the cabinet base from direct contact with the floor surface. The kit includes mounting hardware for easy attachment to the cabinet underside, enabling straightforward installation and a neat, professional installation.

Suitable for

• Supporting 600 x 800 mm standing network cabinets
• Server rooms, data closets and telecom equipment racks
• Floor-mounted installations requiring cabinet elevation and secure anchoring

Key specifications

• Width: 600 mm
• Depth: 800 mm
• Height: 100 mm
• Material: SPCC cold-rolled steel
• Material thickness: 2 mm
• Finish: RAL9004 black powder coat
• Included fastening: four M12 Allen screws and washers for attachment to cabinet underside

How to use

Position the plinth beneath the standing cabinet so that the cabinet footprint aligns with the plinth dimensions. Attach the plinth to the cabinet underside using the supplied M12 Allen screws and washers, tightening them to secure the connection. Once attached to the cabinet, place the assembled unit in the desired location and anchor the plinth to the floor according to the floor type and local anchoring practices to ensure full stability.

Recommendations

For safe and long-lasting installation, verify floor suitability and use appropriate anchors for concrete, tile or raised access floors. Tighten mounting hardware to recommended torque values for M12 fasteners and periodically inspect fixation points and the powder-coated finish for signs of wear or corrosion in high-humidity environments.
