Rackaccessoire EFB Elektronik 691649.1TP

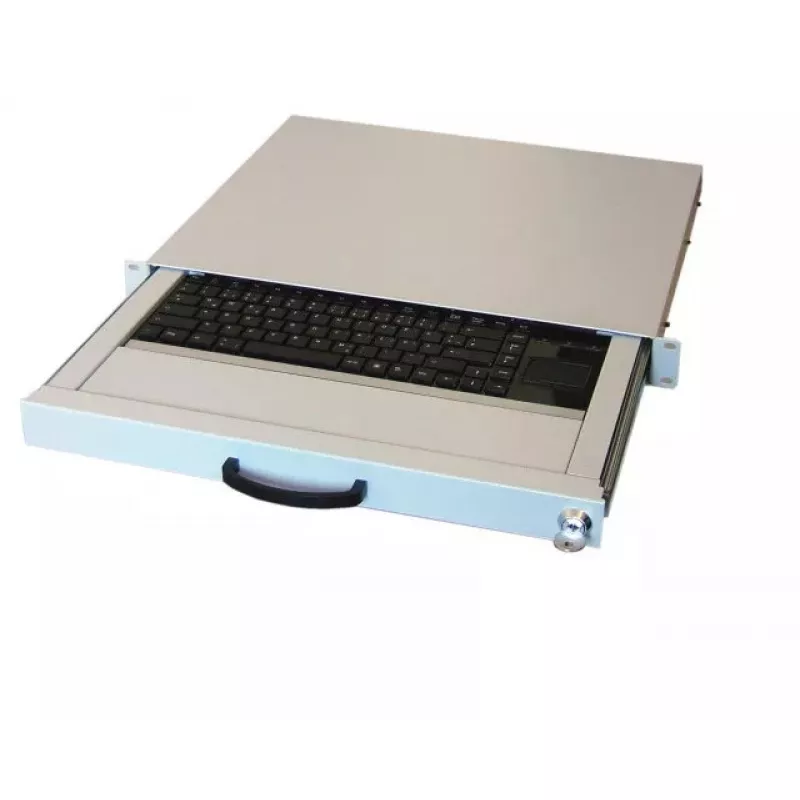

The EFB Elektronik 691649.1TP is a 1U rack accessory designed for standard 19" cabinets. It combines a ball-bearing keyboard drawer with an industrial keyboard and an integrated touchpad, all housed in a durable metal enclosure with a light grey (RAL7035) or jet black (RAL9005) paint finish. The unit connects via USB using a 2 m cable and is supplied with mounting accessories; optional rear mounting rails with screws are available. A US layout keyboard is offered as an alternative.

Advantages

This keyboard drawer provides sturdy construction with ball-bearing slides for smooth operation and a safety lock with two keys for secure storage. The industrial keyboard includes full-sized keys and Windows function keys, while the integrated touchpad with two mouse buttons eliminates the need for a separate mouse. The metal handle and solid housing ensure reliable use in server and industrial environments.

Suitable for

• Control and administration of servers in 19" racks
• Industrial workstations where space-saving input devices are required
• Network cabinets in data centers and server rooms

Key specifications

• Brand: EFB Elektronik
• Model / MPN: 691649.1TP
• EAN: 4049759138110
• Form factor: 1U rack-mounted keyboard drawer
• Dimensions (W x D): 482 mm x 410 mm
• Connection: USB, cable length 2 m
• Keyboard: industrial layout with full-size keys and Windows function keys; optional US layout
• Pointing device: integrated touchpad with 2 mouse keys
• Construction: ball-bearing slides; safety lock with two keys; solid metal handle
• Finish: RAL7035 light grey or RAL9005 jet black
• Includes: mounting accessories; optional 2 x mounting rail with screws for rear profile fixing

How to use

Install the drawer into a standard 19" cabinet using the supplied mounting accessories, aligning the 482 mm width with the rack rails and securing it at the front. Connect the USB cable (2 m) to a free USB port on the server or KVM switch. Slide the drawer out when you need to operate the keyboard and touchpad; use the safety lock to secure the drawer when not in use. If additional rear fixation is required, fit the optional mounting rails and screws to the rear profiles.

Recommendations

For reliable operation, mount the unit on stable rack rails and avoid overloading the drawer. Use the safety lock during transport or maintenance to prevent accidental opening. Select the US keyboard layout option only if required by your system or user preference.
