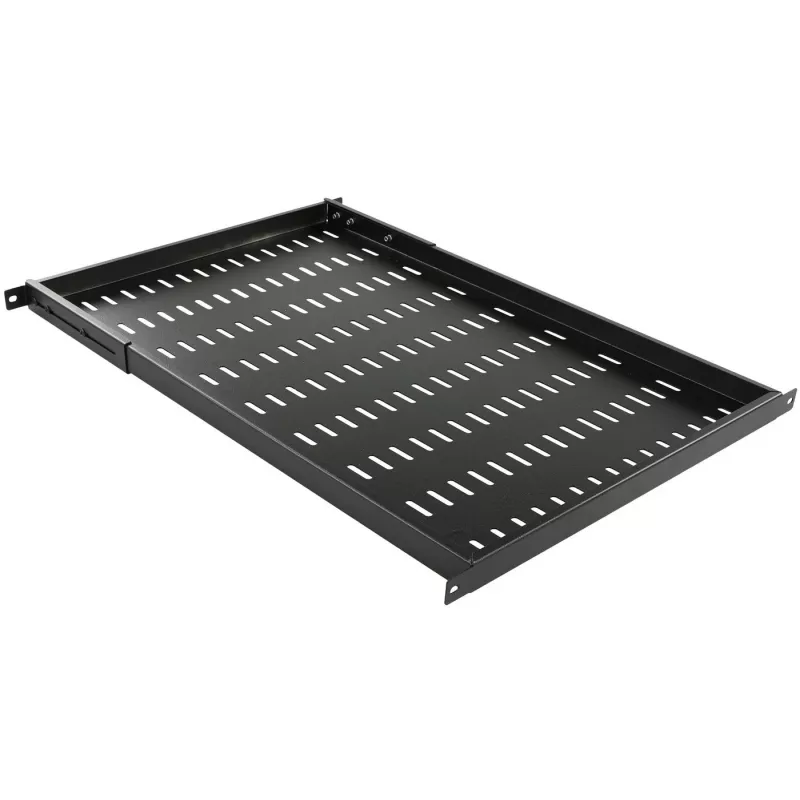

Rackaccessoire Lanview RAS805BL zwart 1U 50kg

Rack space is precious, and not every piece of equipment comes with its own mounting ears. The Lanview RAS805BL solves that by giving you a solid, ventilated platform to support small servers, switches, power supplies, or any non-rackmountable device inside a standard 19" cabinet. Its 1U height keeps your rack density high while the 50 kg static load rating means it can handle serious hardware.

Who is it for

IT technicians and network administrators who need a reliable shelf for equipment that cannot be mounted directly to rack rails. It is also ideal for organizing backup devices, external storage, or test units in server rooms, telecom closets, and enterprise data centers.

Main features

• Adjustable depth with rear side brackets for flexible placement
• Ventilation holes promote airflow around mounted devices
• High 50 kg maximum static load capacity
• Four connection points for secure front and rear mounting
• Powder-coated black finish (RAL 9005) blends with standard racks

Specifications

• Form factor: 1U shelf for 19" cabinets
• Dimensions: W 485 x D 670 x H 25 mm
• Maximum static load: 50 kg
• Material: Steel
• Mounting type: Fixed, 4-point
• Rack compatibility: EIA-310-D
• Included accessories: Mounting hardware (screws, cage nuts)

Tips

Install the shelf at the desired height using the cabinet's mounting points, then adjust the rear brackets to match the rack depth. Center heavy equipment over the shelf and distribute weight evenly to stay within the 50 kg limit. Use the ventilation holes to align devices so airflow through the cabinet is not blocked.
