Rackconsole VALUE 26.99.0160 1U, 17 inch (43,2 cm) LCD 1280x1024, USB-toetsenbord/muis, zwart

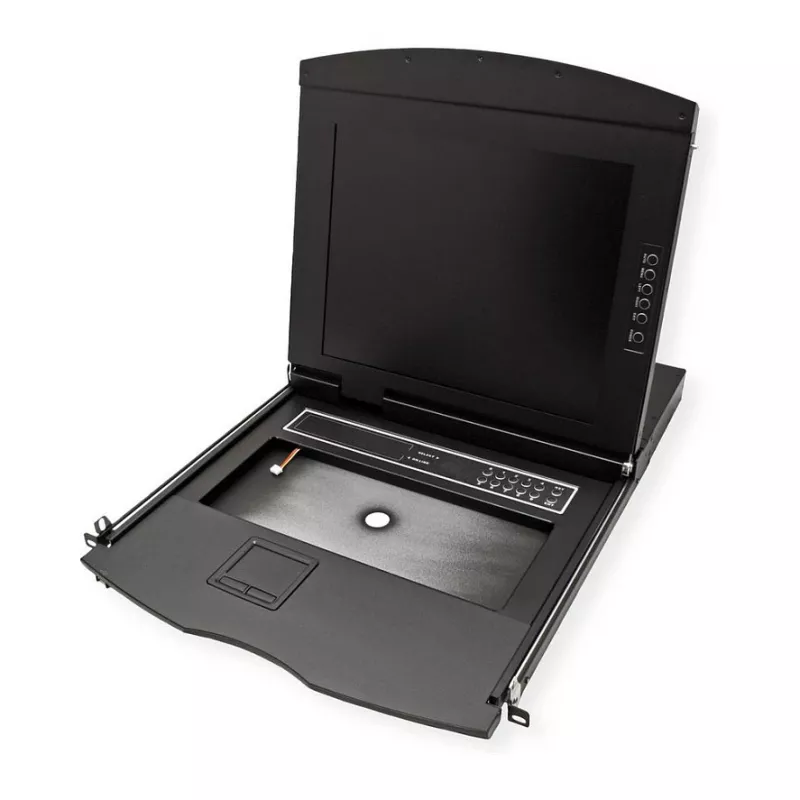

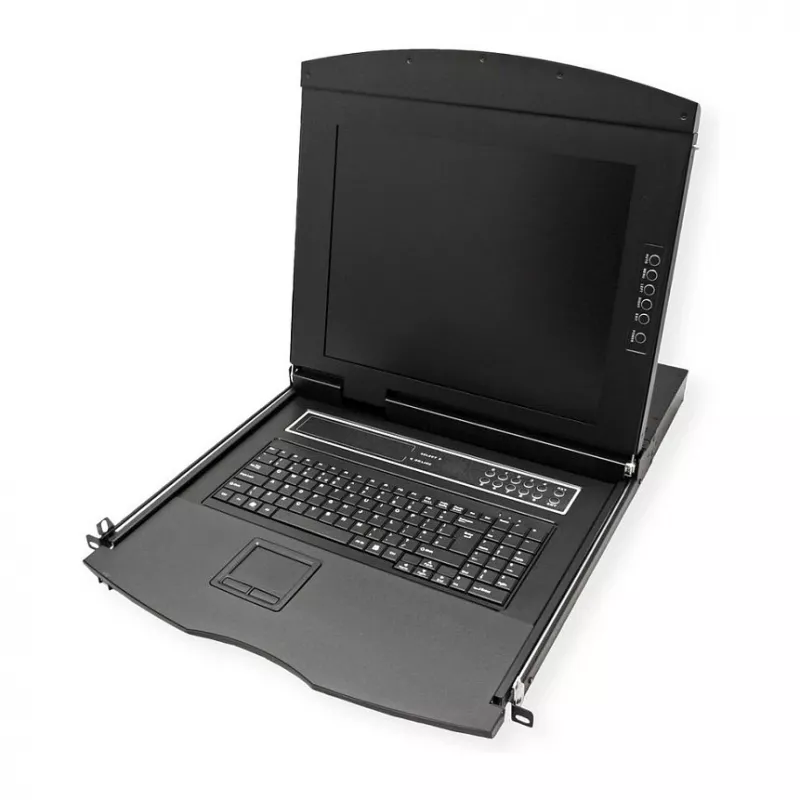

VALUE 26.99.0160 is a 1U rack console integrating a 17" (43.2 cm) TFT LCD with 1280 x 1024 resolution, a durable integrated keyboard and a touchpad-style mouse interface. The unit is designed for installation in a standard 19" server rack to provide compact local control and maintenance of multiple servers. The console housing is black, the display is protected by tempered glass and the product is supplied with necessary cables and mounting accessories for straightforward installation.

Advantages

The console combines a high-resolution 17" LCD, an integrated keyboard and a touchpad in a single 1U slide-out enclosure, saving rack space while providing a complete local access solution. Built-in OSD (On Screen Display) simplifies on-site configuration and screen adjustments. The device supports USB keyboard and mouse connections and includes KVM cabling and power accessories for fast deployment in server cabinets.

Suitable for

• Local server maintenance and troubleshooting in data centres and server rooms
• IT rack management where space is limited and a compact console is required
• Environments requiring temporary or permanent local access to up to 8 connected PCs/servers

Key specifications

• Display: active 17" (43.2 cm) TFT LCD, 1280 x 1024 pixels
• Brightness: 250 cd/m²; Contrast ratio: 1000:1
• Form factor: 1U rack-mountable slide-out console for 19" racks
• Input support: integrated keyboard and touchpad; USB keyboard and USB mouse ports supported
• Protection: tempered glass panel over the display
• Control: On Screen Display (OSD) for configuration and PC selection
• Cable and power support: supplied with KVM cable(s), USB cable, AC power cord and power supply
• Multi-host capability: supports control of up to 8 PCs/servers via included KVM cabling

How to use

Mount the console into a standard 19" rack using the supplied rails and brackets, then connect the included KVM and USB cables to the target servers and the console. Connect the AC power supply and power cord, then use the integrated keyboard, touchpad and OSD menu to select and control connected servers. The OSD and hotkeys allow easy switching between connected systems. The console supports hot-plugging of target PCs so devices can be connected or removed without shutting down the system.

Recommendations

For reliable operation, install the console in a properly ventilated rack space and route cables to avoid strain. Use the supplied KVM cables for guaranteed compatibility and ensure the USB interfaces on connected servers are enabled. When installing in multi-rack environments, label KVM cables and connectors to simplify identification and maintenance.
