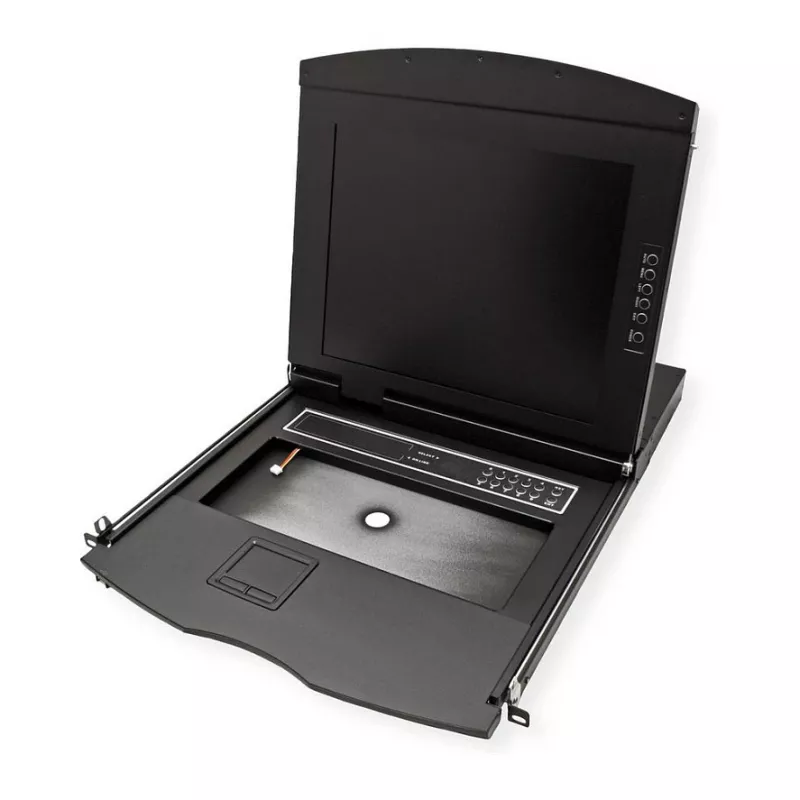

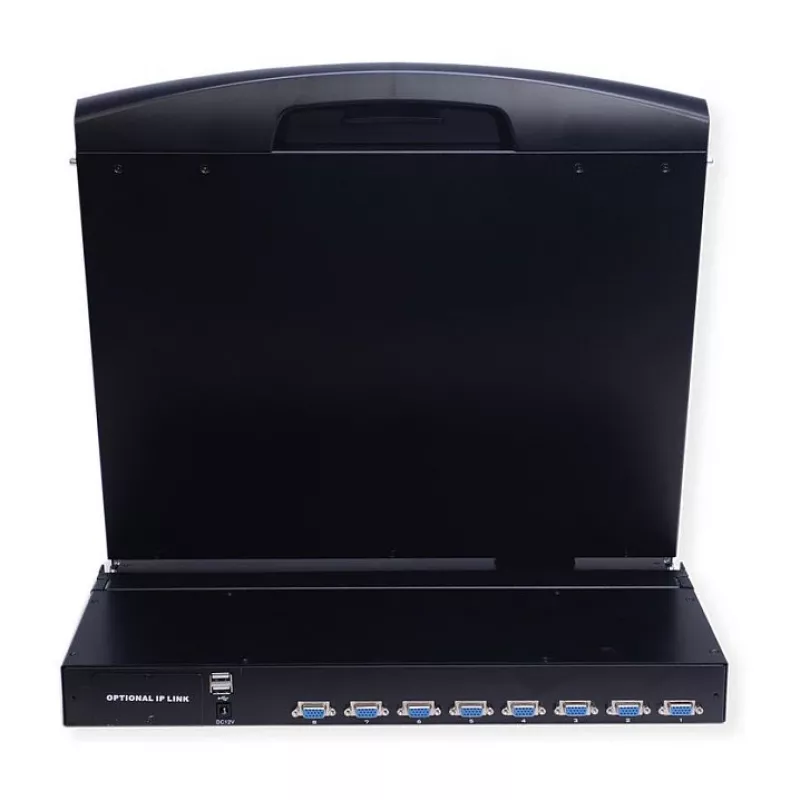

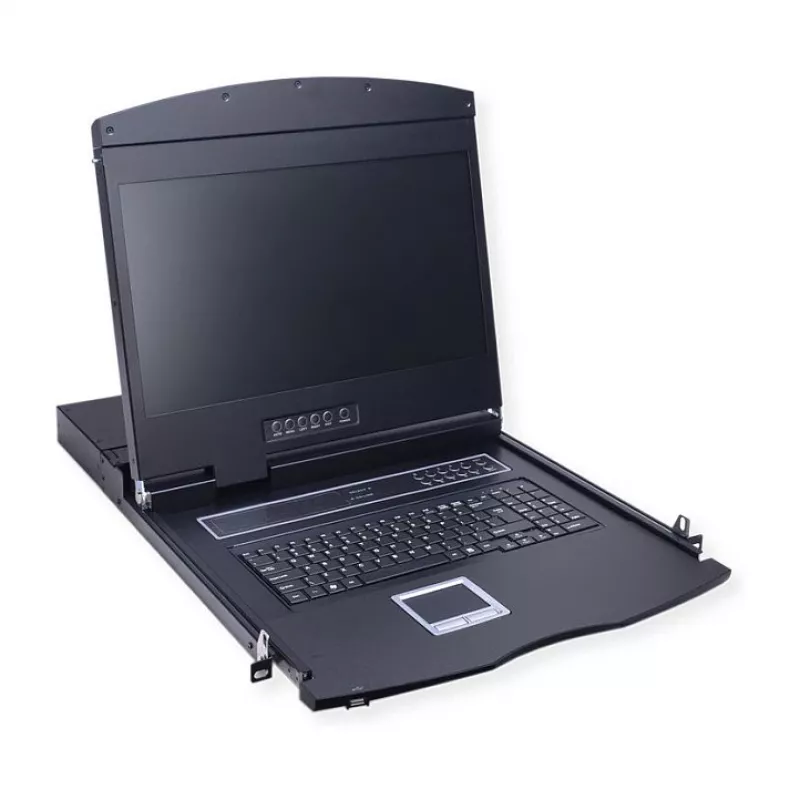

Rackconsole VALUE 26.99.0162 — 17 inch (43,2 cm) 1280x1024 1U, USB-toetsenbord/muis, zwart

VALUE 26.99.0162 is a 1U rack console that integrates a 17" (43.2 cm) LCD with 1280×1024 resolution, a durable keyboard and an integrated touchpad-style mouse interface. Designed for installation in a 19" server rack, the unit combines monitor, keyboard and mouse functionality with an 8-port KVM switch to provide direct access and control of multiple servers from a single console. The front panel is protected by tempered glass and the display includes an On Screen Display (OSD) for easy menu navigation. Supplied accessories include mounting rails and brackets, KVM cables, USB and power cables, keys and documentation.

Advantages

The console delivers a compact, space-saving 1U design suitable for standard server cabinets and data centers. With a 43.2 cm TFT panel, 1280×1024 resolution and 250 cd/m² brightness, it provides clear, high-contrast images for server management tasks. Integrated KVM functionality supports control of up to eight systems from a single keyboard, mouse and display without requiring additional software. Connections for USB keyboard and USB mouse increase compatibility with modern servers and reduce the need for adapters. The single-rail mount simplifies installation and maintenance.

Suitable for

• Server cabinet access and on-site server management
• Data center maintenance and rack-level troubleshooting
• Multi-server control where space is limited
• IT rooms and network closets requiring centralized console access

Key specifications

• Display size: 17" (43.2 cm) TFT
• Native resolution: 1280 × 1024 pixels
• Brightness: 250 cd/m²
• Contrast ratio: 1000:1
• Form factor: 1U, 19" rack-mountable
• Keyboard: integrated durable keyboard (English UK layout supplied)
• Pointing device: integrated touchpad-style mouse
• Interfaces: USB keyboard and USB mouse support; VGA video input
• KVM switching: supports up to 8 connected computers
• Front protection: tempered glass panel

How to use

Mount the console into a standard 19" rack using the supplied rails and brackets following the quick installation guide. Connect the included KVM cables between the console and target servers, and attach the USB and power cables to the appropriate ports. Use the On Screen Display (OSD), push buttons or hotkeys to select the target server. The console supports hot-plugging so servers can be added or removed without powering down the KVM or connected systems. Adjust display settings through the OSD for optimal viewing.

Recommendations

Place the console at an accessible rack height to avoid repetitive bending during frequent use. Ensure adequate ventilation in the rack and route cables to prevent strain on connectors. Use the supplied KVM cables for reliable signal transmission and keep the OSD settings at a comfortable brightness and contrast for long-term monitoring tasks.
