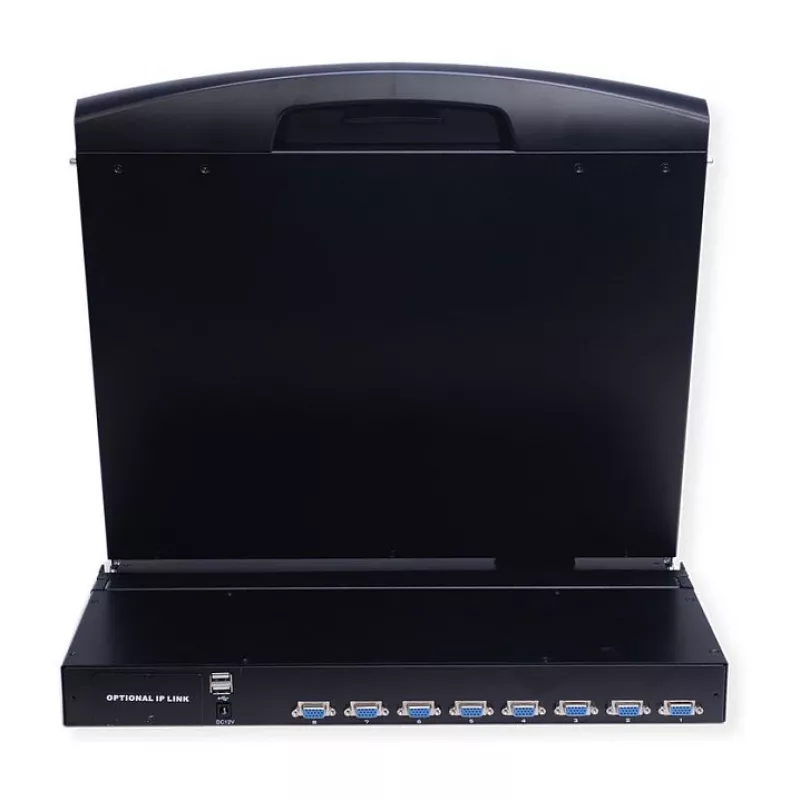

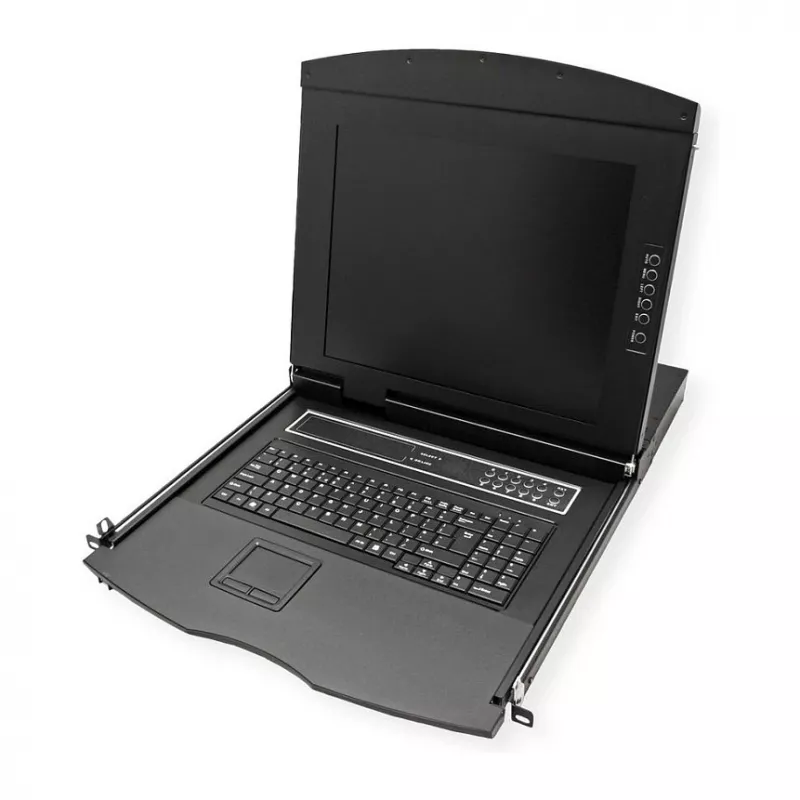

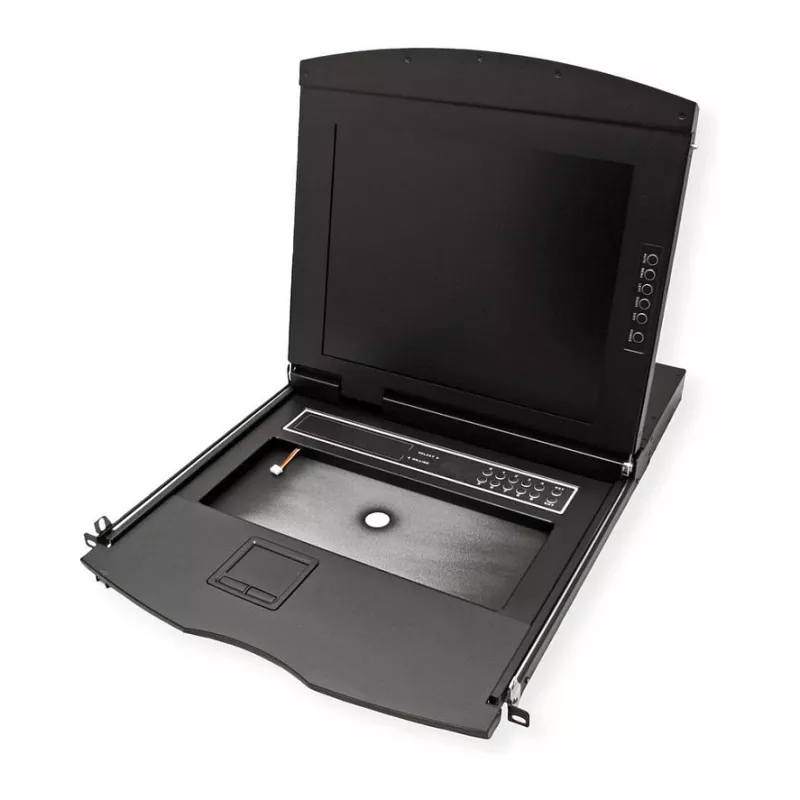

Rackconsole VALUE 26.99.0163 — 43,2 cm (17 inch) 1280×1024, USB-toetsenbord en -muis, 1U, zwart

VALUE 26.99.0163 is a 1U rack console integrating a 17" (43.2 cm) TFT display, a built-in keyboard and touchpad, and an 8-port KVM switch in a single 1U housing for 19" racks. The display supports a maximum resolution of 1280×1024 pixels, a contrast ratio of 1000:1 and a brightness of 250 cd/m². The unit provides USB ports for keyboard and mouse connectivity and includes the necessary supply and data cables for straightforward installation in server cabinets and IT racks.

Advantages

The console saves rack space by combining monitor, keyboard and pointing device with a KVM switch in a compact 1U form factor. Its tempered glass-protected panel and durable keyboard with integrated touchpad provide a robust local management interface. On Screen Display (OSD) enables easy selection and configuration of connected systems without additional software. Supplied rails, mounting accessories and cables simplify installation and reduce setup time.

Suitable for

• Server rooms and data centres requiring local console access
• IT cabinets and network racks where space efficiency is important
• Maintenance, troubleshooting and on-site administration of up to 8 servers
• Environments needing a durable, rack-mounted human interface for occasional local use

Key specifications

• Display: 43.2 cm (17") TFT, active matrix
• Maximum resolution: 1280 × 1024 pixels
• Brightness: 250 cd/m²
• Contrast ratio: 1000:1
• Form factor: 1U rack-mountable for 19" racks
• Integrated input devices: keyboard with touchpad
• Keyboard and mouse connection: USB
• Panel protection: tempered glass
• Supports up to 8 connected PCs via built-in KVM switch
• Interfaces supported for hosts: USB and PS/2 (adapter/cables included)

How to use

Install the console into a 19" server rack using the supplied rails and mounting brackets, securing the unit at the 1U position. Connect the console to servers using the supplied KVM cables and to a power source with the included power supply and cord. Use the On Screen Display (OSD), front-panel buttons or hot-keys to select and switch between connected computers. The USB keyboard and mouse ports are plug-and-play; no additional drivers are required for basic operation.

Recommendations

Position the console at a comfortable height in the rack to allow convenient keyboard and touchpad use. Ensure adequate ventilation around the unit and avoid placing heavy objects on the front panel even though it is protected by tempered glass. For multi-user or continuous-console requirements, pair this unit with remote management tools; for routine server maintenance and troubleshooting, use the OSD and hot-keys to switch systems quickly.
