Rackkast Lanview RSL20U61BL 20U zwart 600 kg IP20

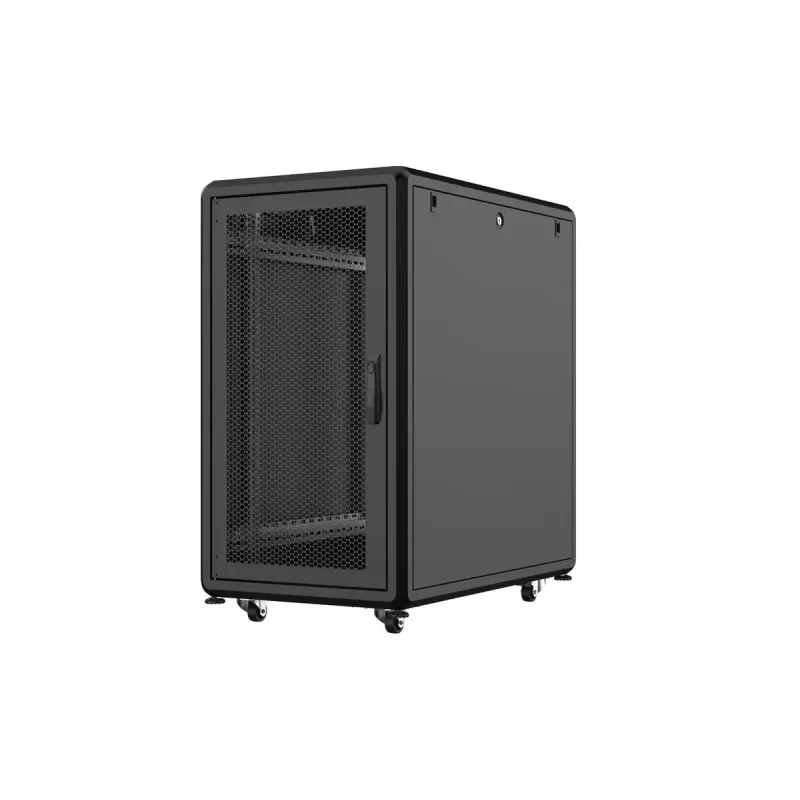

Lanview RSL20U61BL is a free-standing 20U rack cabinet designed for indoor network and server installations. With external dimensions of 600 x 1000 x 1075 mm and a load capacity up to 600 kg, this black cabinet complies with IP20 for indoor use and provides a robust, modular enclosure for cabling and equipment organization.

Advantages

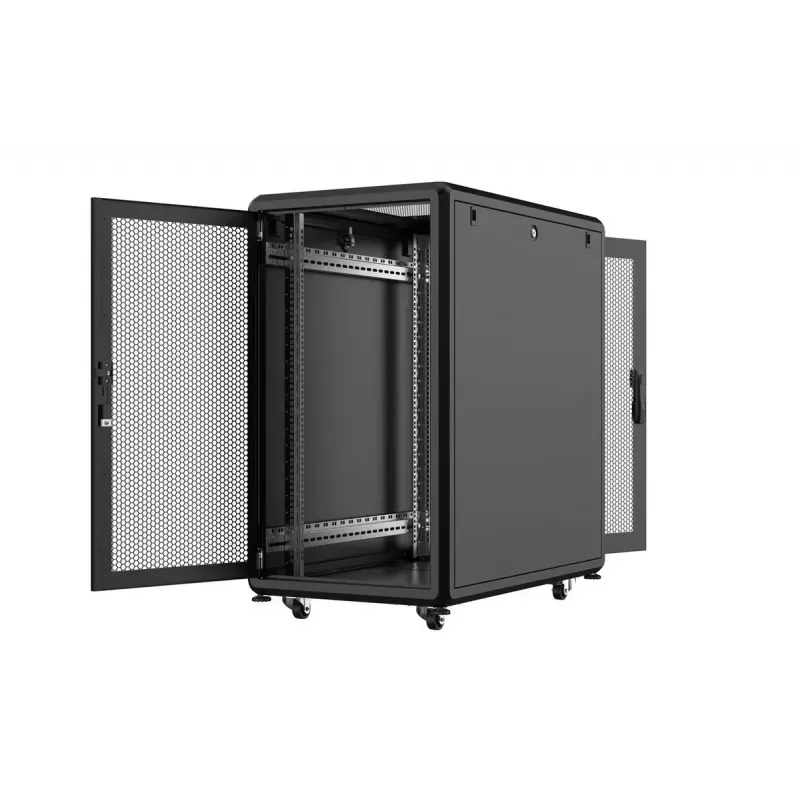

The cabinet has a strong, durable construction with removable side and rear panels and a tool-free front door that can be re-hinged for left or right opening. Brushed 3U cable entries at the top and bottom, a raised roof for passive ventilation, integrated provisions for vertical cable managers and rubber-edged sliding cable entry on the base simplify cable routing while protecting cables from abrasion and dust. Front doors include full-size, 4 mm tempered smoke glass with a handle-locking mechanism; rear and side panels use barrel locks for controlled access.

Suitable for

• Small to medium server rooms and network closets
• Cabinetized switch, patch panel and router installations
• Indoor IT equipment that requires organised cable management and physical security

Key specifications

• Model: Lanview RSL20U61BL
• Rack capacity: 20U
• External dimensions (W x D x H): 600 x 1000 x 1075 mm
• Height: 1039 mm (equipment rail height reference)
• Maximum load: 600 kg
• Ingress protection: IP20 (indoor use)
• Product colour: Black
• Weight: 54 kg
• Front door: split metal frame with 4 mm tempered smoke glass, handle lock
• Rear door and side panels: removable metal panels with barrel locks

How to use

Place the cabinet on a level indoor surface and secure it if required by site regulations. Assemble or disassemble panels using simple tools where needed; the front door can be removed or re-hinged without tools. Install mounting rails and fit equipment into the 20U space using standard 19" rack mounting. Route cables through the 3U brushed entries at top and bottom or via the rubber-edged sliding entry in the base. Use the integrated provisions for vertical cable manager modules and the Tire-Up style side brackets to secure cable bundles.

Recommendations

For optimal airflow keep a gap between equipment and the raised roof for passive ventilation; use the barrel locks on rear and side panels to restrict access and maintain organized cable paths with the supplied cable entry features. Check weight distribution and secure heavy equipment to lower rack units to preserve stability.
