Rackplaat Rittal SZ 2563.200 lichtgrijs kunststof 447x149 mm

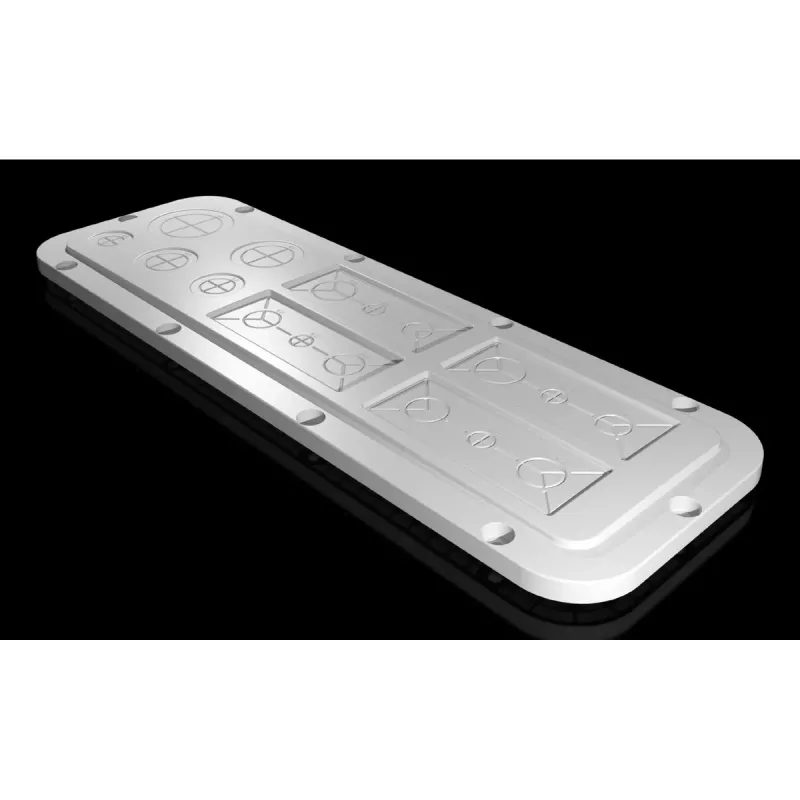

The Rittal SZ 2563.200 rack plate is a light grey plastic panel sized 447 × 149 mm, designed to organize and support equipment inside server and network racks. It helps improve internal arrangement of components and can contribute to overall rack stability while remaining lightweight (approx. 420 g).

Advantages

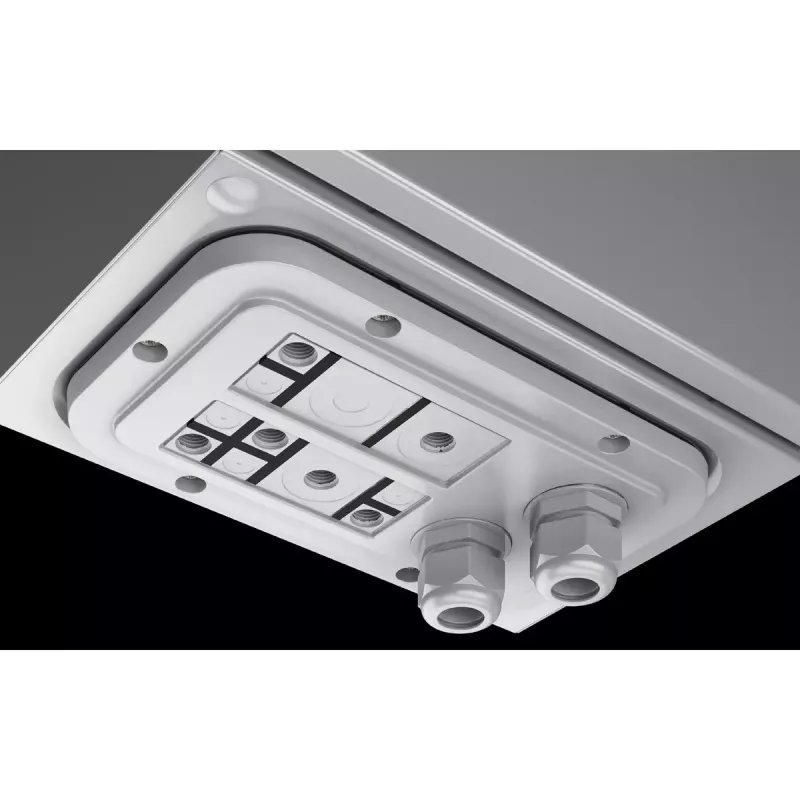

The plate includes pre-scored knockouts for cable glands that can be removed by simply breaking through the plastic, allowing quick cable routing. Additional rectangular cut-outs and a reinforcement frame enable direct modular installation of cable glands and compatible accessories. Constructed from durable plastic, the panel is corrosion-resistant and easy to handle.

Suitable for

Key specifications

How to use

Install the rack plate at the desired position inside the cabinet according to the rack’s mounting scheme. For cable routing, press or knock out the pre-scored plastic sections at the designated knockouts to create openings for cable glands. Fit compatible modular cable glands into the rectangular cut-outs and secure them using the reinforcement frame as required. Handle the panel carefully during installation to avoid deforming the mounting points.

Recommendations

Use compatible Rittal or industry-standard cable glands sized for the cut-outs. Verify mounting alignment with your rack’s mounting pattern before final fastening and avoid excessive force when breaking out knockouts to prevent cracking beyond intended sections.
