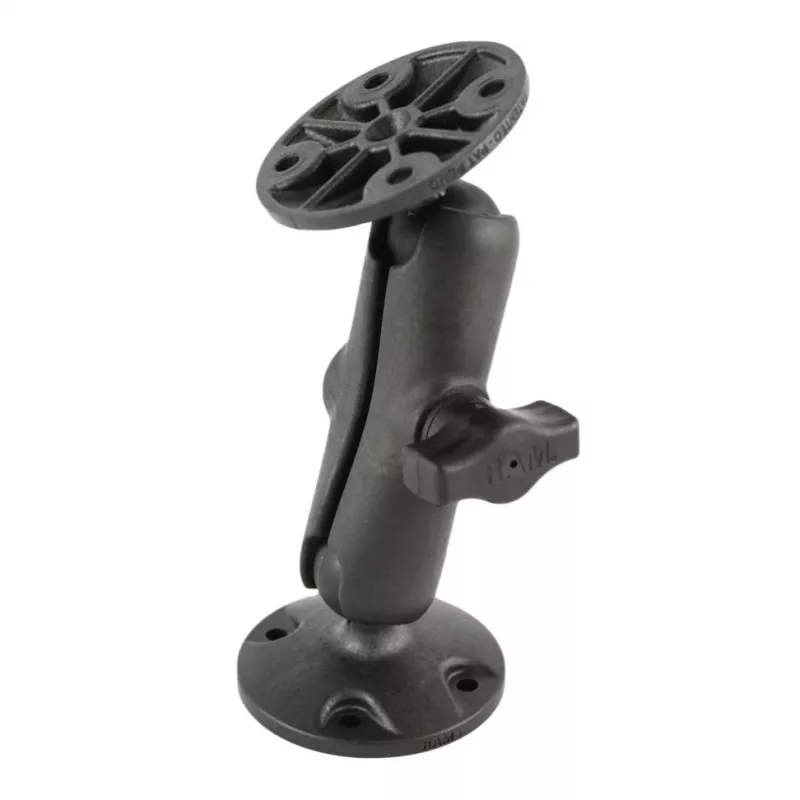

RAM Mounts B-Size dubbele kogelarm met twee ronde basissen montageset

On a fishing boat, a captain needs to keep a chartplotter visible while navigating rough waters. This RAM Mounts kit provides a secure foundation: a double socket arm and two round bases that can be attached to a flat surface and a device cradle or holder. The 1-inch ball system allows for quick adjustment and a firm hold, keeping electronics stable even in demanding conditions.

Key specifications

• Brand: RAM Mounts
• Model: RAP-B-101U
• MPN: RAP-B-101U
• EAN: 793442801013
• Product type: Mounting kit
• Mounting system: RAM Mounts B-Size (1" ball)
• Material: High strength composite
• Ball size: 1 inch (B size)
• Arm type: Double socket arm
• Arm length (socket-to-socket): 3.68 inches (93.47 mm)
• Arm length (overall): 6.25 inches (158.75 mm)
• Base type: Round base
• Base diameter: 2.5 inches (63.5 mm)
• Number of bases included: 2
• Base model number: RAP-B-202U
• Arm model number: RAP-B-200U
• Mounting pattern (bases): 4-Hole AMPS pattern
• Colour: Black
• Load capacity (dynamic): Up to 2 lbs (0.9 kg)
• Application: Universal device mounting (GPS, phones, tablets, cameras, etc.)
• Adjustability: Dual ball and socket adjustment points
• Assembly required: Yes (minor assembly)

Why choose it

The RAM Mounts B-Size system is renowned for its durability and versatility. The high-strength composite construction resists vibration and shock, while the double socket arm provides two points of articulation for near-infinite positioning. With two round bases included, you can create a custom mounting solution for a wide range of devices and surfaces.

Ideal use cases

• Marine electronics: chartplotters, fish finders, and marine radios on boats
• Vehicle mounts: GPS units, smartphones, and tablets in cars, trucks, and ATVs
• Industrial and commercial: mounting cameras, sensors, and small monitors
• Recreational: securing action cameras or handheld GPS devices on bicycles or motorcycles

Good to know

This kit includes the arm and two bases only; a device cradle or holder is required to complete the mount. The bases feature a 4-hole AMPS pattern for secure attachment to flat surfaces. Minor assembly is required, and all necessary hardware is typically included. The RAM Mounts B-Size components are interchangeable with other B-Size accessories, allowing for future expansion.
