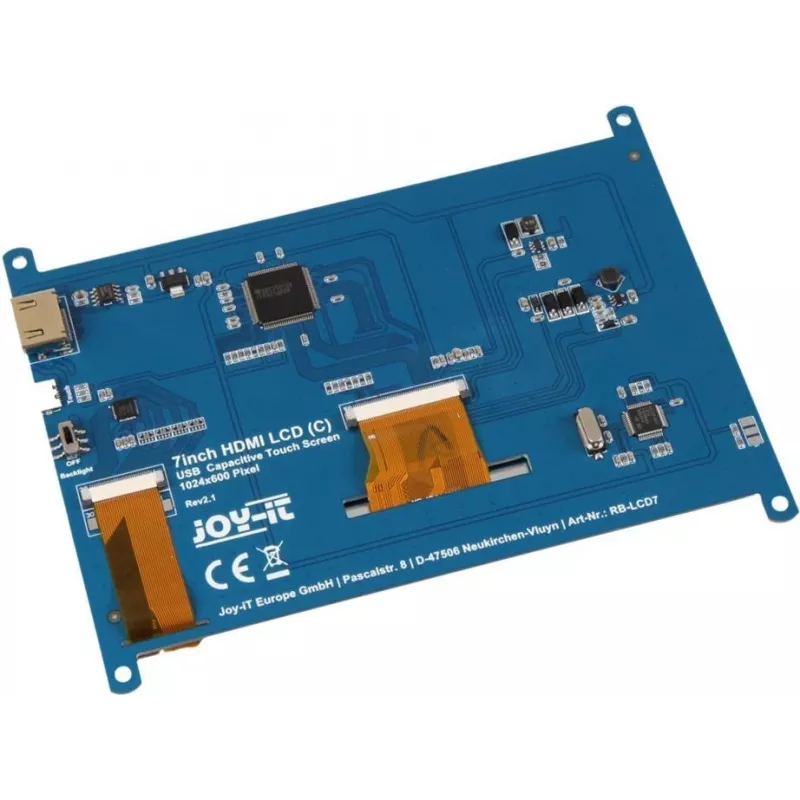

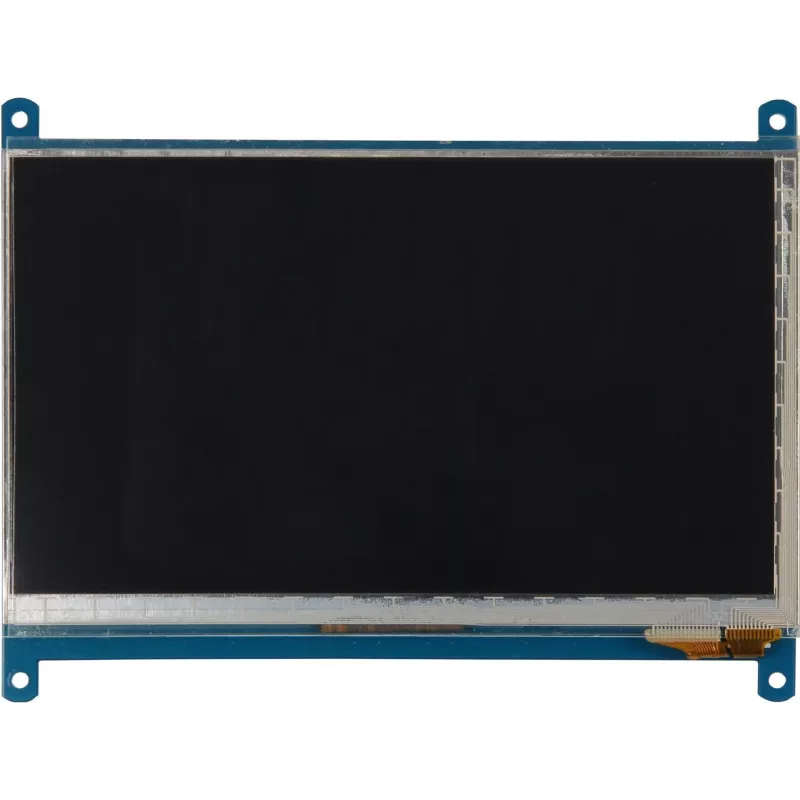

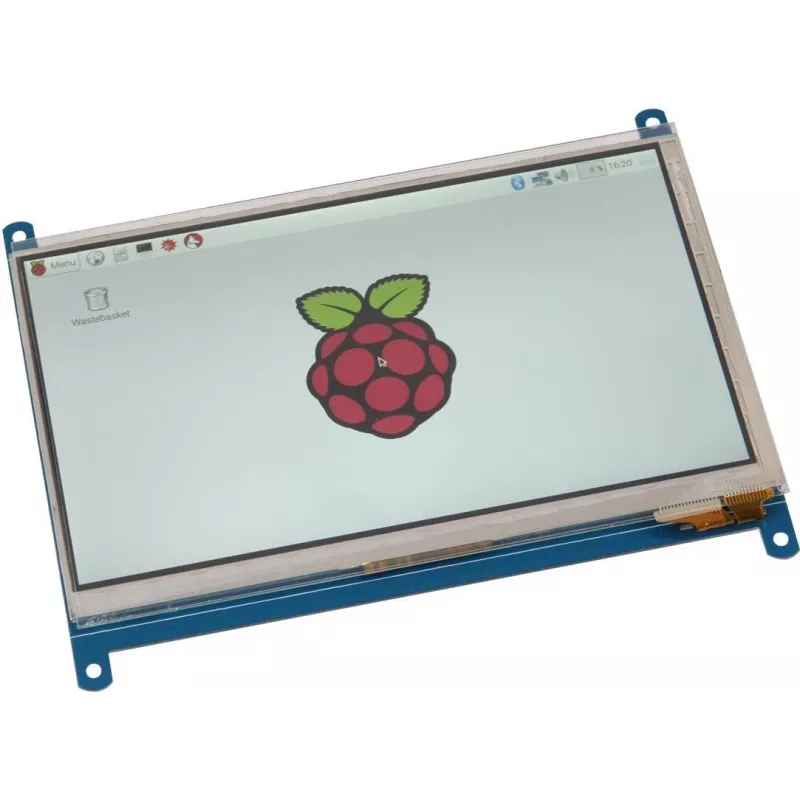

Raspberry Pi 7 inch touch IPS-display (RB-LCD-7-2)

The Raspberry Pi 7 Inch Touch IPS Display (RB-LCD-7-2) is a high-quality 7-inch capacitive touchscreen monitor designed specifically for Raspberry Pi and other single-board computers. With a resolution of 1024x600 pixels and IPS technology, it delivers vibrant colors and wide viewing angles of 170 degrees. The display connects via HDMI for video and USB for touch input, making it easy to set up with any Raspberry Pi model featuring HDMI output. It supports 5-point multi-touch and is compatible with Raspberry Pi OS, Ubuntu, Kali, and Windows 10 IoT.

Advantages

This display offers a perfect balance of size and clarity for portable projects, media centers, or desktop applications. The capacitive touch interface provides smooth and responsive interaction, while the IPS panel ensures consistent colors from any angle. Its compact 7-inch form factor makes it ideal for embedded systems, kiosks, and DIY electronics.

Suitable for

• Raspberry Pi 4, 3B+, 3B, 2B, B+ and other HDMI-capable SBCs
• Portable gaming consoles and media players
• Home automation control panels
• Educational projects and prototyping
• Digital signage and information displays

Key specifications

• Display Size: 7 inch (17.8 cm) diagonal
• Panel Type: IPS (In-Plane Switching)
• Resolution: 1024 x 600 pixels
• Touchscreen: Capacitive, 5-point multi-touch
• Video Input: HDMI
• Touch Interface: USB
• Brightness: 350 cd/m²
• Contrast Ratio: 800:1
• Viewing Angle: 170° (H/V)
• Aspect Ratio: 16:9
• Color Depth: 16.7 million colors
• Backlight: LED
• Power Supply: 5V DC via USB or GPIO
• Included Accessories: HDMI cable, USB cable, mounting hardware

Recommendations

For optimal performance, ensure your Raspberry Pi is powered with a sufficient 5V/2.5A power supply. The display can be used as a secondary monitor or as the primary display for headless setups. Mounting hardware is included for easy integration into enclosures.
