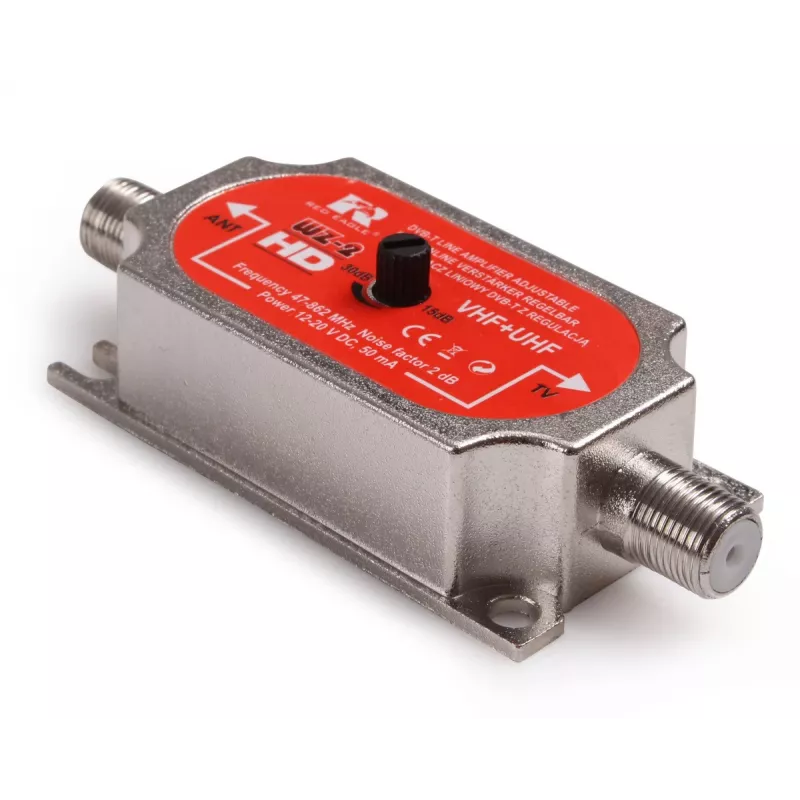

Red Eagle WZ-2 lineaire versterker 20 dB 47-694 MHz F-stekker binnen DVB-T/T2

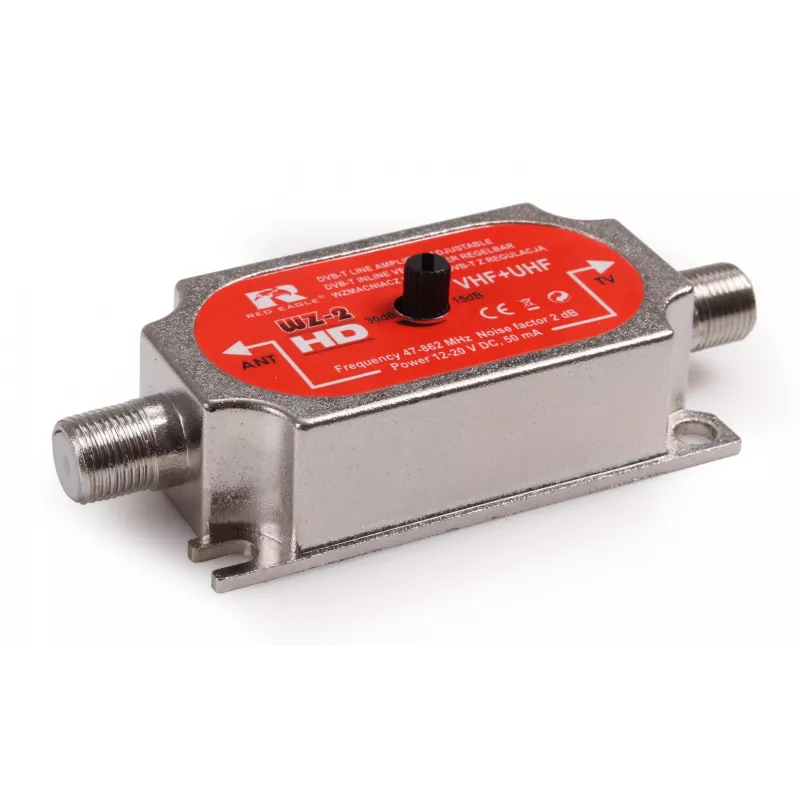

The Red Eagle WZ-2 is a high-performance linear amplifier designed to boost DVB-T/T2 signals in the VHF/UHF frequency range (47-694 MHz). With a gain of 20 dB and a low noise figure of less than 3 dB, it ensures reliable signal amplification for indoor use. The amplifier features an integrated LTE/5G filter for the 700 MHz band, minimizing interference from mobile networks. Its compact metal housing and F-type connectors make it easy to integrate into existing coaxial cable systems.

Advantages

Enhances weak TV signals for clearer reception; low noise figure preserves signal quality; LTE/5G filter reduces interference; simple installation with F-type connectors; durable metal housing.

Suitable for

• Indoor DVB-T/T2 antenna systems
• Improving signal strength in areas with weak reception
• Single-input, single-output setups

Key specifications

• Frequency Range: 47-694 MHz (VHF/UHF)
• Gain: 20 dB
• Noise Figure: < 3 dB
• Max Output Level: 100 dBµV (IMD3=60dB)
• Input/Output Impedance: 75 Ohm
• Connector Type: F-type
• Power Supply: 12V DC via coaxial cable
• Current Consumption: 50 mA
• Integrated Filter: LTE/5G (700 MHz band)
• Application: Indoor
• Housing Material: Metal
• Operating Temperature: -20 to +50 °C

Recommendations

For optimal performance, use with a compatible 12V DC power inserter and ensure proper cable connections. Ideal for single-room or small-area signal boosting.
