Reely RE-7842807 12V DC tandwielmotor 1:53

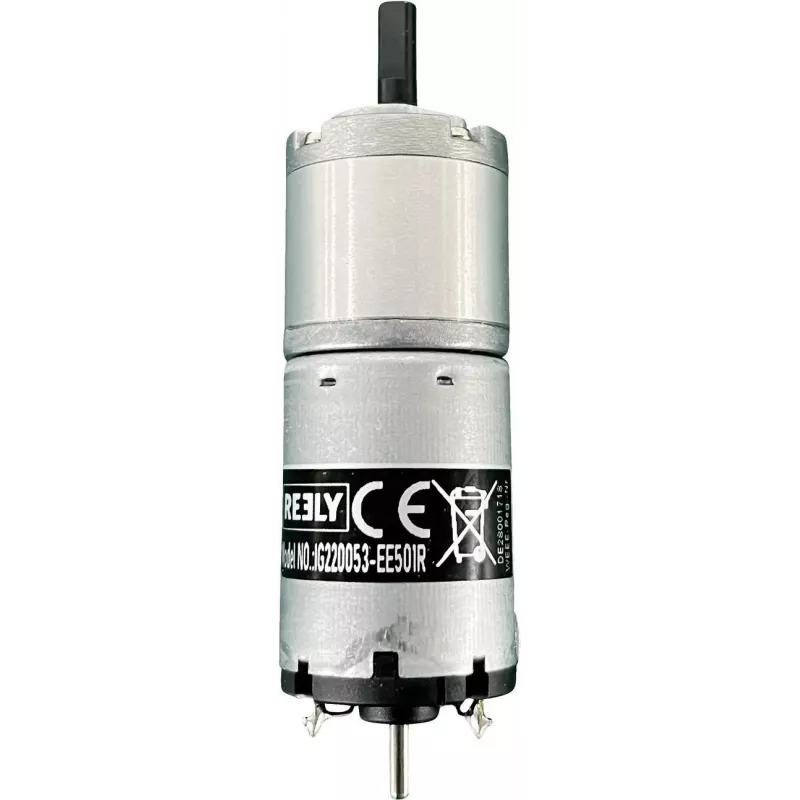

This Reely RE-7842807 is a 12V DC geared motor with a 1:53 reduction ratio, delivering high torque for demanding applications. Its compact design integrates a brushed DC motor with a gearbox, providing a no-load speed of 180 RPM and a rated torque of 0.5 Nm.

Advantages

The 1:53 gear ratio significantly increases torque while reducing speed, making it suitable for robotics, automation, and model-building projects. The D-cut shaft ensures secure coupling with wheels, gears, or other mechanical components. With M3 mounting holes on a 25mm bolt circle, installation is straightforward.

Suitable for

• Robotics and automation projects
• Model vehicles and mechanical drives
• DIY applications requiring low-speed, high-torque output

Key specifications

• Operating voltage: 12 V DC
• Gear ratio: 1:53
• No-load speed: 180 RPM
• Rated torque: 0.5 Nm
• Stall torque: 2.5 Nm
• Shaft diameter: 6 mm
• Shaft length: 15 mm
• Motor type: Brushed DC

Recommendations

For projects where space is limited but torque is critical, this geared motor offers a reliable solution. Pair it with a suitable motor driver to control speed and direction.
