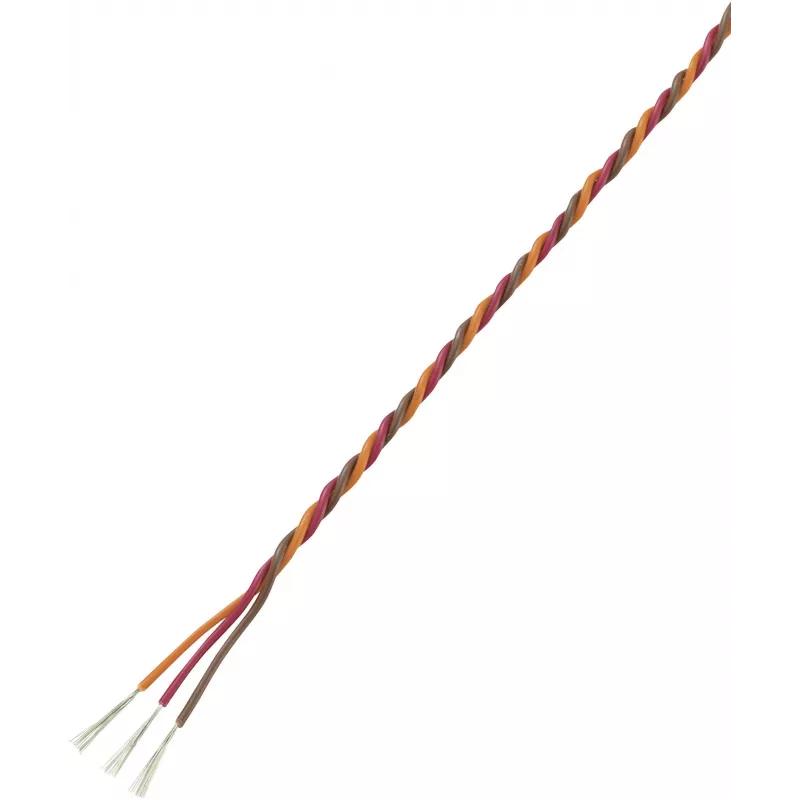

Reely servokabel 3 x 0,30 mm² 5 m SH1998C138C

Three-core servo cable with 0.30 mm² stranded tinned copper conductors, 5 metres long, rated for 300 V and 80 °C. High-flexibility PVC insulation suits RC models, robotics and general electronics.

Overview

This Reely servo cable provides a reliable connection for servos and other low-voltage components. The multi-core design uses three stranded tinned copper conductors, each with a cross-section of 0.30 mm², ensuring good conductivity and resistance to corrosion. The PVC insulation offers flexibility and protection, making the cable easy to route in tight spaces.

What stands out

• Three conductors for signal, power and ground
• Stranded tinned copper for flexibility and corrosion resistance
• Rated voltage 300 V, temperature up to 80 °C
• Supplied as a 5-metre bulk length, no connectors

Technical details

• Number of cores: 3
• Conductor cross-section: 0.30 mm² per core
• Conductor material: stranded tinned copper
• Insulation: PVC
• Rated voltage: 300 V
• Rated temperature: 80 °C
• Length: 5 m
• Outer diameter: 1.8–2.2 mm
• Shielding: unshielded
• Connector: none (bulk wire)

Our verdict

A dependable servo cable for hobbyists and makers who need a flexible, multi-core wire for custom installations.
