Reinigings- en droogapparaat Elegoo Mercury Plus 3.0 (model 50.101.059300)

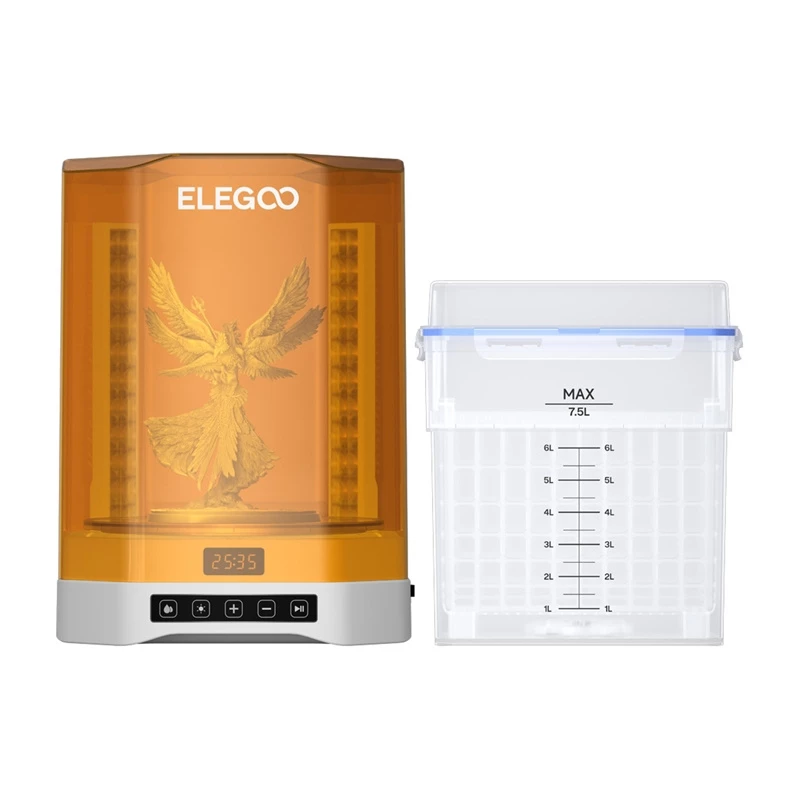

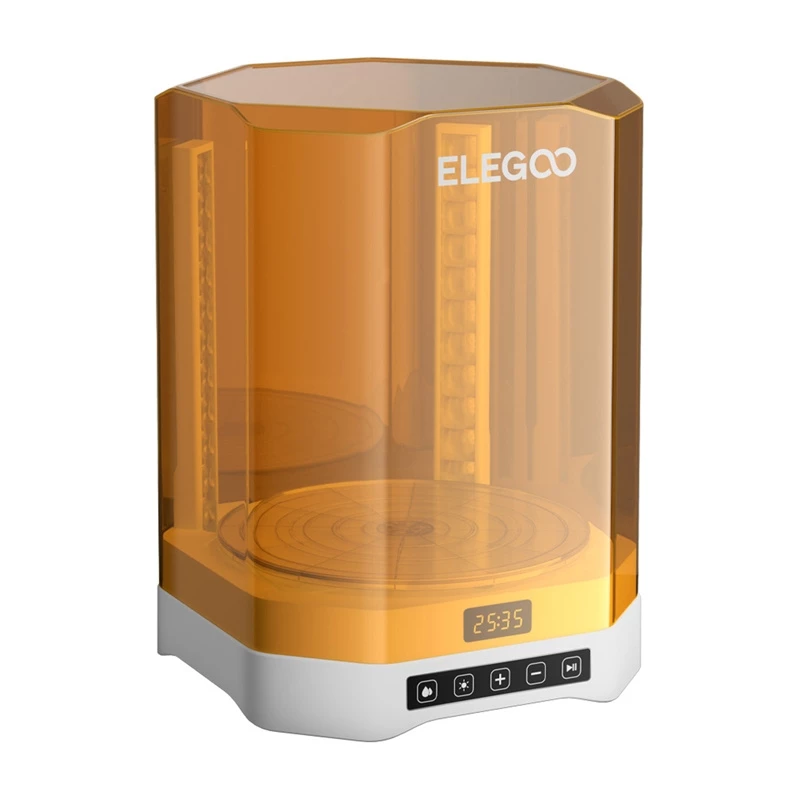

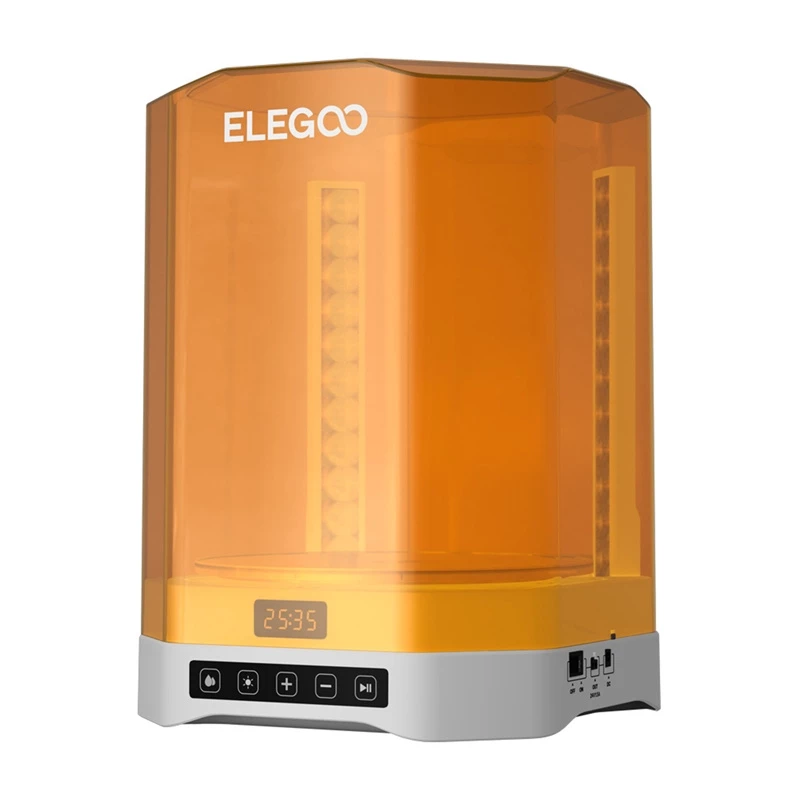

Elegoo Mercury Plus 3.0 is a combined cleaning and drying device designed for post-processing resin 3D prints. The unit integrates a wash chamber and a curing/drying module in a single compact housing to streamline rinsing and UV post-curing workflows. Its enlarged IPA reservoir and expanded curing area accommodate larger parts or multiple prints, while features such as a rotating platform, Fresnel lens and reflective lower surface improve evenness of UV exposure for consistent drying results.

Advantages

The integrated two-in-one design saves workspace by allowing the wash container to be stored inside the curing chamber. A touchscreen control panel with a digital display provides straightforward selection of cleaning or curing modes and time settings. Increased IPA capacity and a larger working volume support bigger prints; the device also includes a corrosion-resistant basket and a suspended wash option to suit different part geometries. Mechanical elements such as POM bearings ensure smooth turbine rotation for efficient agitation, and a sealing design reduces the risk of fluid leakage. The yellow cover blocks up to 99.9% of UV radiation for safer handling.

Suitable for

• Post-processing of resin models from LCD, DLP and MSLA printers
• Workshops and makerspaces performing small-batch production
• Detail finishing before painting or assembly
• Cleaning and curing multiple small parts simultaneously

Key specifications

• Washing time range: 0–30 minutes
• Curing time range: 0–30 minutes
• Rated power: 48 W
• Power supply: 100–240 V, 50/60 Hz input; 24 V, 2 A output
• Maximum washable model size (with platform): 214 × 135 × 180 mm (L × W × H)
• Maximum washable model size (without platform): 230 × 135 × 260 mm (L × W × H)
• Maximum curing area: Ø250 × 290 mm
• Device dimensions: 302.5 × 302.5 × 412.5 mm (L × W × H)

How to use

Place the printed part on the platform or into the corrosion-resistant basket depending on its size and shape, then fill the IPA container as required. Use the touchscreen to select washing or curing mode and set the desired time within the available 0–30 minute ranges. For washing, start the agitation to remove uncured resin; following rinsing, transfer the part into the curing chamber or store the wash container inside the curing module and start the 360° UV curing cycle. Monitor progress on the digital display and stop the process if necessary.

Recommendations

Use isopropyl alcohol of suitable purity for effective rinsing and replace or filter the IPA regularly to maintain cleaning performance. Securely close the yellow cover during UV curing and follow safety precautions for handling alcohol and uncured resin. Allow parts to cool and ventilate the area after processing. For delicate models, choose the suspended wash mode to avoid contact damage.
